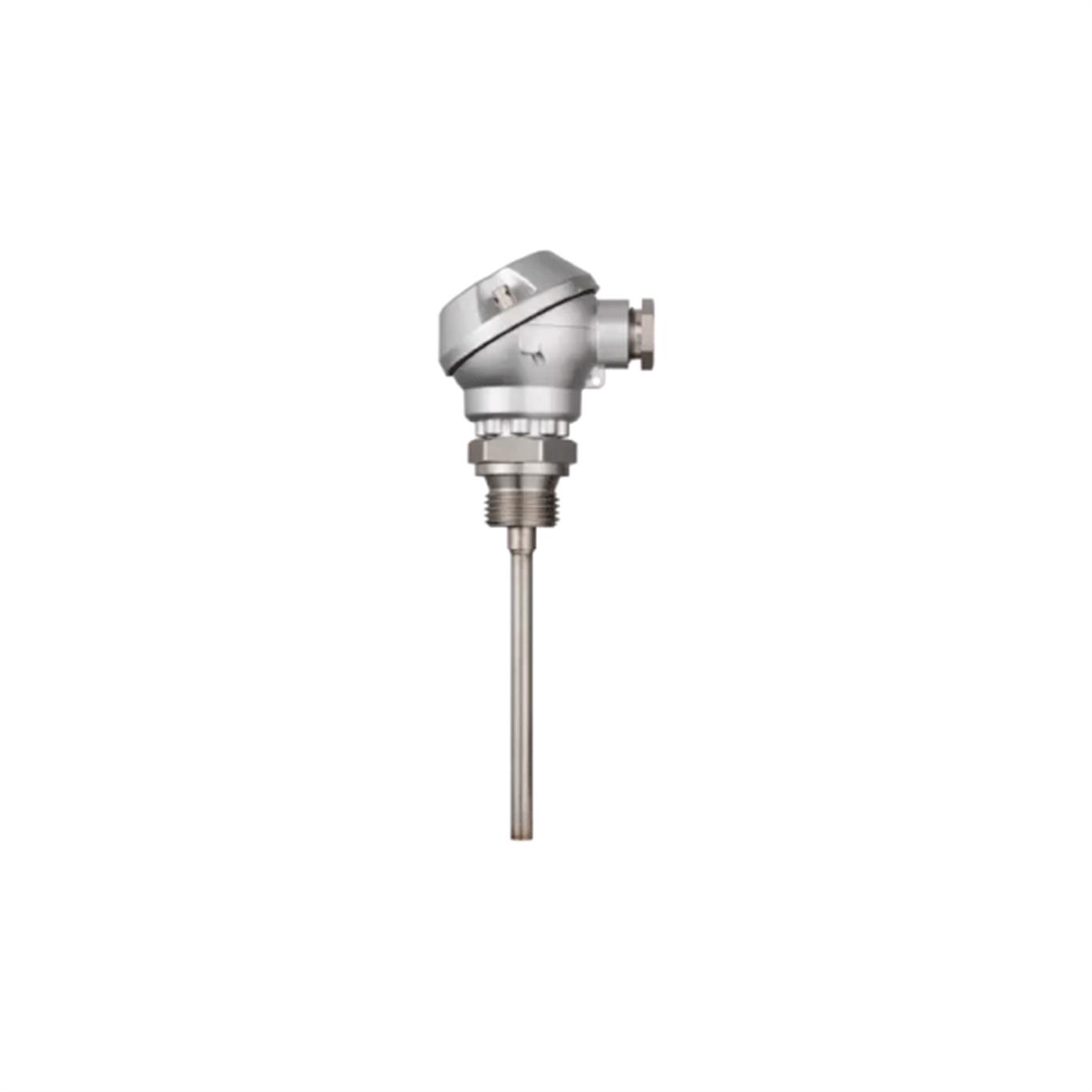

Screw-in RTD temperature probe 902030
With terminal head form J
Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.
 |
 |
 |
|
Single/double
RTD temperature probe |
Three-wire and
four-wire circuit available |
Transmitter
available |
GENERAL TECHNICAL DATA |
| Protection type | IP65 |
| Protection fitting | Stainless steel 1.4571 |
| Process connection | Thread |
| Option | Head transmitter, three-wire or four-wire circuit, Pt500 or Pt1000 |
| Operating temperature | -50 to +400 °C |
| Special features | Fast measurements in air, spring-mounted screw connection |
| Areas of application | Mechanical engineering, thermostat baths, gearbox construction, meat processing industry, air-conditioning and refrigeration technology, heating and oven construction, and apparatus engineering |
| Measuring circuits | 1/2 |
| Sensor | Pt100, Pt500, or Pt1000 |
| Approvals | Metrological registration, SIL, PL |
| Connection | Head |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
|
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
