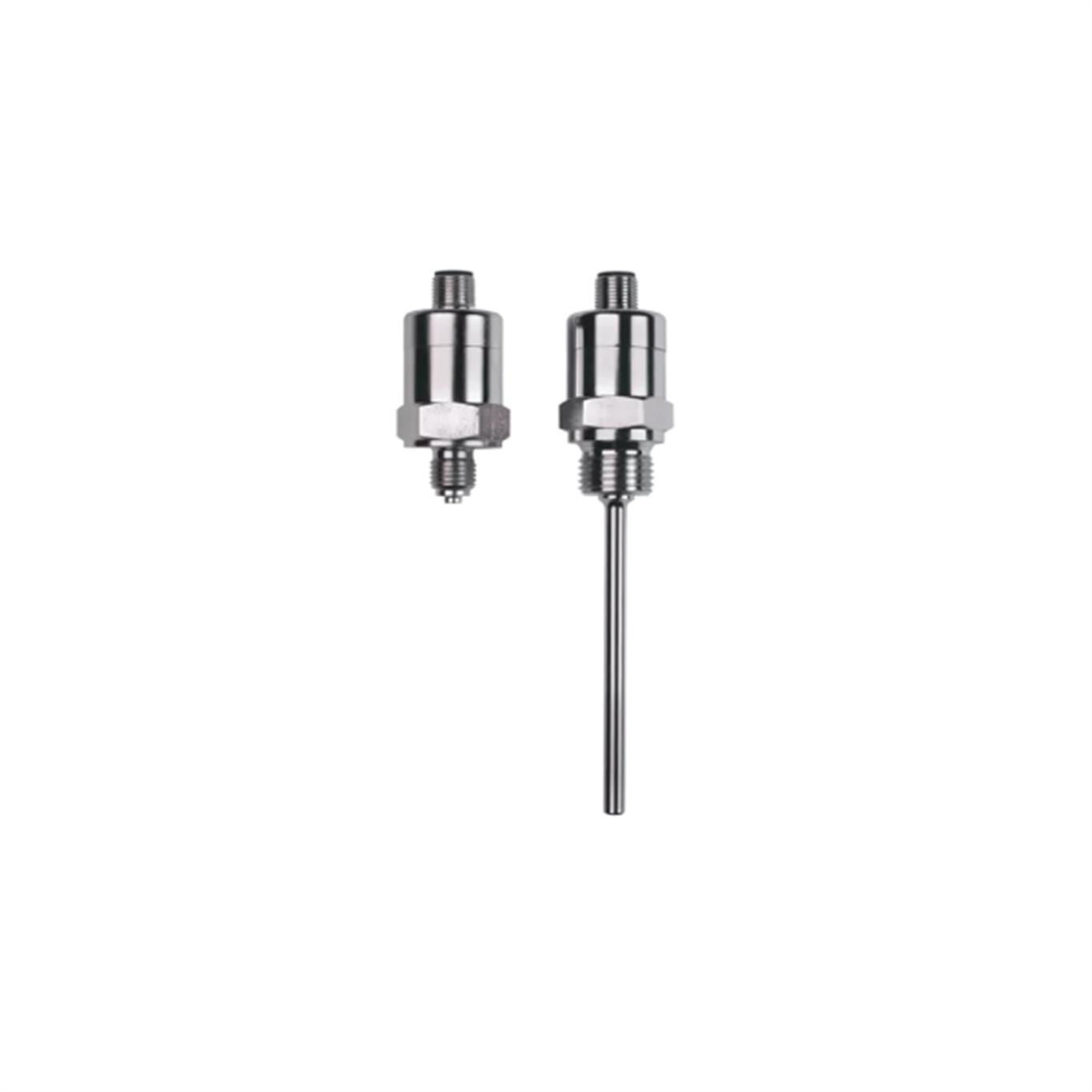

JUMO CANtrans T
RTD temperature probe with CANopen output
RTD temperature probes are predominantly used for temperature measurement in liquids and gases. Areas of application include medical technology, mechanical engineering, drive technology, commercial vehicles, and railroad systems.
 |
 |
 |
|
Vibration-resistant
construction |
Limit value monitoring
function |
Single/double
RTD temperature probe |
GENERAL TECHNICAL DATA |
| Features | Very high resolution possible (millikelvin scale) |
| Connection | M12 connector |
| Sensor | Pt1000 |
| Operating temperature | -50 to +450 °C |
| Areas of application | Woodworking machines, drying plants, baking ovens, smelting and rolling works |
| Process connection | Thread |
| Special features | Extension tube |
| Option | Transmitter |
| Features | Setting via customary CANopen software tools |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
