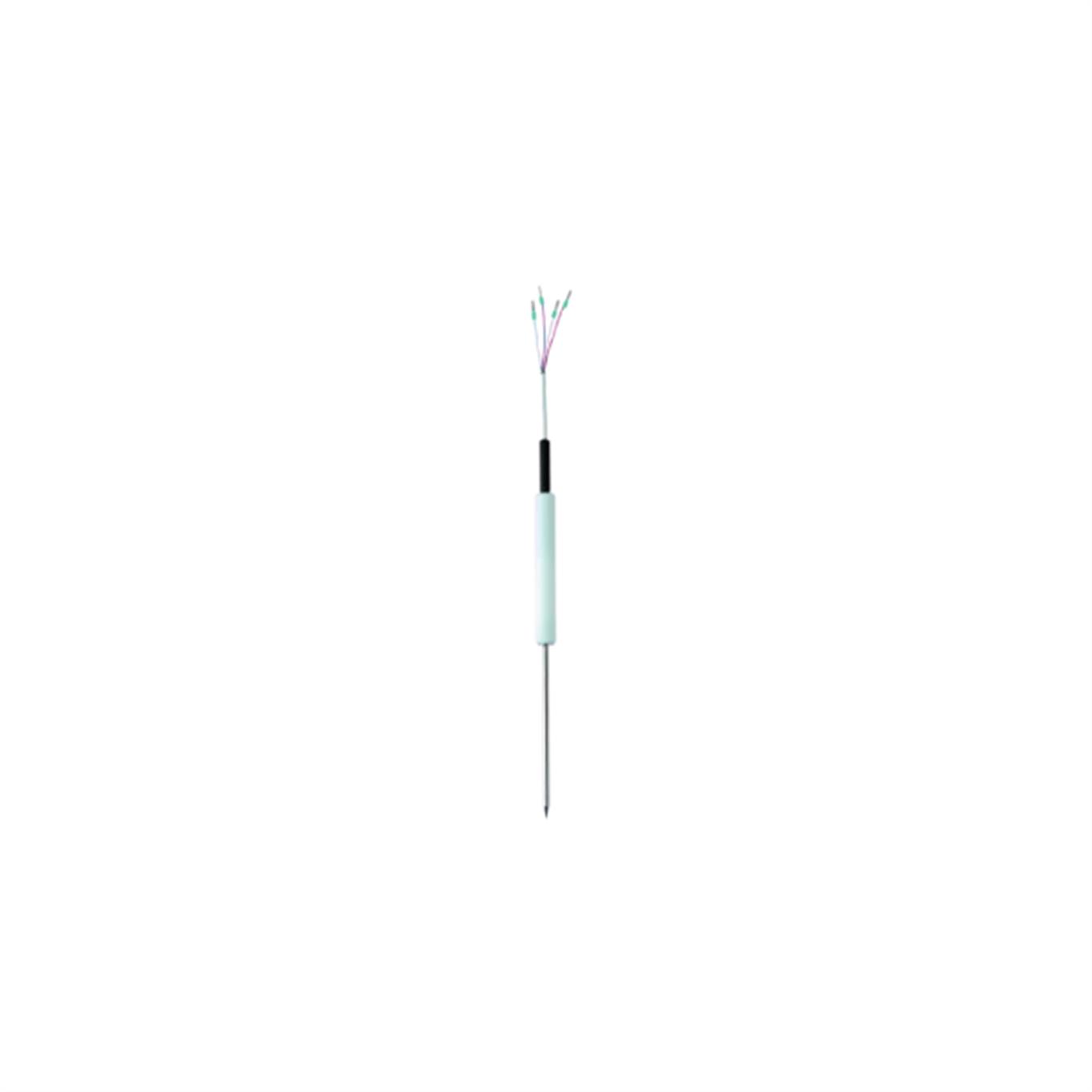

JUMO FOODtemp 901350
Food insertion thermocouples
Due to their special construction, these robust, steam-tight food insertion thermocouples are especially suited to cooking, boiling, and baking processes in all food processing and food preservation applications. The stainless steel probe tube is available with a concentric or oblique probe tip.
 |
 |
 |
|
Steam-tight
|
High mechanical strength
|
Multiple measuring points
|
GENERAL TECHNICAL DATA |
| Connection | Cable ends stripped bare; alternatively available with ferrules, plug-in sleeves, or multi-pole plug connection |
| Compensating cable | PTFE |
| Handle | PTFE, PEEK (oil and acid resistant) |
| Protection tube | Stainless steel 1.4571 |
| Protection tube end | Concentric, angled at approx. 25°; oblique, angled at 45° |
| Measuring insert | NiCr-Ni "K", DIN EN 60584 |
| Protection type | IP67 |
| Protection type | Steam-tight, high degree of mechanical strength, multiple measuring points |
| Areas of application | Cooking, boiling, and baking processes in all areas of food processing and food preservation |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
