Platinum-chip temperature sensors PCW-M-AuNi
With connection wires according to DIN EN IEC 60751

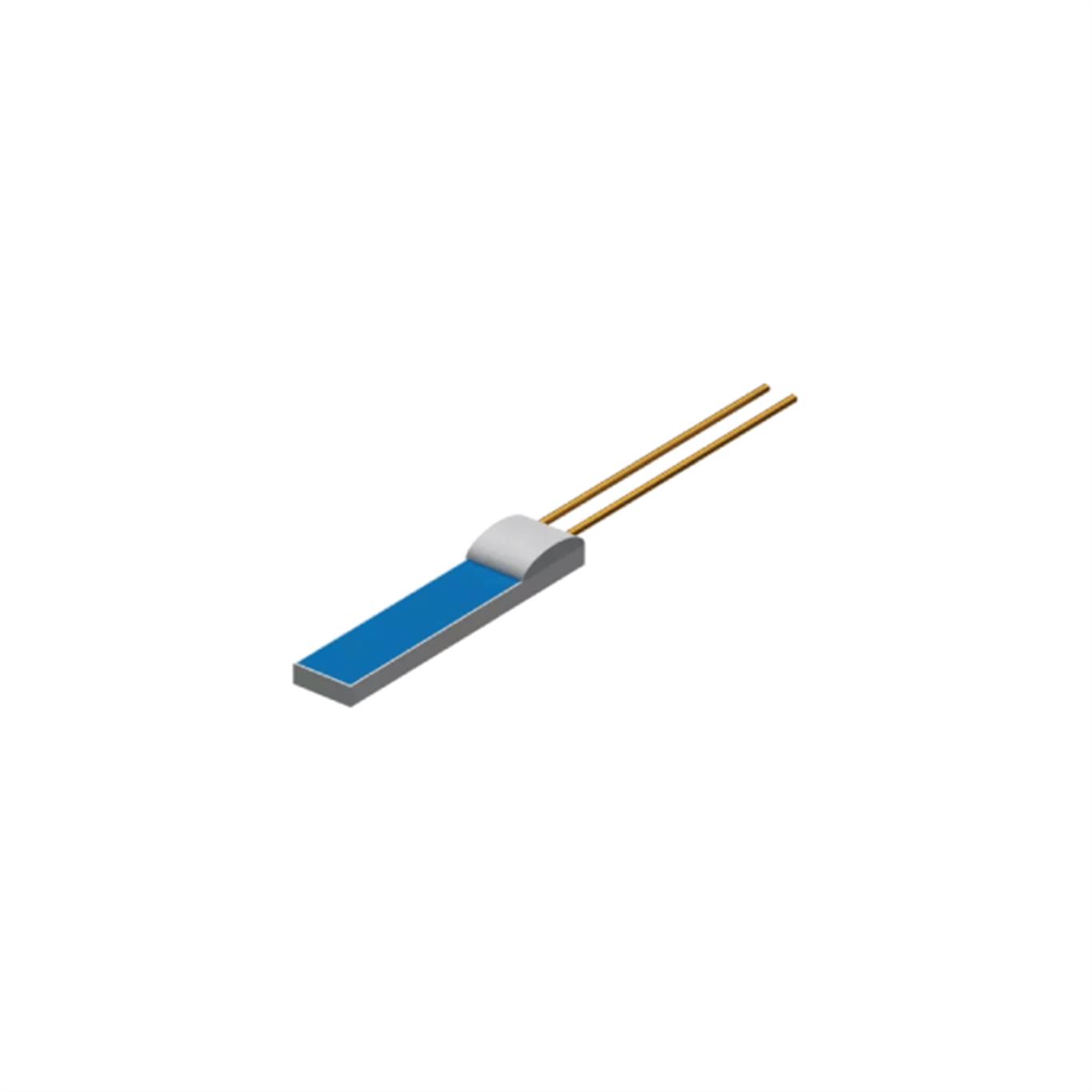

Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.
 |
 |
 |
|
High long-term stability
|
Standardized nominal values and tolerances
|
High measuring accuracy
|
GENERAL TECHNICAL DATA |
| Design type | PCW-M-AuNi |
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +500 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection wires | Gold-plated nickel wire |
| Processing | Welding, soldering, and crimping |
| Advantages | Standardized nominal values (Pt100, Pt500, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical properties |
| Areas of application | Heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles |
With solderable terminal clamps and epoxy protective coating according to DIN EN IEC 60751
Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
 |
 |
|
|
Protection against
moisture and condensation |
Solderable connection
terminals |
High measuring
accuracy |
With connection wires according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
|
|
|
|
For confined
spaces |
High measuring
accuracy |
High long-term
stability |
With connecting wires and metallized back cover according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
 |
|
|
|
Solderable metallized
back cover |
For confined
spaces |
High measuring
accuracy |
