Panel mounted and surface mounted thermostat

EM series

The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.

Safety switch-off at -20 °C	Self-monitoring in the event of a pressure drop	Microswitch

AMTHF series

The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.

For universal use	Impervious to environmental influences	Without auxiliary energy

ATH.-SE series

The devices of the ATH.-SE series are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.

Impervious to environmental influences	Microswitch	Without auxiliary energy

ATH series

Surface-mounted double thermostats of the ATH series consist of 2 separate measuring and switching systems. The devices are available as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).

Safety switch-off at -20 °C	Self-monitoring in the event of a pressure drop	2 separate measuring and switching systems

ATH-SW series

Surface-mounted thermostats of the ATH-SW type series consist of 1 or 2 separate measuring and switching systems. The devices are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).

Separate measuring and switching systems	Microswitch	Impervious to environmental influences

Electronic frost protection thermostat

The frost protection thermostat is used on the air part of air-conditioning systems, heat exchangers, heating registers, and similar units to protect them against frost damage and freezing. Applications include in building automation and the ventilation and air-conditioning industry.

Variety of applications	Self-monitoring of the probe line	Integrated membrane heating

Frost protection thermostat

The product monitors the temperature in ventilation and air-conditioning systems. It has a small switching differential and a high level of reproducibility. The AT version allows mounting on the wall; the DR version is suitable for DIN-rail mounting.

Surface temperature monitoring	Microswitch with snap-action system	Easy to install and use

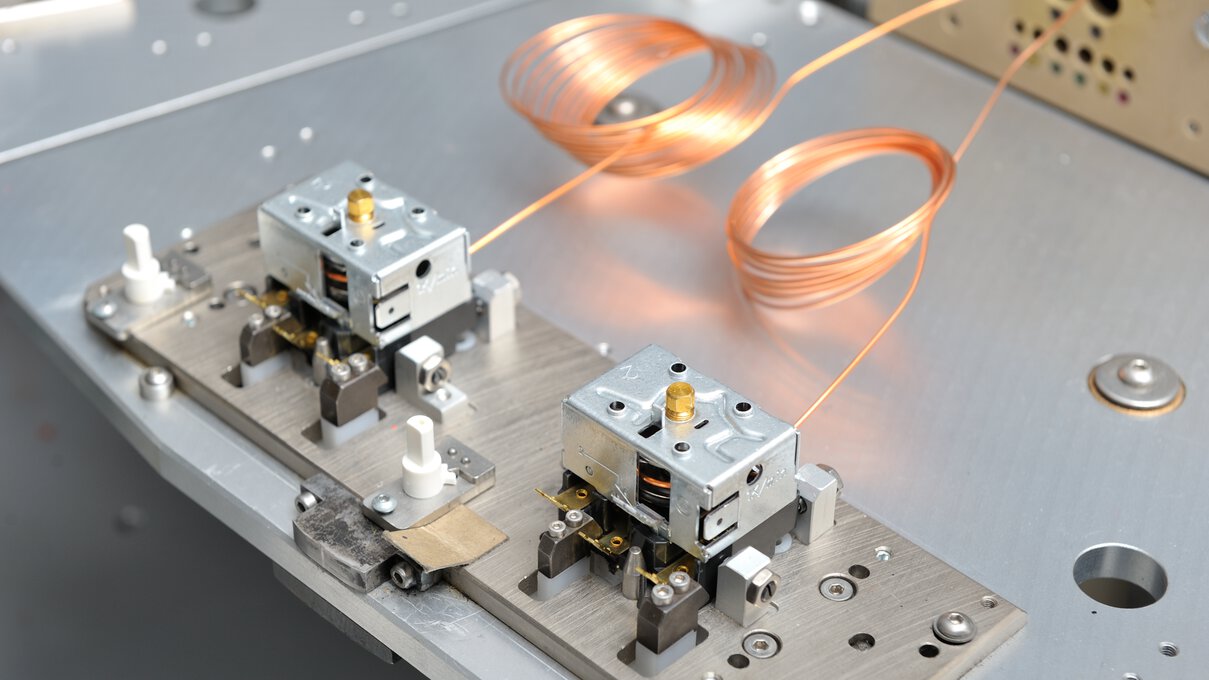

Panel-mounted thermostat

The product is available as temperature controller (TR), temperature monitor (TW) (type 602030), safety temperature monitor (STW), or as a safety temperature limiter (STB) (type 602031). The panel-mounted thermostat is RoHS-compliant and cadmium-free.

Temperature compensation	Microswitch with snap-action system	Safety switch-off at -20 °C

Surface-mounted thermostat

The JUMO heatTHERM-DR (design type 7+8) type is a specific variation with a special case bottom section for DIN rail or wall mounting. As a result, easy installation on mounting rails TH35 according to DIN EN 60715 (e.g. in control cabinets) is possible.

PUSH IN connection technology	High switching point accuracy	Various applications

Panel-mounted thermostat

The JUMO heatTHERM P100 has been designed as a temperature controller (TR) for the entry-level class. The device stands out through its solid quality, simple installation, and low space requirement.

No auxiliary energy required	Low space requirement	Cadmium-free construction

EM series to 500 °C

The devices of the EM series are available as temperature controllers (TR), temperature monitors (TW), temperature limiters (TB), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.

Self-monitoring in the event of a pressure drop	Without auxiliary energy	Multiple single pole combinations

3-phase panel-mounted thermostat

The 3-phase JUMO heatTHERM P300 can switch outputs up to 480 V at 30 A. All phases are disconnected from the power grid simultaneously here. The device is a safety temperature limiter (STB) and sets the system being monitored to a safe operating status in the event of a malfunction.

Increased safety	Time-saving startup	3-phase STB

Surface-mounted thermostat for ATEX and SIL applications

The surface-mounted thermostat is available as a single or double thermostat with capillary or rigid thermowell. A microswitch is used as the electrical switching element. The device operates according to the principle of liquid expansion. It is available as a temperature monitor, safety temperature monitor, and safety temperature limiter. Additional thermowells allow use in zone 0.

[Ex i] version for mounting in zone 1/21	PUSH IN connection technology	Quick and secure connection

For zone separation 0/1 or 20/21

ATEX thermowells made of stainless steel are used for the separation of zones 0 and 1 or 20 and 21. Screw-in sleeves or weld-in sleeves are available from stock in insertion lengths 100 mm, 150 mm, 200 mm, and 300 mm.

Screw-in sleeve or weld-in sleeve	Special lengths are available upon request	Inspection certificate 3.1 as standard

Electronic thermostat with optional PID two-state controller function

The electronic thermostat for DIN rail mounting has been especially developed for temperature control and monitoring. RTD temperature probes, thermocouples, current signals, and special temperature probes that are used in railroad technology can be connected to the measurement input. The intuitively operated device is optionally available as a PID two-state controller.

Fast acquisition of process states	Space-saving mounting in control cabinets results	Switching high-performance loads

Electronic thermostat with optional PID two-state controller function

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals.

Flexible in its application	Intuitive operation in plain text	Optional PID two state controller function

Electronic thermostat with optional PID two-state controller function

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.

Flexible in its application	Intuitive operation in plain text	Retrofit for dial thermometers

Electronic cooling controller

The JUMO eTRON M100 is an electronic cooling controller for use in cold-storage rooms, display refrigerators, or refrigerating counters to be connected to RTD temperature probes. The first measurement input acquires the temperature of the cold-storage room. The second measurement input acquires the temperature of the vaporizer.

Real-time clock	Alarm indication via buzzer	Setup program

Electronic 2-channel microstat

The product is an electronic 2-channel microstat for universal use to be connected to RTD temperature probes. The 2 measurement inputs acquire temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.

Customer-specific linearization	Setup program	Parameter level protected by code
