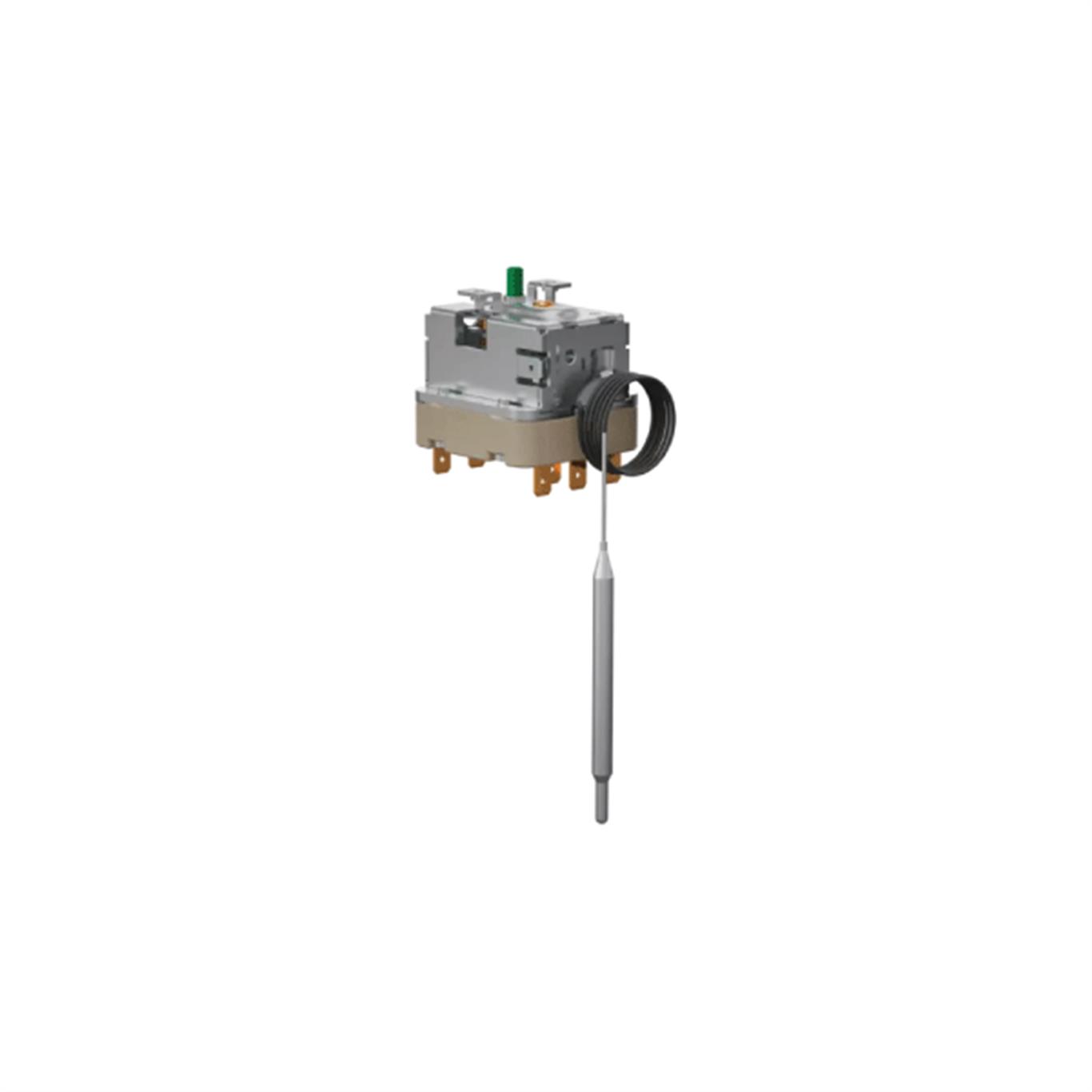

JUMO heatTHERM P300
3-phase panel-mounted thermostat
The 3-phase JUMO heatTHERM P300 can switch outputs up to 480 V at 30 A. All phases are disconnected from the power grid simultaneously here. The device is a safety temperature limiter (STB) and sets the system being monitored to a safe operating status in the event of a malfunction.
 |
 |
 |
|
Increased
safety |
Time-saving
startup |
3-phase STB
|
GENERAL TECHNICAL DATA |
| Versions | Safety temperature limiter (STB) |
| Switching capacity | Normally closed contact (NC): 40 to 480 V 0.5 to 30 A (5.0 A); normally open contact (NO): AC 40 to 480 V, 0.5 to 2 A (0.3 A) |
| Formats | 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Switching element | Switching mechanism which disconnects all contacts at the same time |
| Maximum control range and limit value | Limit value permanently set, upon request |
| Approvals | VDE, UL |
| Area of application | Heat pumps, screw-in heaters, electric heaters, food industry, canteen kitchen technology and catering sector, electric heat generators, heating devices, heating elements |
| Features | 3-phase panel-mounted thermostat |
EM series
The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
 |
 |
 |
|
Safety switch-off
at -20 °C |
Self-monitoring
in the event of a pressure drop |
Microswitch
|
AMTHF series
The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.
 |
 |
 |
|
For universal
use |
Impervious to
environmental influences |
Without auxiliary
energy |
ATH.-SE series
The devices of the ATH.-SE series are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
|
|
|
|
Impervious to
environmental influences |
Microswitch
|
Without auxiliary
energy |
