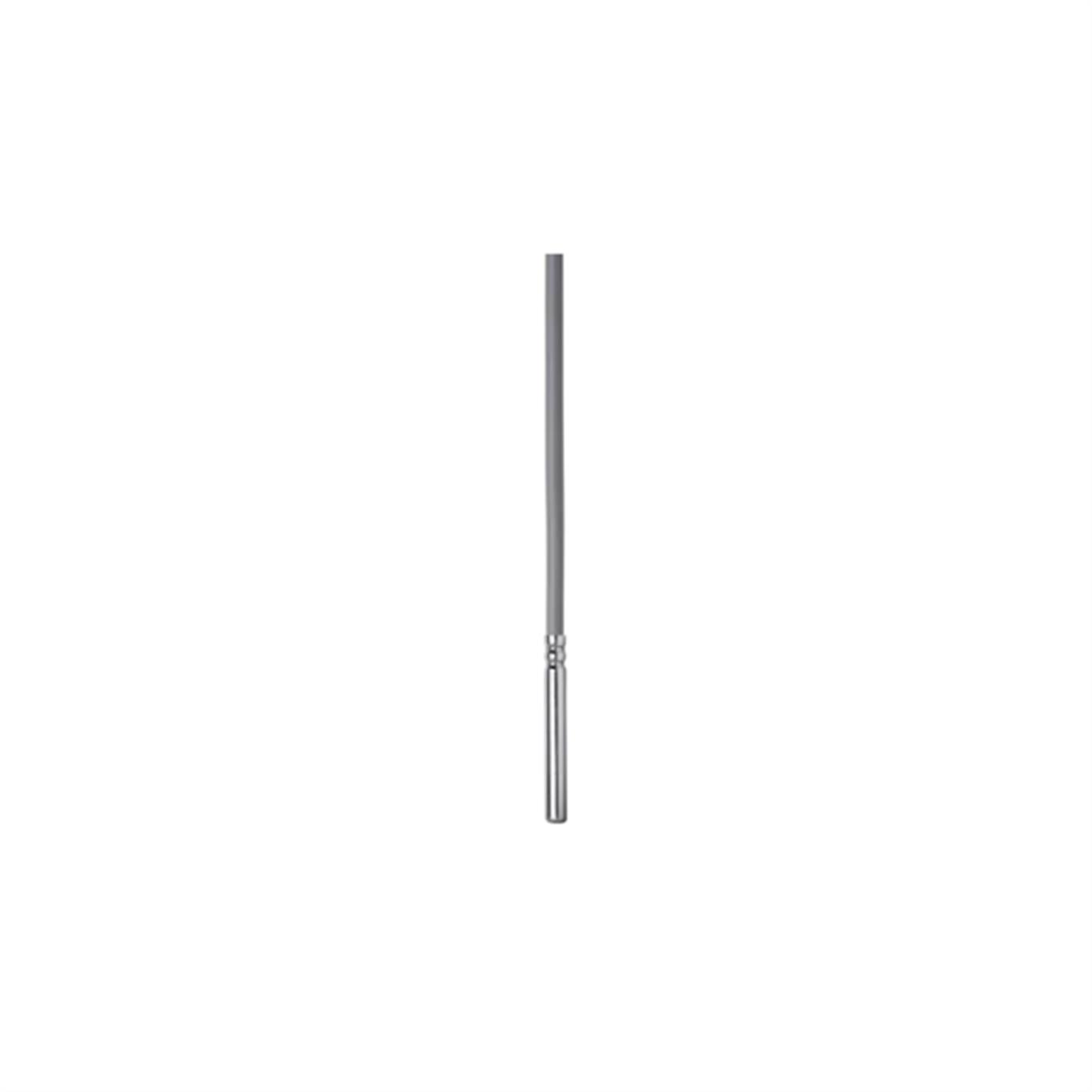

Push-in thermocouples 901150
With compensating cable
Push-in thermocouples are predominantly used for temperature measurement in solid bodies (e.g. heating plates and sealing jaws). The compensation cable is relieved of strain at the transition to the protection tube. Bend protection is available as an option.
 |
 |
 |
|
Thermocouples
type J, K, and L |
Optionally right-angle
cable outlet |
Compensating
cable made of silicon/metal braiding |
GENERAL TECHNICAL DATA |
| Thermopairs | J, K, L |
| Connection | Cable |
| Operating temperature | -50 to +600 °C |
| Measuring circuits | 1 |
| Areas of application | Industrial kitchen equipment suppliers, industrial hot runner systems, analysis devices |
| Protection fitting | Stainless steel 1.4571 |
| Special features | Cable made of silicone, metal braiding, also available with right-angle cable outlet, meets the specification according to AMS2750 E and CQI-9 |
| Option | Non-insulated construction |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
 |
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
 |
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
|
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |
