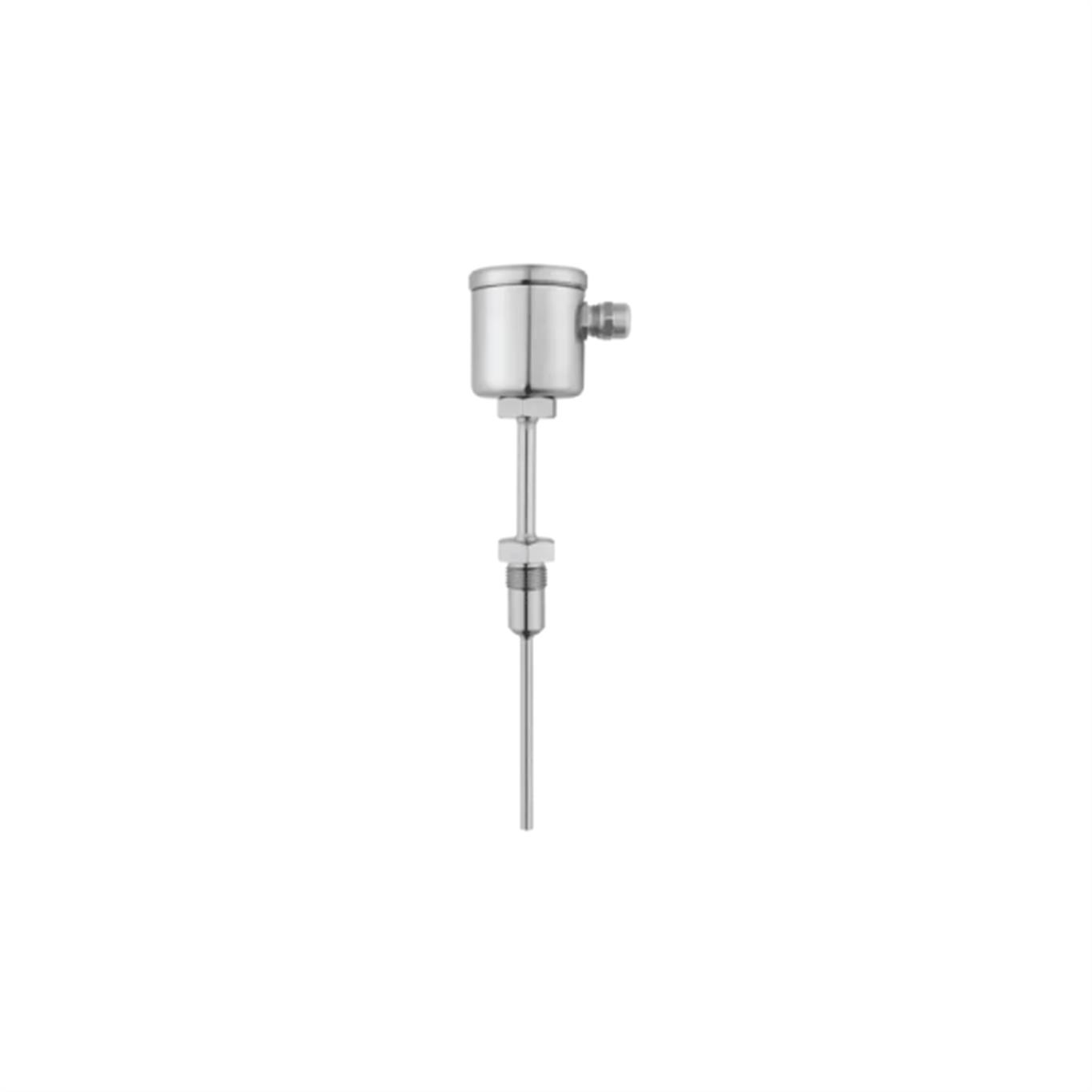

RTD temperature probe 902810
For the food and pharmaceutical industry
The RTD temperature probes can be built with terminal heads made of either stainless steel, aluminum die-cast, or plastic. Various process connections are available for the different requirements of sub-areas in the food and pharmaceutical industry.
 |
 |
 |
|
Hygienic
process connections |
CIP-compliant
installation |
Two-wire transmitter
available |
GENERAL TECHNICAL DATA |
| Operating temperature | -50 to +250 °C |
| Approvals | SIL and PL compatible |
| Protection fitting | Stainless steel 316L |
| Measuring circuits | 1/2 |
| Sensor | Pt100 |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Terminal head | Form B, BUZ, BUZH, stainless steel terminal head |
| Option | Head transmitter |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Output | Pt100 passive; 1 × analog output 0(4) to 20 mA, 0 to 10 V; 1 × programmable transmitter output 4 to 20 mA |
| Protection type | IP67/IP69K |
| Accuracy | Tolerance class: class A (class AA as optional extra) |
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
