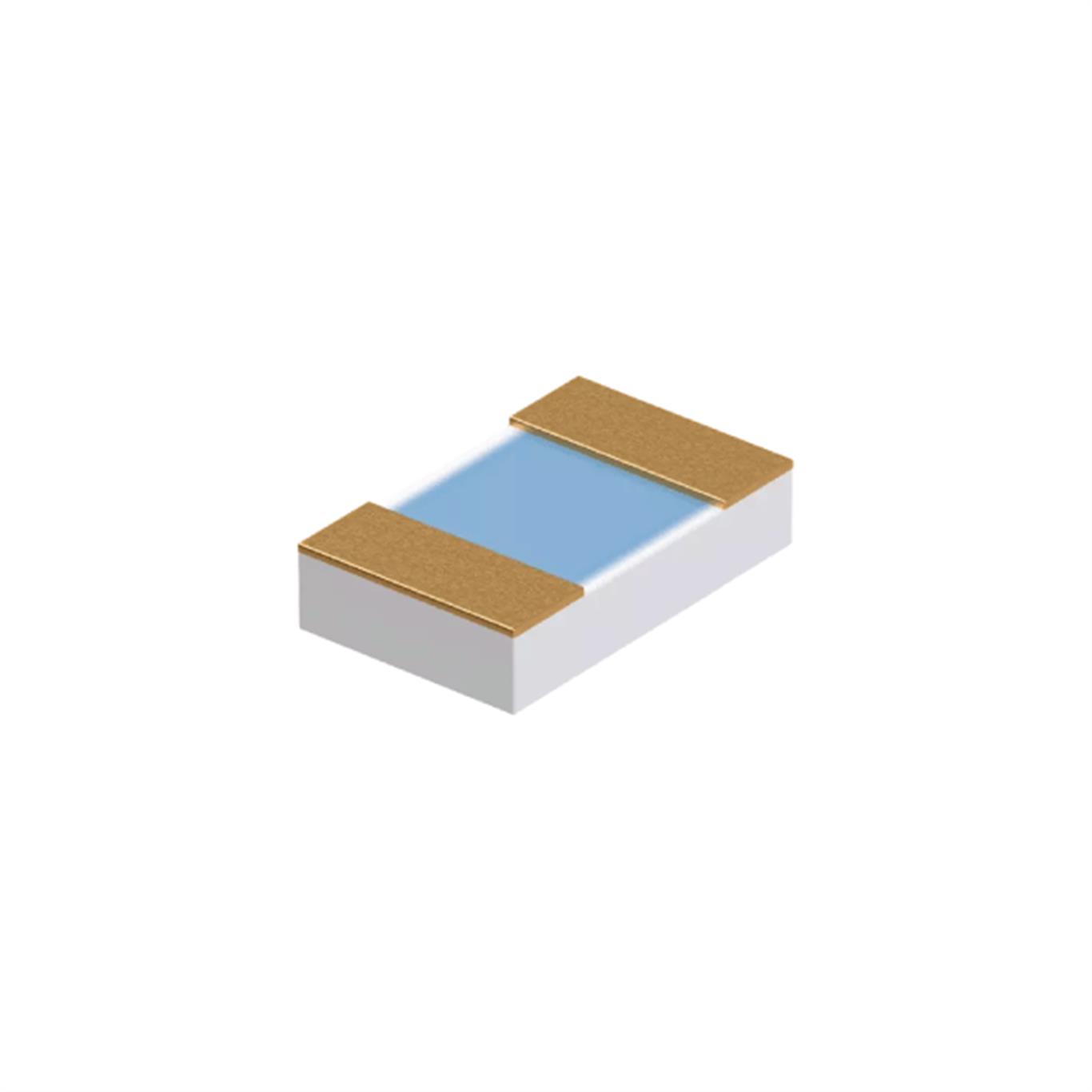

Platinum-chip temperature sensors SMDFCB-L-AuNi
In SMD design type (flip chip) with metallized back cover according to DIN EN IEC 60751
Platinum chip temperature sensors belong to the category of temperature sensors that were made using thin-film technology. Sensors of the SMDFCB design type have a single-sided contact (flip chip) and are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
 |
 |
 |
|
Solderable metallized
back cover |
For confined
spaces |
SMD size SMD
0805 |
GENERAL TECHNICAL DATA |
| Design type | SMDFCB-L-AuNi |
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +250 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection | 2 LCD displays with 18 segments each including display of texts (not with JUMO meroVIEW 116), plain text display for menu, parameters, and process information |
| Connections | Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58 |
| Processing | Reflow soldering |
| Metallized back cover | Nickel/gold |
| Advantages | Solderable back cover for better thermal contact, for confined spaces, SMD size 0805, single side contact (flip chip design type), high-purity and even contact layer for better solder connection, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior |
With solderable terminal clamps and epoxy protective coating according to DIN EN IEC 60751
Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
 |
 |
 |
|
Protection against
moisture and condensation |
Solderable connection
terminals |
High measuring
accuracy |
With connection wires according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
|
|
 |
|
For confined
spaces |
High measuring
accuracy |
High long-term
stability |
With connecting wires and metallized back cover according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
|
|
|
|
Solderable metallized
back cover |
For confined
spaces |
High measuring
accuracy |
