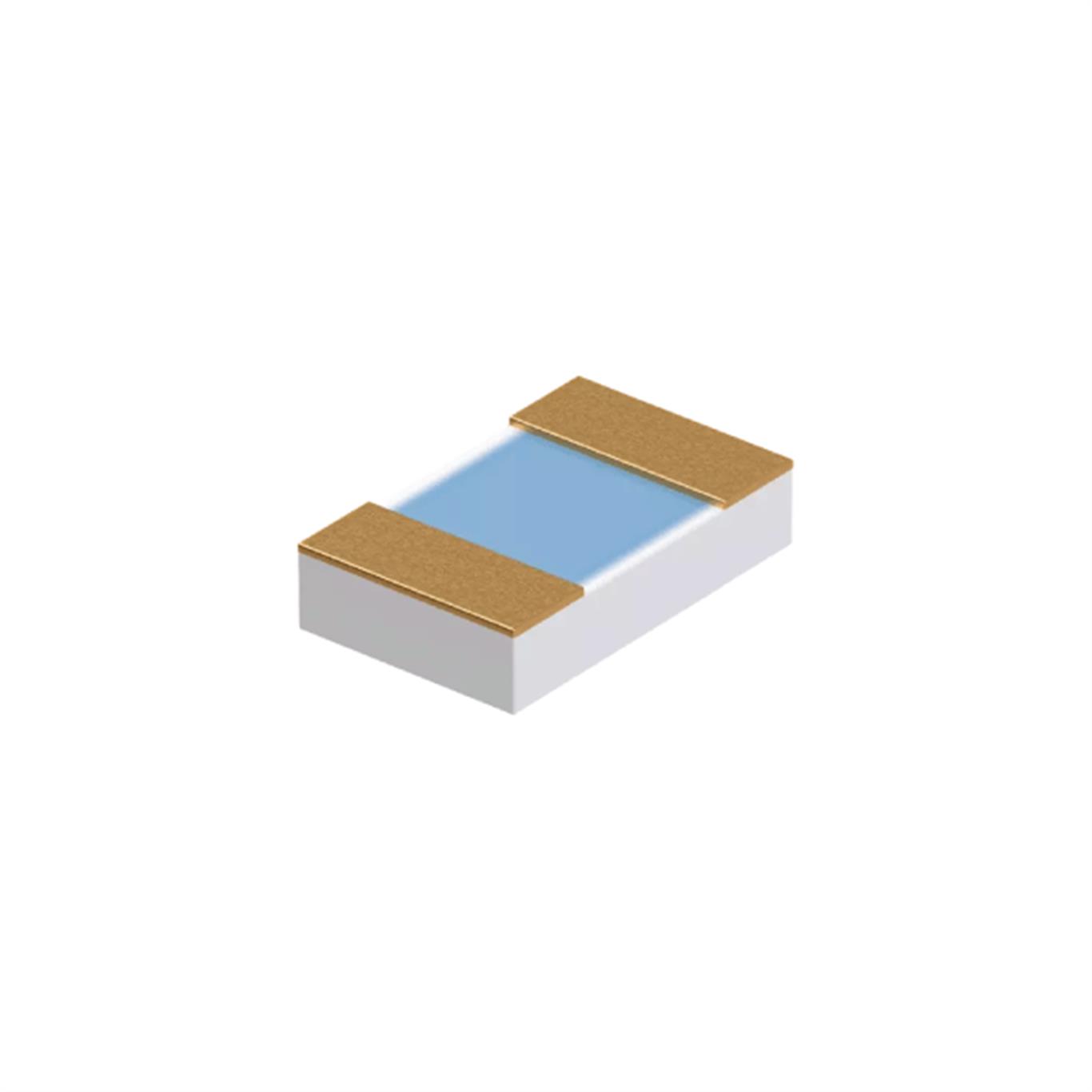

Platinum-chip temperature sensors SMDFC-L-AuNi
In SMD design type according to DIN EN IEC 60751
Platinum-chip temperature sensors belong to the category of thin-film technology temperature sensors. Sensors of the SMDFC design type have a single-sided contact for "face down mounting" (flip chip). The sensors are available as Pt100, Pt500, and Pt1000.
 |
 |
 |
|
AEC-Q200 for
selected sensors |
For automatic
placement |
SMD sizes 0805
and 1206 |
GENERAL TECHNICAL DATA |
| Design type | SMDFC-L-AuNi |
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +250 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection | Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58 |
| Processing | Reflow soldering |
| Advantages | For automatic placement, SMD size 0805, single side contact for "face down mounting" (flip chip), AEC-Q200 for selected sensors, gold plated nickel solder contact, high-purity and even contact layer for better solder connection, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior |
| Areas of application | Surface and ambient temperature measurements on circuit boards (e.g. in temperature probes, temperature monitoring or compensation circuits) |
With solderable terminal clamps and epoxy protective coating according to DIN EN IEC 60751
Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
 |
 |
 |
|
Protection against
moisture and condensation |
Solderable connection
terminals |
High measuring
accuracy |
With connection wires according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
|
|
 |
|
For confined
spaces |
High measuring
accuracy |
High long-term
stability |
With connecting wires and metallized back cover according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
 |
|
|
|
Solderable metallized
back cover |
For confined
spaces |
High measuring
accuracy |
