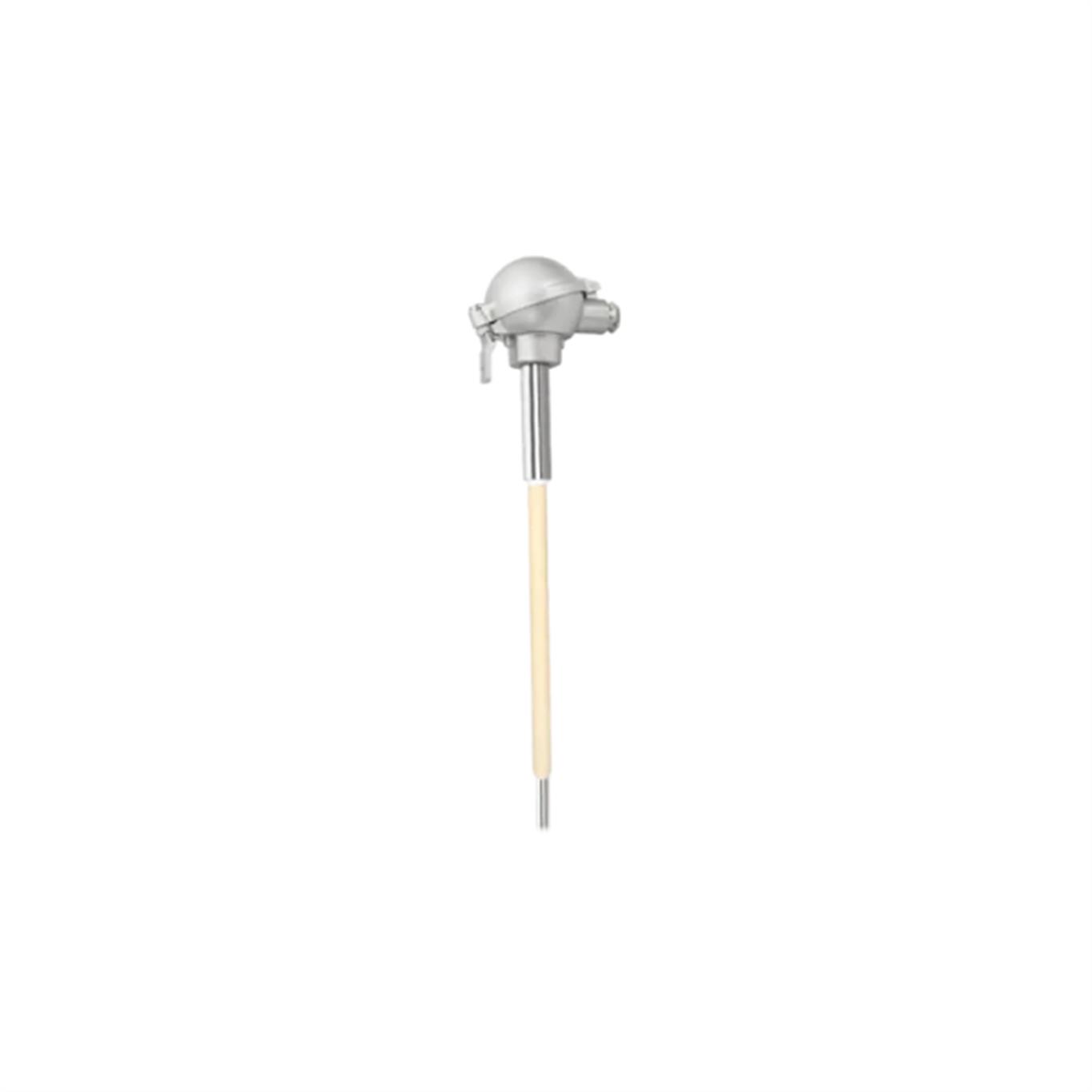

Push-in thermocouples 901830
With terminal head form A
Push-in thermocouples for glass melting furnaces, withstand up to 2000 °C. Designed for extreme conditions, they ensure optimum thermal insulation and reduce thermal losses. They comply with ISO standards for high accuracy and quality in corrosive atmospheres.
 |
 |
 |
|
Single, double
or triple thermocouples |
Available with
transmitter |
Platinum or
platinum rhodium plating |
GENERAL TECHNICAL DATA |
| Type of protection | IP54 |
| Process connection | Flange |
| Connection | Head |
| Protection fitting | Steel 1.4749 / 1.4841, Ceramic C 610 / C 799 |
| Operating temperature | 0 to 2000 °C |
| Option | Possibility to include integrated converters and protective tubes with platinum or platinum-rhodium plating. |
| Areas of application | Glass furnaces where extreme conditions with corrosive atmosphere and high temperature prevail. |
| Special features | Equipped for extreme conditions and achieves optimum thermal insulation to reduce heat losses and to protect the material. |
| Approvals | ISO Standards |
| Connection heads | Form A, BUZ, BUZH, BUS, BUSH, DANAwin, DAND |
| Thermocouples | K, S, R, B |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
|
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |
