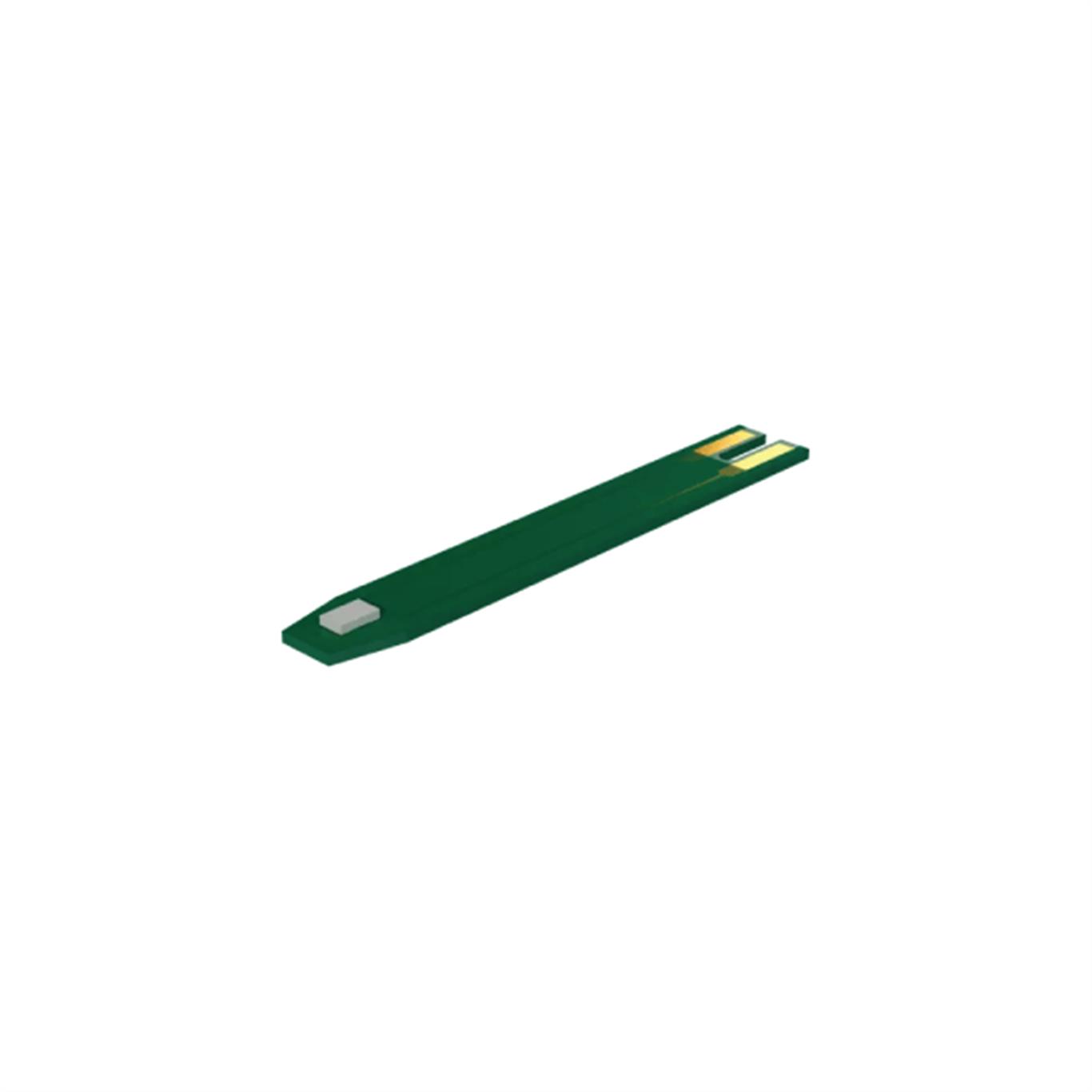

PCB-B-Au measuring inserts
With platinum chip temperature sensors of SMD design type according to DIN EN 60 751
Temperature sensors of the PCB-B-Au design type are pre-assembled measuring inserts, which are equipped with platinum chip temperature sensors in SMD design type. The circuit board is connected via gold-plated solder contacts.
 |
 |
 |
|
Pre-assembled
|
For the assembly
of simple temperature probes |
Available in
large quantities at low cost |
GENERAL TECHNICAL DATA |
| Design type | PCB-B-Au |
| Standard | DIN EN IEC 60751 |
| Temperature range | -20 to +150 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection | Chemical nickel - gold IPC-4552 |
| Base material | FR-4 |
| Advantages | Pre-assembled for easy further processing, for the assembly of simple temperature probes, available in large quantities at low cost, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior |
| Areas of application | Heat meters, heating, air conditioning, ventilation (HVAC), medical and laboratory technology, mechanical engineering, white goods, motor and commercial vehicles |
With solderable terminal clamps and epoxy protective coating according to DIN EN IEC 60751
Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
 |
 |
 |
|
Protection against
moisture and condensation |
Solderable connection
terminals |
High measuring
accuracy |
With connection wires according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
|
|
 |
|
For confined
spaces |
High measuring
accuracy |
High long-term
stability |
With connecting wires and metallized back cover according to DIN EN IEC 60751
Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
|
|
|
|
Solderable metallized
back cover |
For confined
spaces |
High measuring
accuracy |
