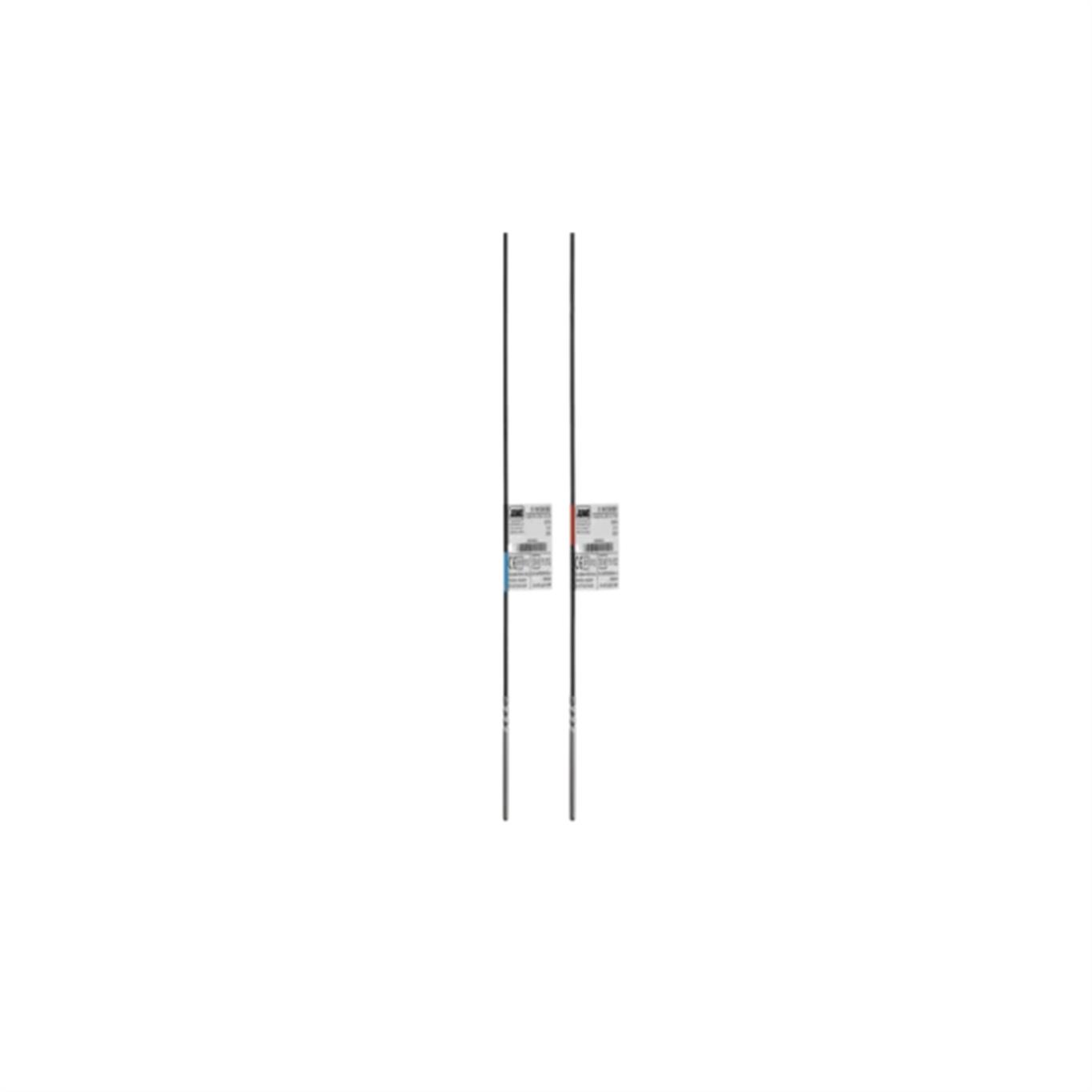

JUMO HEATtemp 902438
Push-in RTD temperature probe for heat meters with connecting cable for thermowells (type PS/PL)
RTD temperature probes for heat meters are used for temperature measurement in closed pipeline systems. As the probes are installed in thermowells, emptying the system for regular replacement at the end of the certification period is no longer necessary.
 |
 |
 |
|
Pairing and conformity
according to MID |
Type examination
certificate available |
DIN EN 1434,
AGFW FW 202, and FW 211 |
GENERAL TECHNICAL DATA |
| Temperature | 0 to 180 °C |
| Connection | Ferrules |
| Connecting cable | PVC, PUR, TPE, silicone; unshielded or shielded |
| Process connection | Push-in RTD temperature probe for thermowells |
| Protection tube | Stainless steel |
| Insertion length | Type PS: 45 to 85 mm; type PL: 85 to 450 mm |
| Protection type | IP65 |
| Accessories | Thermowells: see data and price sheet 902440; accessories: see data and price sheet 902442 |
| Special features | Installation with thermowell, production certified according to module D (MID) (CE and metrology identification marking), pairing and declaration of conformity according to MID, type examination certificate for heat meters MID as replaceable temperature probes |
| Approvals | Fulfills the requirements of DIN EN 1434, AGFW FW 202, and FW 211 |
| Application possibilities | Temperature measurement in closed pipeline systems |
