JUMO Wtrans B
Head transmitter with wireless data transmission

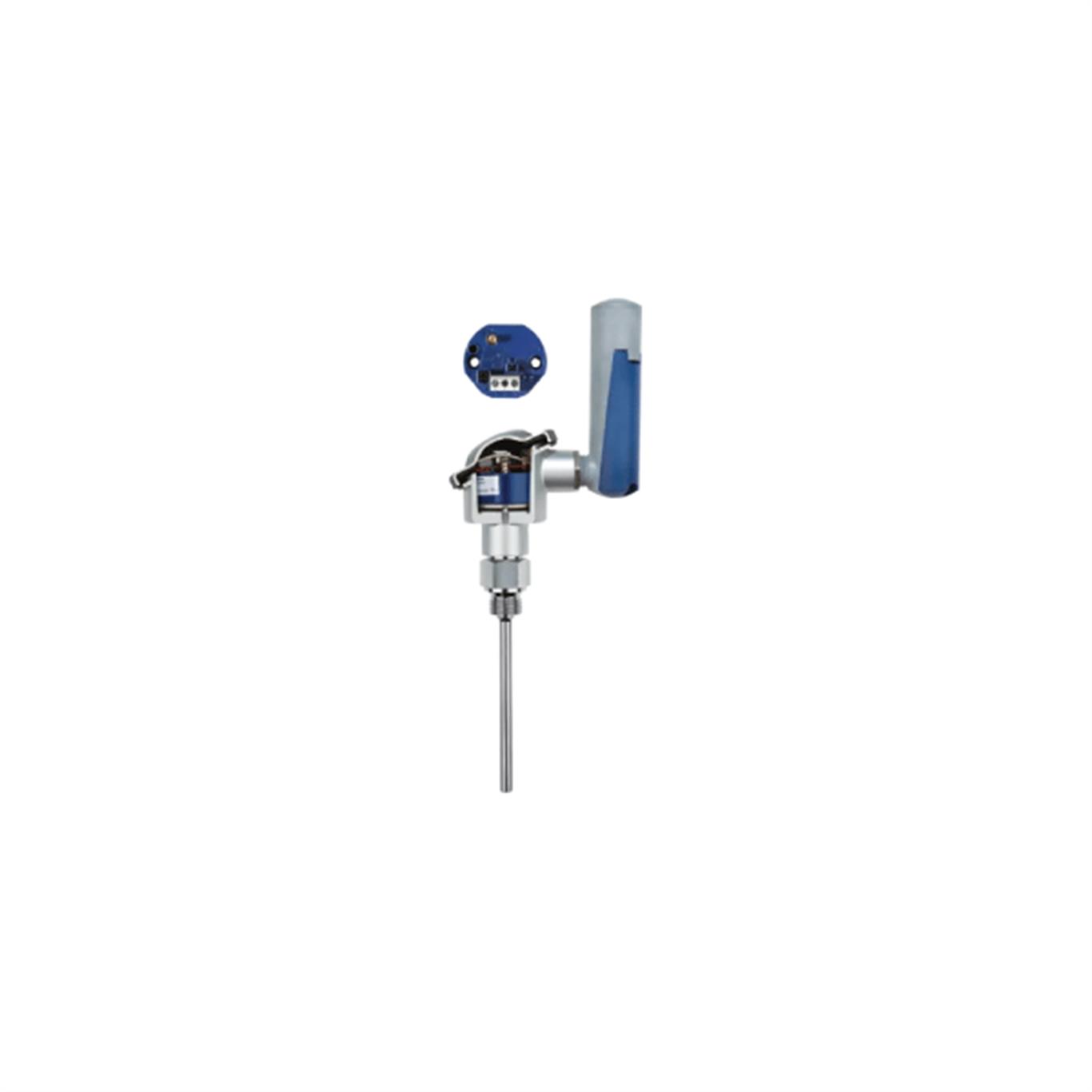

The wireless transmitter measures temperature and other process variables. The compact design type of the aerial battery housing allows for simple installation on type B DIN terminal head.
 |
 |
 |
|
User configurable PC
setup program |
Stationary and mobile
measurements |
Fail-safe
transmission |
GENERAL TECHNICAL DATA |
| Galvanic isolation | > 10 kV |
| Installation | In terminal head, type B |
| Input | Pt100, Pt500, Pt1000, resistance transmitter, resistance/potentiometer (two-wire, three-wire, four-wire circuit), R, S, B, J, T, E, K, N, L, U, A1, C, D, 0 to 50 mV, 0(4) to 20 mA (via external shunt) |
| Ambient temperature | -30 to +85 °C |
| Output | Wireless-based with open air range of up to 300 m (transmission frequency 868.4 MHz) |
| Special features | Transmission interval of 1 to 3600 s, customer-specific linearization |
| Calibration accuracy | ± 0.1 % |
| NAMUR compliant | NE21 |
| Configuration | Via PC interface |
| Voltage supply | 3.6 V Li battery (battery size AA) |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
 |
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
 |
|
