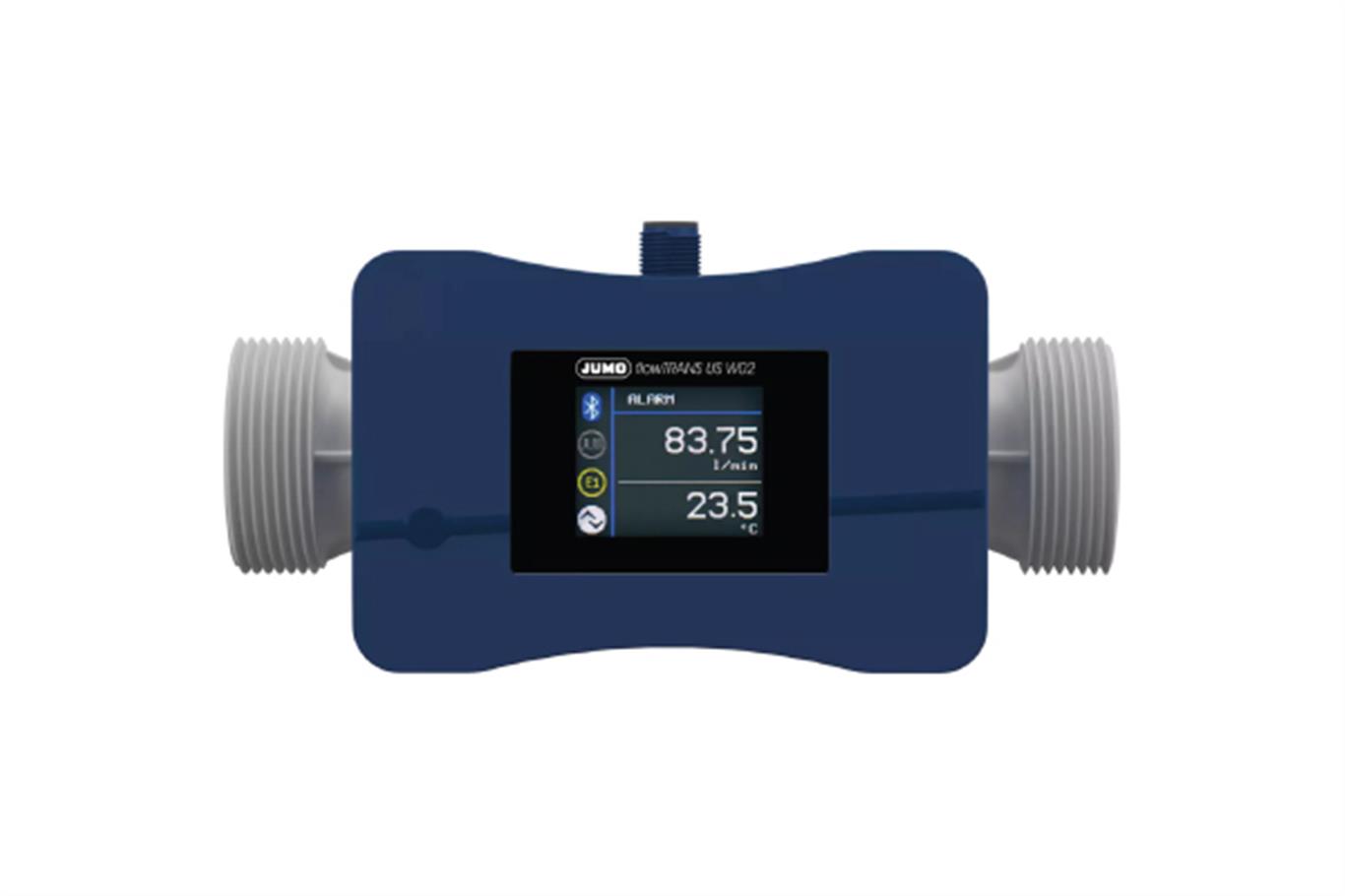

JUMO flowTRANS US W02
Ultrasonic flowmeter
Absolut wear and maintenance-free ultrasonic technology allows the flowmeter to measure with high precision and independent of the conductivity. It can also be extended with temperature and pressure sensors. The device can be integrated into sensor networks via JUMO digiLine or IO-Link interface. Configuration is convenient via Bluetooth and app.
 |
 |
 |
|
Temperature and
pressure measurement possible |
Precise
measurement |
Wear and
maintenance free |
GENERAL TECHNICAL DATA |
| Measuring principle | Ultrasonic (delay difference) |
| Accuracy | 1 % of the measured value |
| Measuring dynamics | Up to 1:100 (0.1 to 10 m/s) |
| Medium temperature | Up to 80 °C (up to 95 °C with lower accuracy) |
| Nominal pressure | PN 16 |
| Ambient temperature | 60 °C |
| Outputs | IO-Link (configurable: Pulse output (up to 10 kHz), Analog output, Binary input/output |
| Display | TFT display for easy operation and measured value display |
| Process connection | Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal |
| Materials in contact with the medium | PPSU, PEEK, EPDM (FKM) |
| Protection type | IP65/IP67 |
| Housing | Metal-free plastic housing |
| Electrical connection | M12 connector |
| Additional measurands (optional) | Temperature, pressure |
| Special features | Configuration via Bluetooth and app as well as RS485 and software (Digital Sensor Management); measurement of up to 3 measurands at 1 measuring point |
| Approvals | UL (except for DN15) |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
