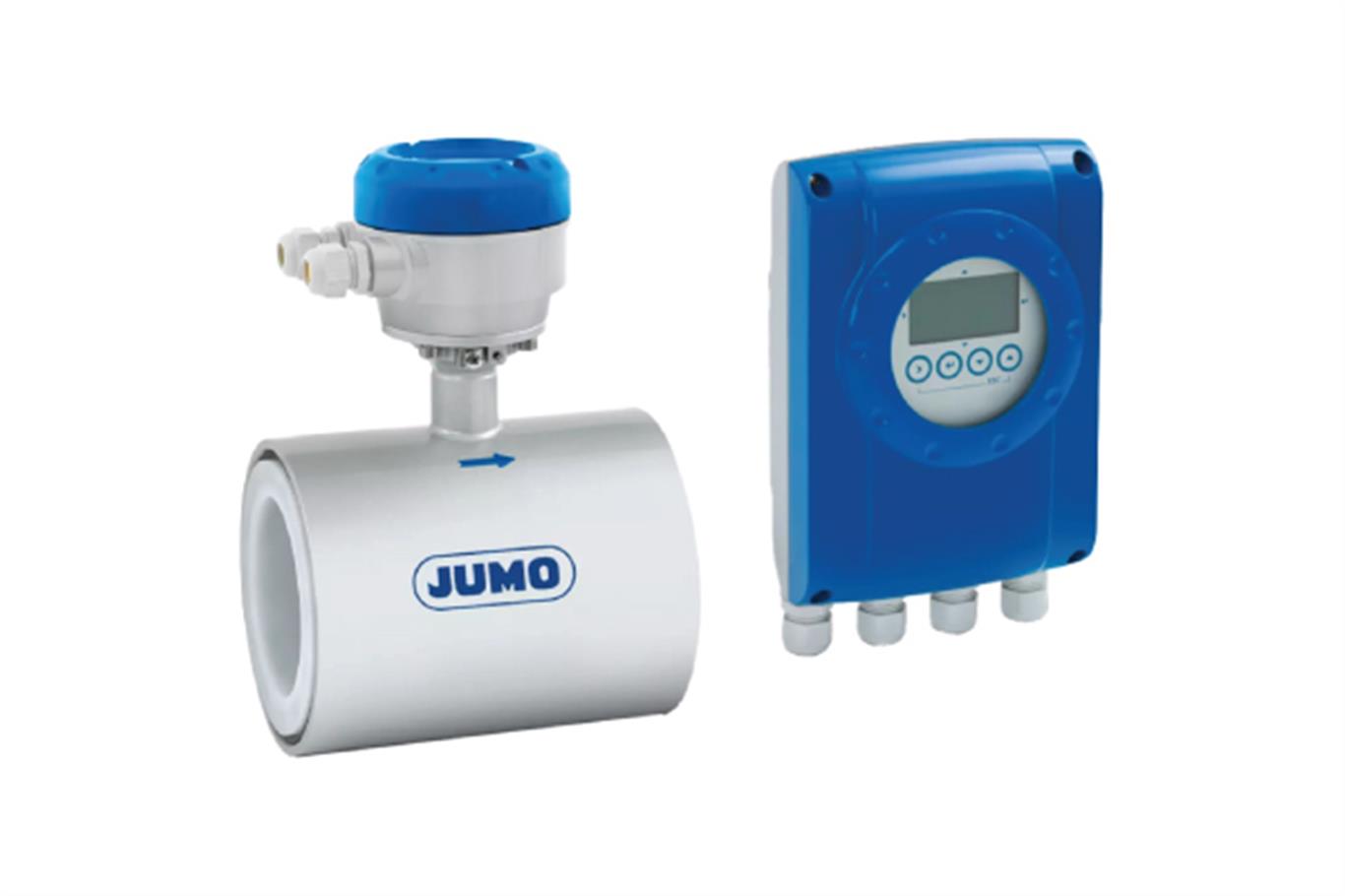

OPTIFLUX 1000
Electromagnetic flowmeter
The electromagnetic flowmeter OPTIFLUX 1000 can be used to measure conductive liquids in pipes with nominal widths from DN 10 to DN 150. The device has been designed for standard industrial applications and can be used in liquid media with different properties.
 |
 |
 |
|
Space-saving
installation |
Wear and
maintenance free |
Wide dynamic
measuring range |
GENERAL TECHNICAL DATA |
| Measuring principle | Magnetic-inductive |
| Nominal widths | DN 10 to DN 150 |
| Accuracy | 0.5 % of the measured value |
| Medium temperature | Up to 120 °C |
| Operating pressure | Up to 16 bar |
| Process connection | Connection flange |
| Counter flange | PN 40 (DN 10 to DN 80), PN 16 (DN 100 to DN 150) |
| Lining | PFA |
| Ambient temperature | Up to 65 °C |
| Protection type | IP66/IP67 |
| Outputs | Analog output (4 to 20 mA) with HART and pulse/frequency/status |
| Display | LCD display, white backlight for displaying up to 3 measured values |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
