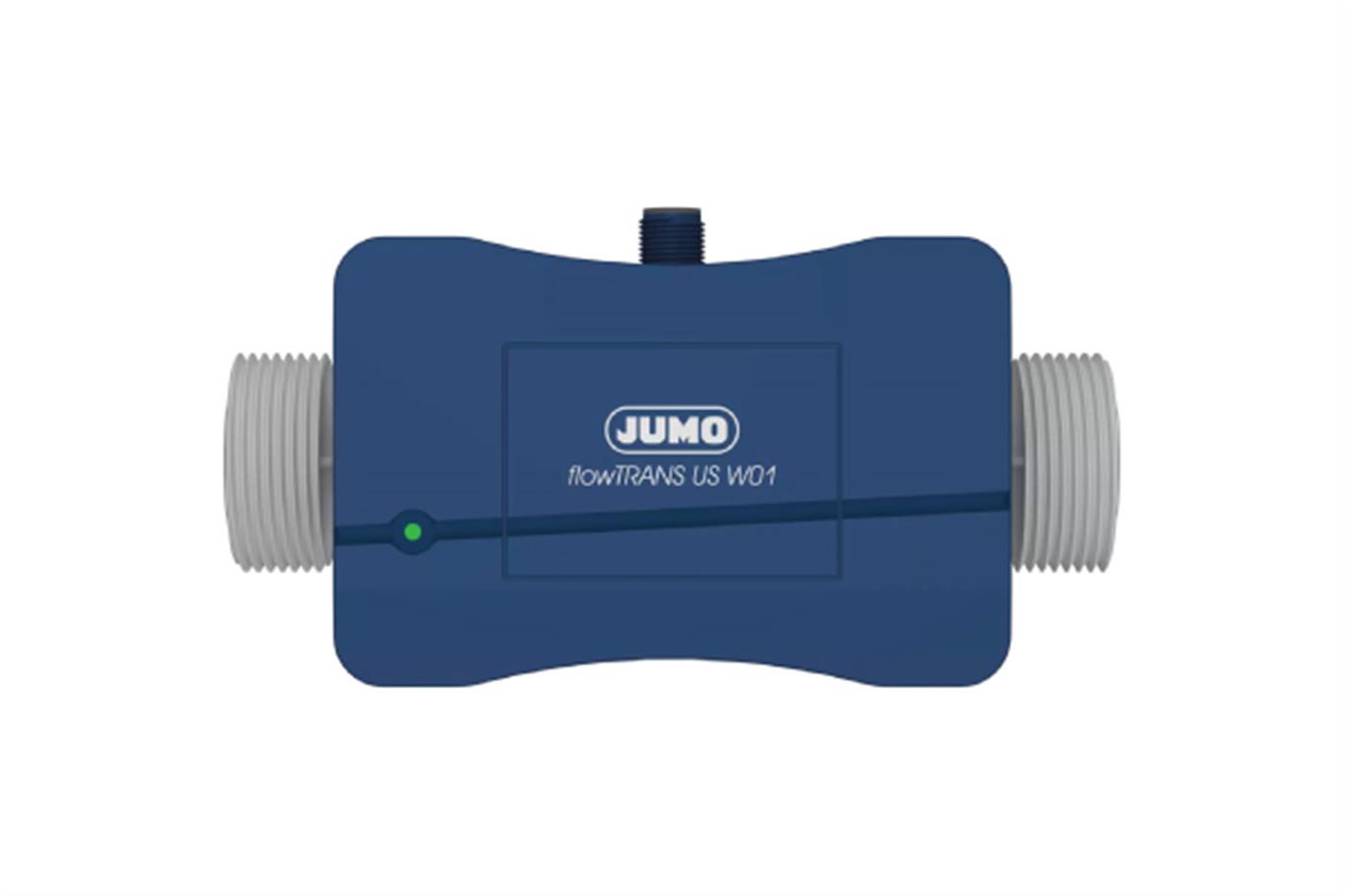

JUMO flowTRANS US W01
Ultrasonic flowmeter for liquids
The flowmeter measures precisely in conductive and non-conductive media. Ultrasonic technology allows it to be absolutely free of wear and maintenance. Its metal-free housing and the plastic pipe in various nominal widths allow it to be used in a flexible manner – even when dealing with corrosive media.
 |
 |
 |
|
Precise
measurement |
Low wear and
low maintenance |
Flexible in its
application |
GENERAL TECHNICAL DATA |
| Measuring principle | Ultrasonic (transit time) |
| Accuracy | 2 % of the measured value |
| Measuring dynamics | Up to 1:100 (0.1 to 10 m/s) |
| Medium temperature | Up to 80 °C (up to 95 °C with lower accuracy) |
| Nominal pressure | PN 16 |
| Ambient temperature | 70 °C |
| Outputs | Pulse output (up to 10 kHz), analog output (4 to 20 mA) |
| Display | LED status display |
| Process connection | Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal |
| Materials in contact with the medium | PPSU, PEEK, EPDM (FKM) |
| Protection type | IP65/IP67 |
| Housing | Metal-free plastic housing |
| Electrical connection | M12 connector |
| Approvals | UL (except for DN15) |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
