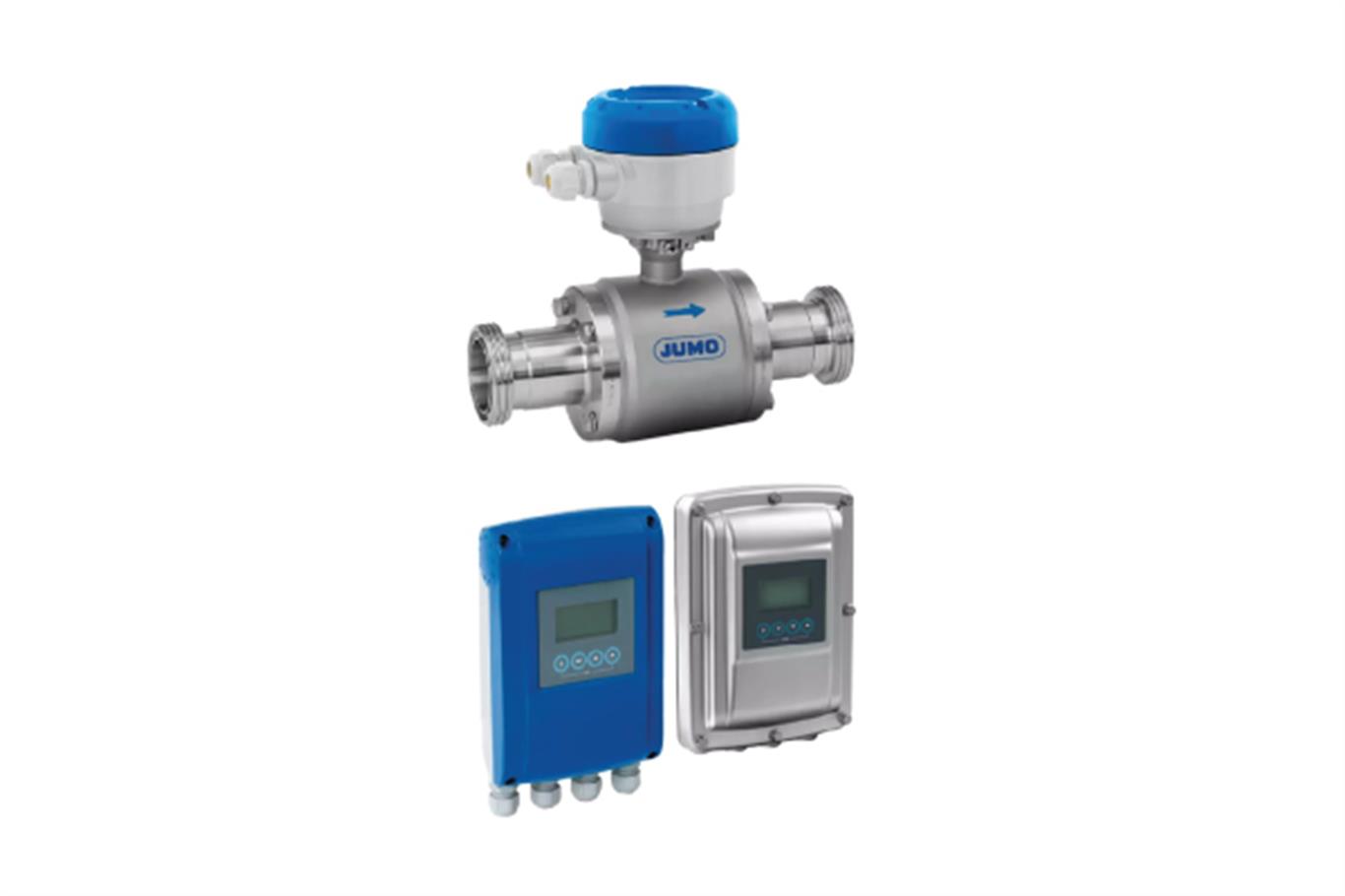

OPTIFLUX 6000
Electromagnetic flowmeter
The OPTIFLUX 6000 is an electromagnetic flowmeter (EMF) for hygienic applications in the food sector. The 3A and EHEDG certified flowmeter has industry-specific insertion lengths to meet the stringent requirements of the food and beverage industry.
 |
 |
 |
|
3A, EHEDG, FDA &
EC1935/2004 compliant |
Opt. stainless steel
case/separated/compact |
Extensive error
diagnostics |
GENERAL TECHNICAL DATA |
| Measuring principle | Magnetic-inductive |
| Nominal widths | DN 2.5 to DN 150 |
| Accuracy | Up to 0.3 % of the measured value |
| Medium temperature | Up to 140 °C |
| Process connection | DIN 11851, Tri-Clamp |
| Lining | PFA |
| Ambient temperature | Up to 65 °C |
| Protection type | IP66/IP67, IP69 for stainless steel case |
| Outputs | Analog output (4 to 20 mA) with HART and pulse/frequency/status |
| Display | LCD display, white backlight for displaying up to 3 measured values |
| Special features | EHEDG and 3A approval; optional stainless steel case |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
|
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
