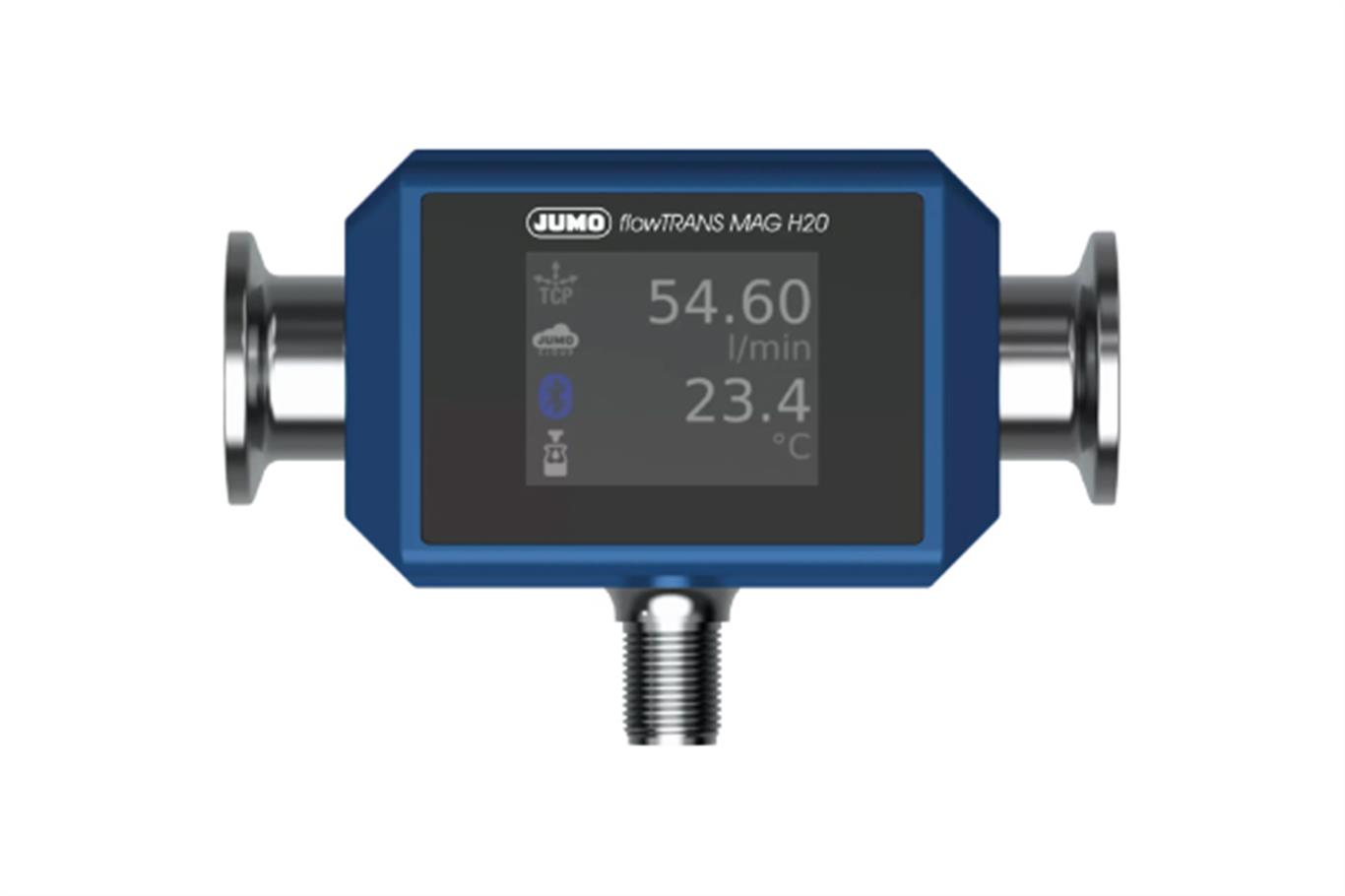

JUMO flowTRANS MAG H20
Electromagnetic flowmeter
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision. TRI-Clamps allow process-oriented use in the hygienic industry. The usual G-type external threads are available as well.
 |
 |
 |
|
Measurement of
small quantities |
Compact design
|
Modern HMI
|
GENERAL TECHNICAL DATA |
| Flow rates | 0.005 to 150 l/min |
| Medium temperature | Up to 90 °C |
| Insertion length | 110 mm (except TRI-Clamp DN 25) |
| Inlet and outlet section | ≥ 0 DN/≥ 0 DN |
| Inputs and outputs | SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (incl. analog/digital inputs/outputs) |
| Protection type | IP65/IP67/IP69 |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
