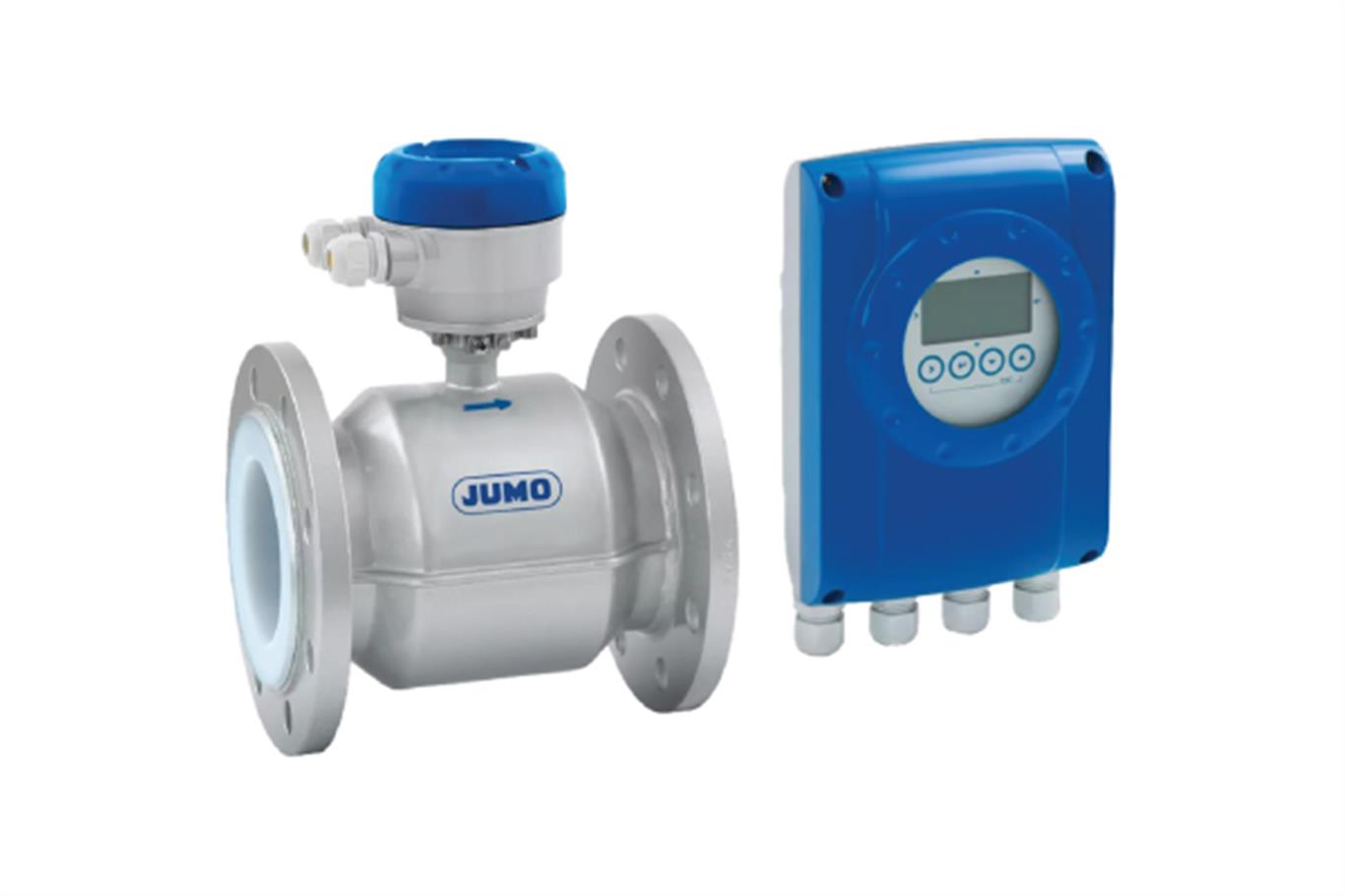

OPTIFLUX 2000
Electromagnetic flowmeter
The OPTIFLUX 2000 is an electromagnetic flowmeter (EMF) for water and wastewater applications which has many drinking water approvals.
 |
 |
 |
|
Meets drinking
water standards |
Wear and
maintenance free |
Wide dynamic
measuring range |
GENERAL TECHNICAL DATA |
| Measuring principle | Magnetic-inductive |
| Nominal widths | DN 25 to DN 300 |
| Accuracy | 0.5 % of the measured value |
| Medium temperature | Up to 90 °C |
| Process connection | PN 40 (DN 25 to DN 80), PN 16 (DN 100 to DN 150), PN 10 (DN 200 to DN 300) |
| Lining | PP, hard rubber |
| Ambient temperature | Up to 65 °C |
| Protection type | IP66/IP67, IP68 for remote version |
| Outputs | Analog output (4 to 20 mA) with HART and pulse/frequency/status |
| Display | LCD display, white backlight for displaying up to 3 measured values |
| Special features | Drinking water approval PP: ACS, DVWG, KTW, WRAS, NSF, KIWA |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
|
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
