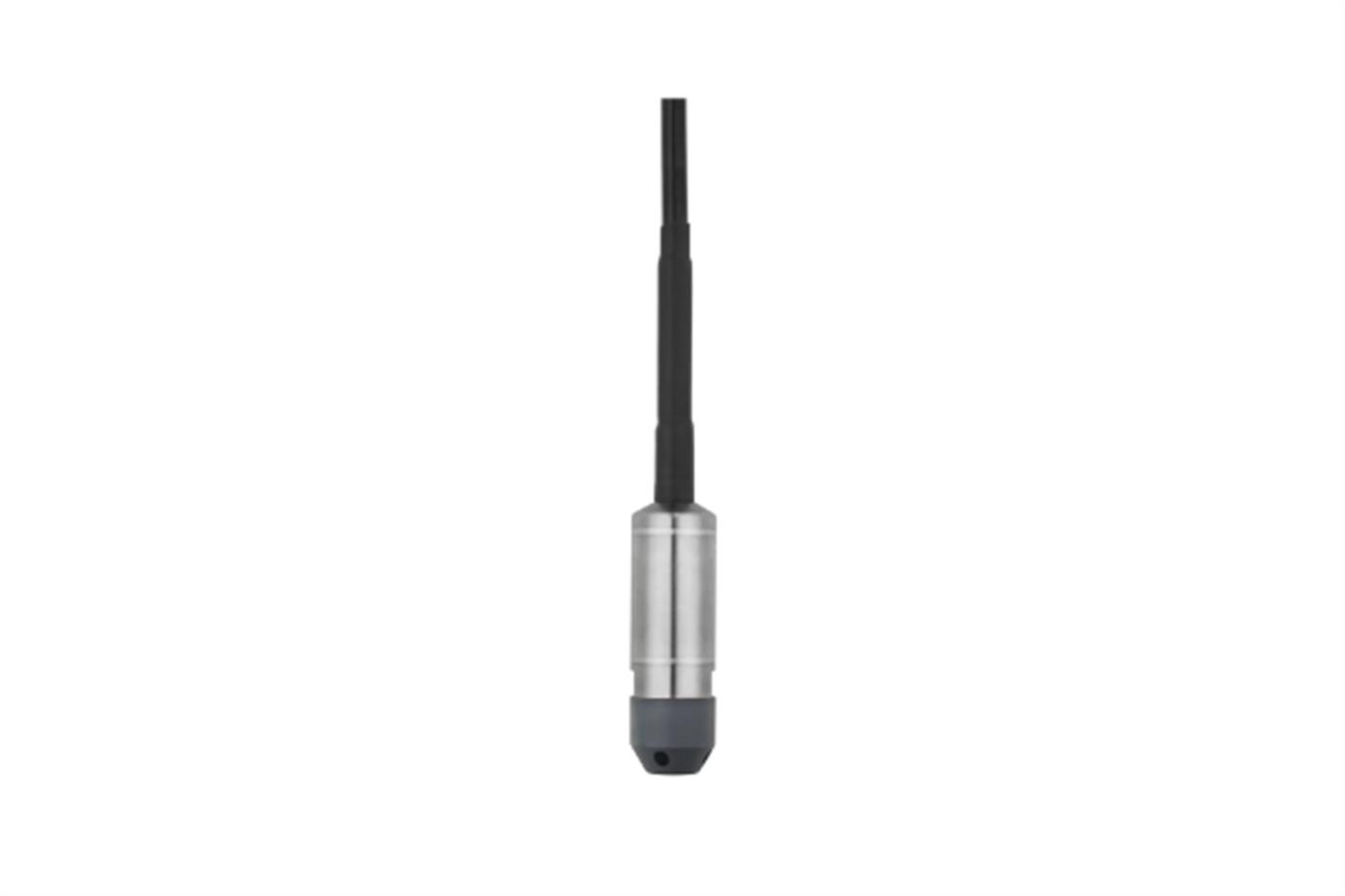

JUMO MAERA S29 SW
Level probe made of titanium or stainless steel
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 1 to 100 mH2O can be achieved. The level probe is used, among other places, in ballast water tanks, pumping stations, and splash water containers.
 |
 |
 |
|
Highly resistant
due to titanium design |
Approval for
explosion protection and shipbuilding |
Economical industrial
version |
GENERAL TECHNICAL DATA |
| Measuring range | 100 mbar to 10 bar (1 to 100 mH2O) |
| Medium temperature | 0 to 50 °C |
| Accuracy (linearity) | ±0.3 % |
| Output signal | 4 to 20 mA, two-wire |
| Housing material | Titanium or stainless steel |
| Cable material | FEP, PUR |
| Additional equipment | Reverse-polarity protection |
| Protection type | IP68 |
| Approval | ATEX; IECEx; EAC Ex [Ex i]; DNV; EAC |
| Declaration of manufacturer | CE |
| Application areas | Indoor installation, wastewater, well water, heating oil, car washes, diesel, seawater, caustic soda (20 %, 20 °C), rainwater, swimming pool (disinfectant: chlorine) |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. It can be used in ventilated tanks at filling heights from 2.50 to 10 mH2O. The level probe is used, among other places, in rainwater cisterns or in graywater recycling.
 |
|
|
|
Sturdy version
|
Low investment
costs |
Reverse-polarity
protection |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 2.5 to 100 mH2O can be achieved. The level probe is equipped with integrated overvoltage protection as a standard feature. Examples of where the level probe is used include water management, well water, and surface water.
|
|
 |
|
Drinking water
approval |
Sturdy version
|
Optional temperature
sensor Pt100 |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 0.5 to 16 mH2O can be achieved. The level probe is used, among other places, in water and wastewater management, electroplating baths, and in containers with aggressive media such as acids and lyes.
 |
|
|
|
Integrated overvoltage
protection |
High chemical
resistance |
Optionally with
temperature sensor Pt100 |
