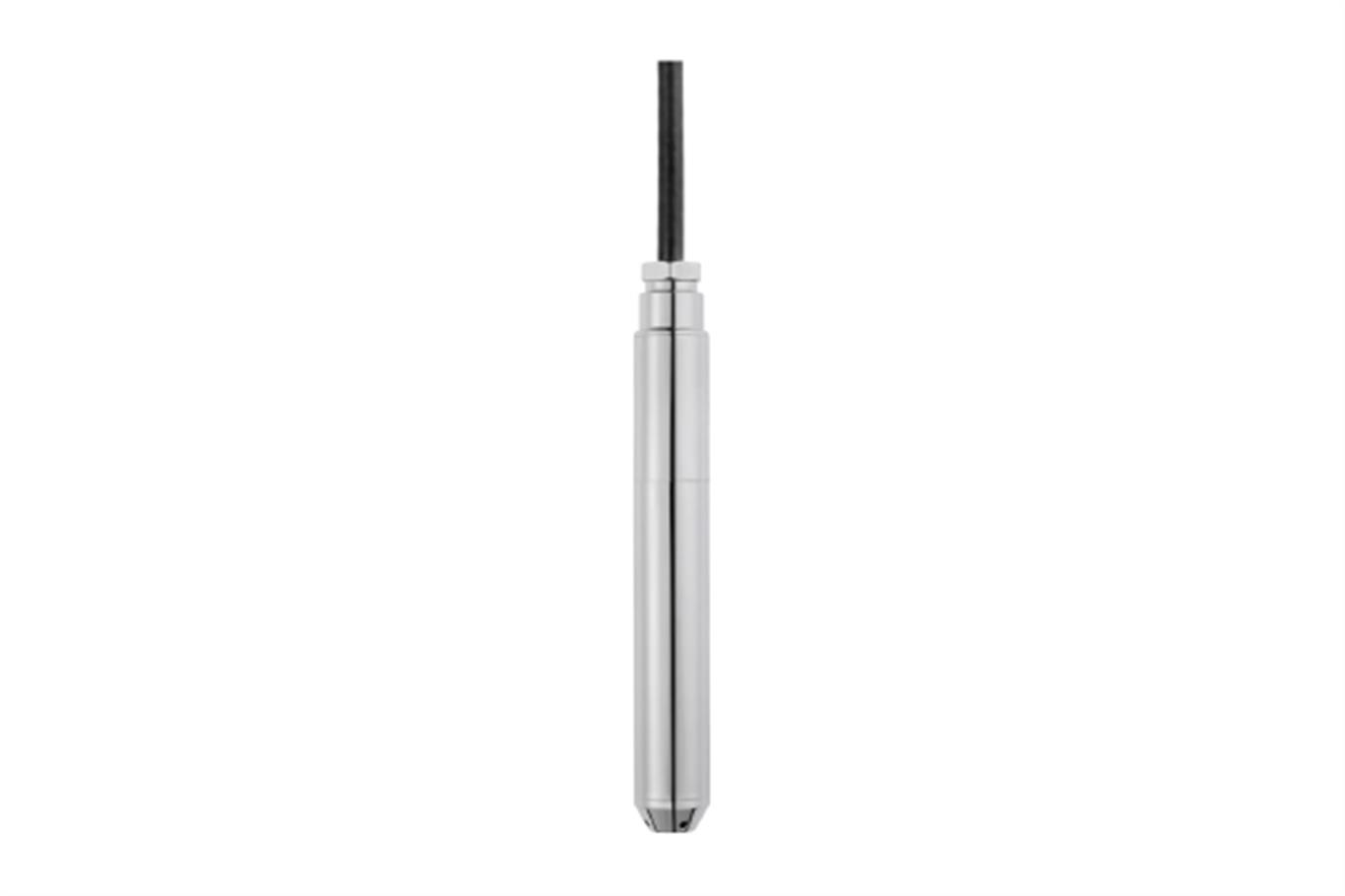

JUMO MAERA S28
Level probe
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 2.5 to 100 mH2O can be achieved. The level probe is equipped with integrated overvoltage protection as a standard feature. Examples of where the level probe is used include water management, well water, and surface water.
 |
 |
 |
|
Drinking water
approval |
Sturdy version
|
Optional temperature
sensor Pt100 |
GENERAL TECHNICAL DATA |
| Measuring range | 250 mbar to 10 bar (2.5 to 100 mH2O) |
| Medium temperature | 0 to 50 °C |
| Accuracy (linearity) | ±0.2 % (> 2.5 bar) ±0.3 % (<= 2.5 bar) |
| Output signal | 4 to 20 mA, two-wire |
| Housing material | Stainless steel |
| Cable material | PE, FEP, PUR, EPR |
| Additional equipment | Temperature sensor, overvoltage protection, reverse-polarity protection |
| Protection type | IP68 |
| Approval | Drinking water approval ACS; metrological certificate, EAC |
| Declaration of manufacturer | CE |
| Application areas | Outdoor or indoor installation, wastewater, well water (without salt content), drinking water, car washes, diesel, sodium hydroxide (20 %, 20 °C), rainwater |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
Level probe made of titanium or stainless steel
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 1 to 100 mH2O can be achieved. The level probe is used, among other places, in ballast water tanks, pumping stations, and splash water containers.
 |
|
 |
|
Highly resistant
due to titanium design |
Approval for
explosion protection and shipbuilding |
Economical industrial
version |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. It can be used in ventilated tanks at filling heights from 2.50 to 10 mH2O. The level probe is used, among other places, in rainwater cisterns or in graywater recycling.
|
|
|
|
Sturdy version
|
Low investment
costs |
Reverse-polarity
protection |
