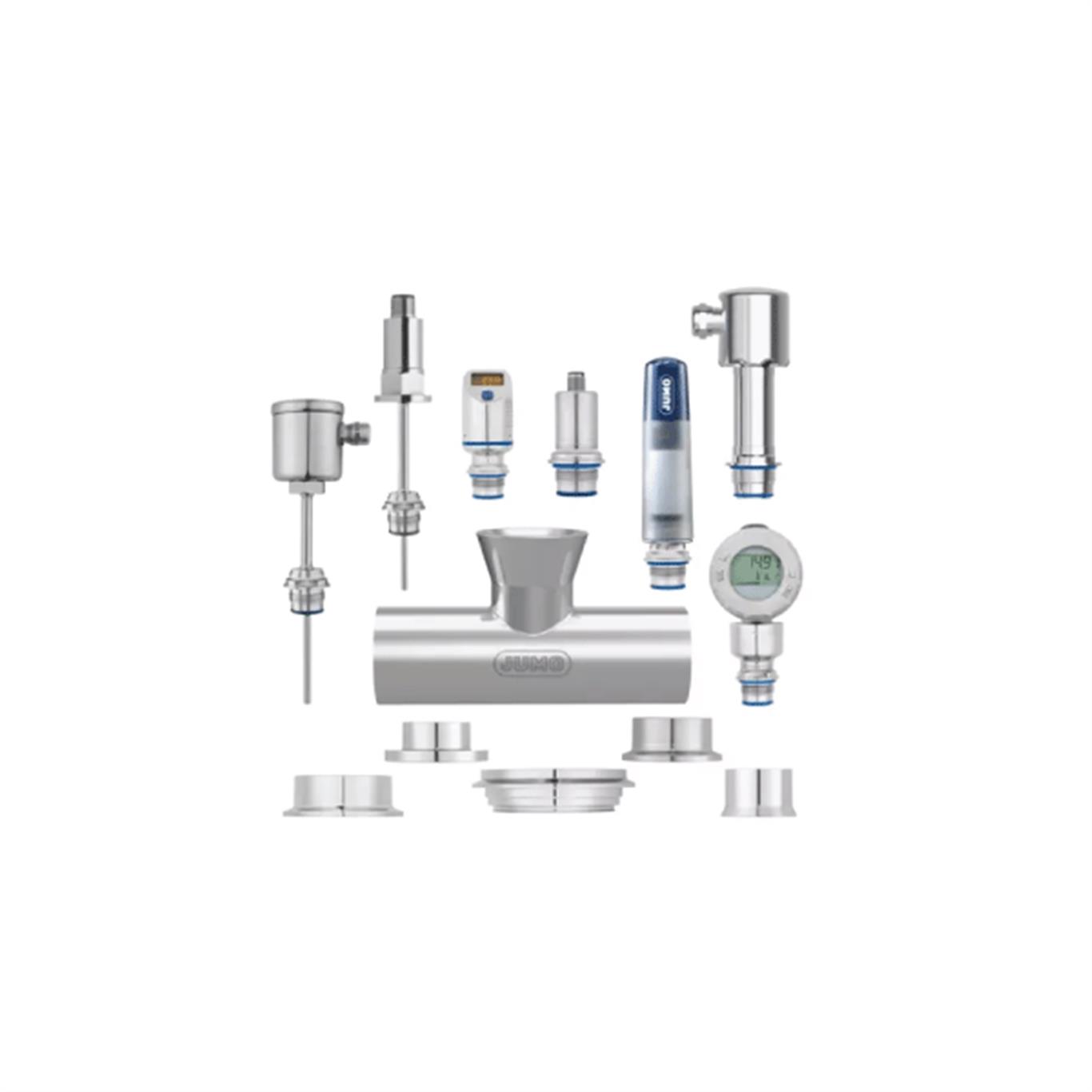

JUMO PEKA
Hygienic process connection
The process connection connects the measuring device with an application-specific process connection adapter. Based on an easy-to-clean design and a cavity-free system, the adapter system is specifically tailored to the requirements of hygienic processes.
 |
 |
 |
|
Any installation
position |
No microbial
contamination |
Modular adapter
system |
GENERAL TECHNICAL DATA |
| Connection adapter | VARIVENT®, clamp, aseptic, (orbital) welding socket |
| Connection | DN 25 to DN 50 |
| Sealing materials | FKM, VMQ, EPDM |
| Flange | Without flange or DRD flange |
| Miscellaneous | Can be combined with many JUMO measuring devices |
for pressure transmitters
Valve blocks can be used in connection with pressure measuring devices. They are used as a shut-off valve and for adjusting the zero point of the pressure measuring device.
 |
 |
 |
|
2, 3, and 5-valve
block |
Relative, absolute,
and differential pressure |
Valves made of
stainless steel |
With screw-in thread DIN ISO 228/1 or ANSI B 1.201

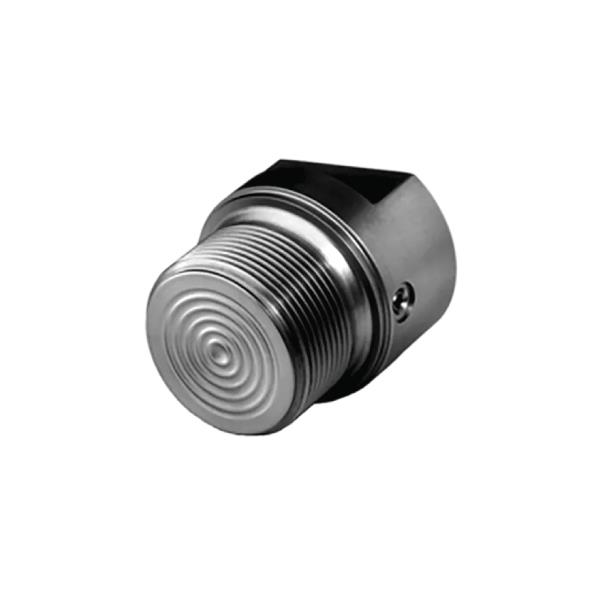

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
 |
 |
 |
|
Optionally
available with capillary tube |
Various process
connections |
2 screw-in
threads available |
With flange connection according to ANSI B 16.5
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to ANSI B 16.5 and is available with a sealing strip type RF.
 |
 |
|
|
Optionally
with tube |
Optionally with
PTFE coating |
Various process
connections |
