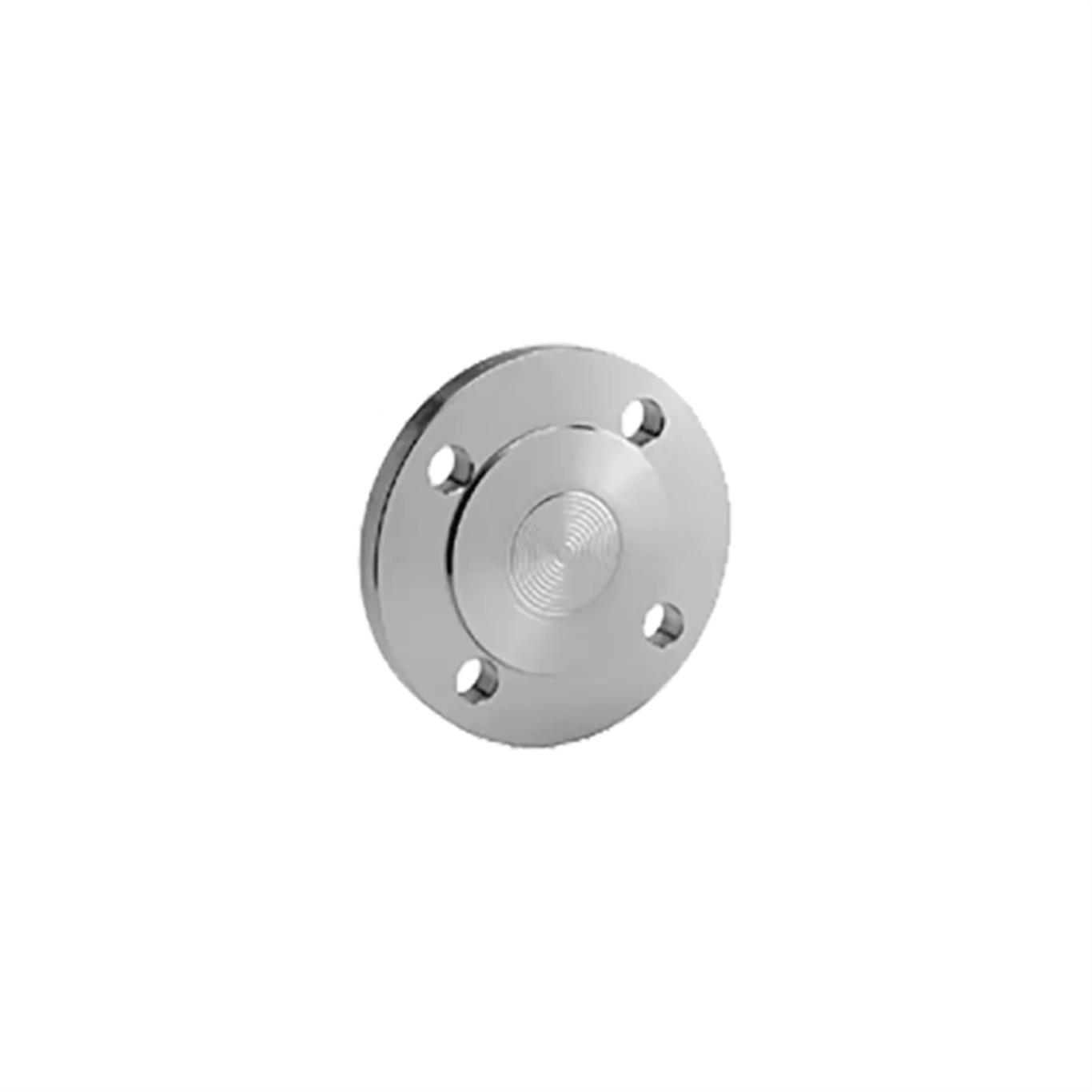

Diaphragm seal 409776
With DRD flange or VARIVENT® socket
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
 |
 |
 |
|
DRD flange or
VARIVENT® available |
Optionally with
capillary tube |
Various process
connections |
GENERAL TECHNICAL DATA |
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Process connection | DRD flange: diameter = 65 mm, VARIVENT® socket: diameter = 68 mm |
| Material | Stainless steel |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |
| Weight | 0.8 kg |
Hygienic process connection
The process connection connects the measuring device with an application-specific process connection adapter. Based on an easy-to-clean design and a cavity-free system, the adapter system is specifically tailored to the requirements of hygienic processes.
 |
 |
 |
|
Any installation
position |
No microbial
contamination |
Modular adapter
system |
for pressure transmitters
Valve blocks can be used in connection with pressure measuring devices. They are used as a shut-off valve and for adjusting the zero point of the pressure measuring device.
 |
 |
 |
|
2, 3, and 5-valve
block |
Relative, absolute,
and differential pressure |
Valves made of
stainless steel |
With screw-in thread DIN ISO 228/1 or ANSI B 1.201
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
|
|
 |
|
Optionally
available with capillary tube |
Various process
connections |
2 screw-in
threads available |
