ECO Pulse Amplifiers

ECO Pulse Amplifiers

Pickups and Amplifiers

Single / double tap with different output functions

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

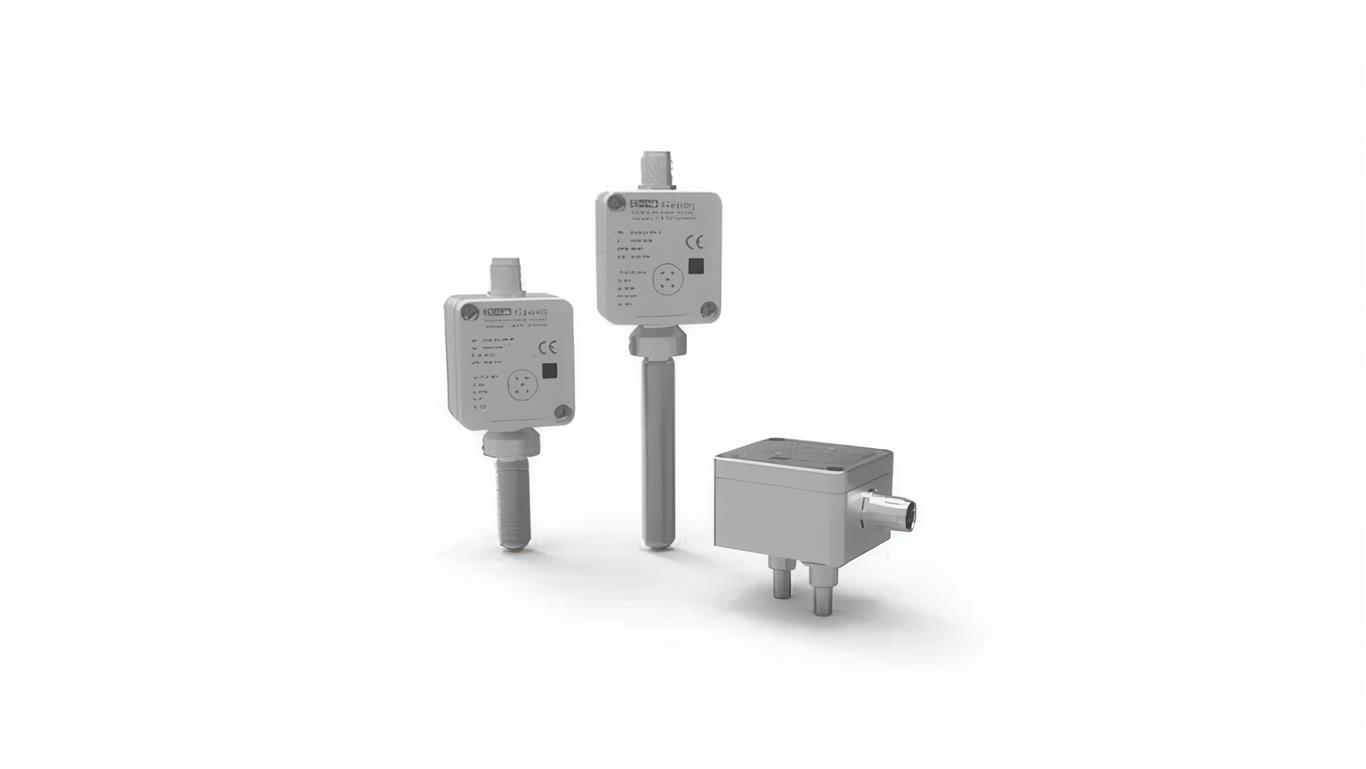

KEM's ECO pulse amplifiers can be equipped with all KEM flow meters. The amplifier system includes a single tap with temperature range up to +150 °C and double tap for higher resolutions or bi-directional flow measurement with standardized push-pull output stage.

Features & Benefits

  • Compact design for flow meters
  • Medium temperatures up to +150°C [+302°F]
  • Scalable analog and digital outputs
  • Flow direction detection
  • Customer configurable
  • Linearisation with up to 20 points possible
  • Integrated Medium Temp. Measurement
Power Supply (Vcc) 12 ... 28 VDC, regulated
Current Consumption < 25 mA
Frequency Range 1 ... 5.000 Hz;
suitable for all KEM volumetric counters
Ambient Temperature -40 °C ... +60 °C [-40 °F ... +140 °F]
Medium Temperature Flush-Mount (1-or 2Channel)
-40 °C ... +80 °C [-40 °F ... +176 °F]
Output Signal 1:1- Frequency or Direction signal & doubled Frequency scaled output values
Protection Class Aluminium IP65
Stailness Steel IP68 with closed electical connection
Modular Pulse Amplifiers – Datasheet ECO Series Dowload PDF
Modular Pulse Amplifiers – Manual ECO Series Dowload PDF
