ecom-D - EXTREMELY powerful
exhaust gas analysis for industrial applications
EXTREMELY powerful.

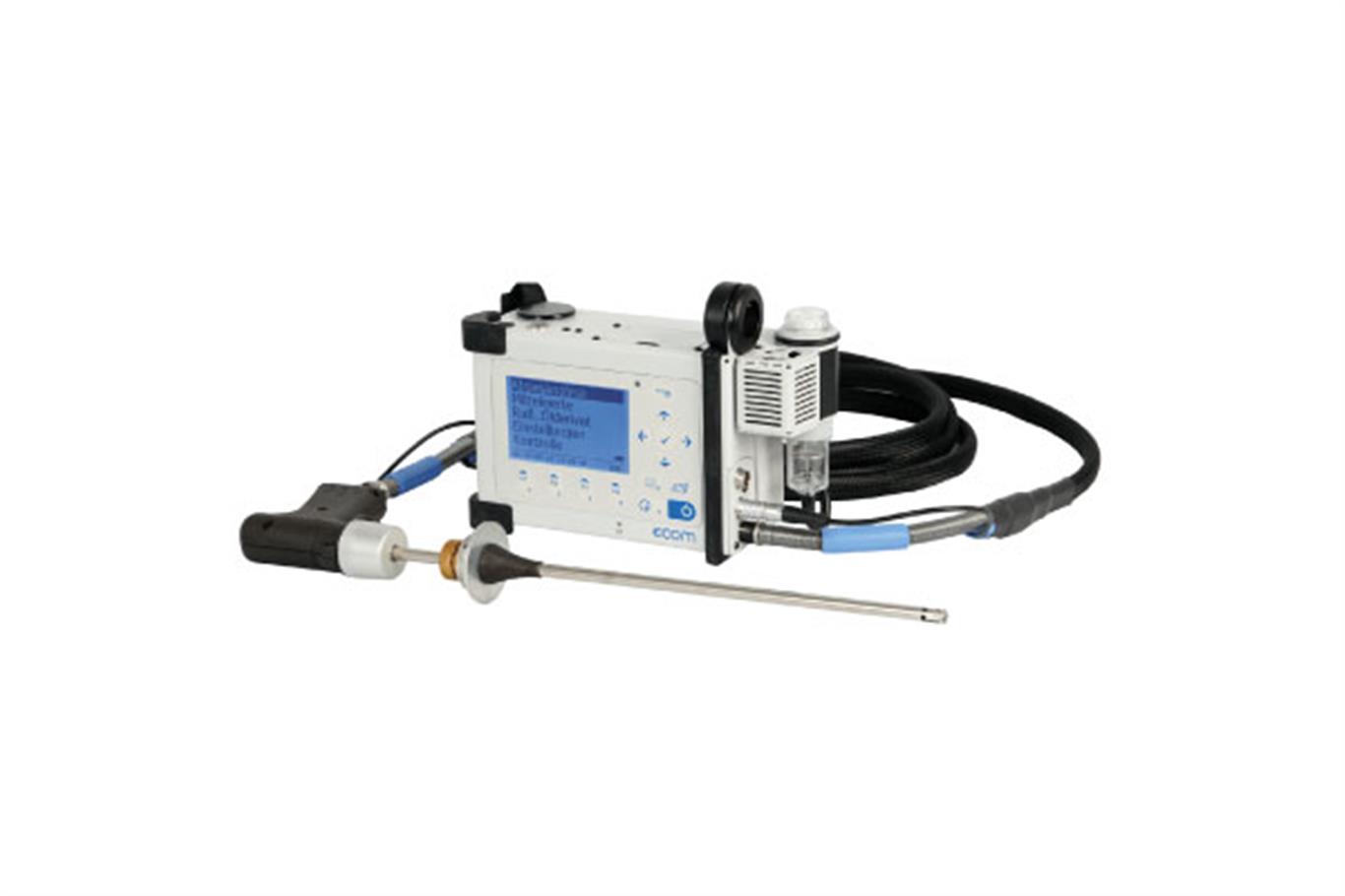

ecom-D
exhaust gas analysis for industrial applications
- Handy exhaust gas measuring device with measuring gas cooler option
- for the perfect NO2 / SO 2 measurement
- up to 6 sensor options (longlife sensors) possible
- Direct measurement of CO2 possible via IR sensor
- Measurement of hydrocarbons possible via IR sensor
- CO sensor overload protection without measurement interruption
- Electronic condensate monitoring
- display and keyboard illuminated
- aluminum housing (ultralight)
O2
CO
NO
NO2
SO2
H2S
H2
CO%
CO2
CxHy
H2S
CH4
EXTREMELY
precise
EXTREMELY
roust
EXTREMELY
safe
EXTREMELY
broad reach
EXTREMELY
complete
EXTREMELY
lossless
EXTREMELY
cool- with O2 /CO (H2 comp.) - longlife sensors
- automatic CO shutdown and flushing (but without interrupting the measurement)

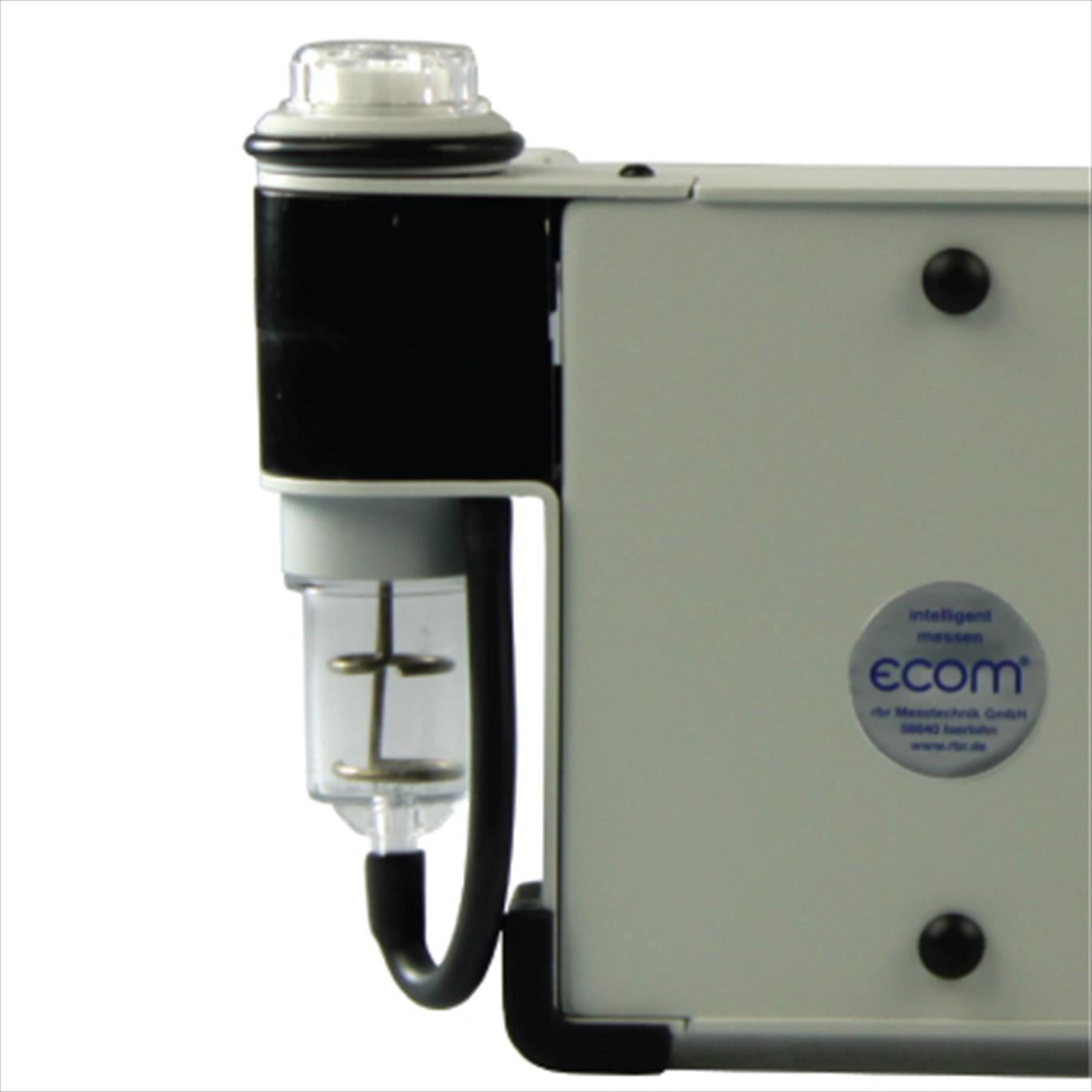

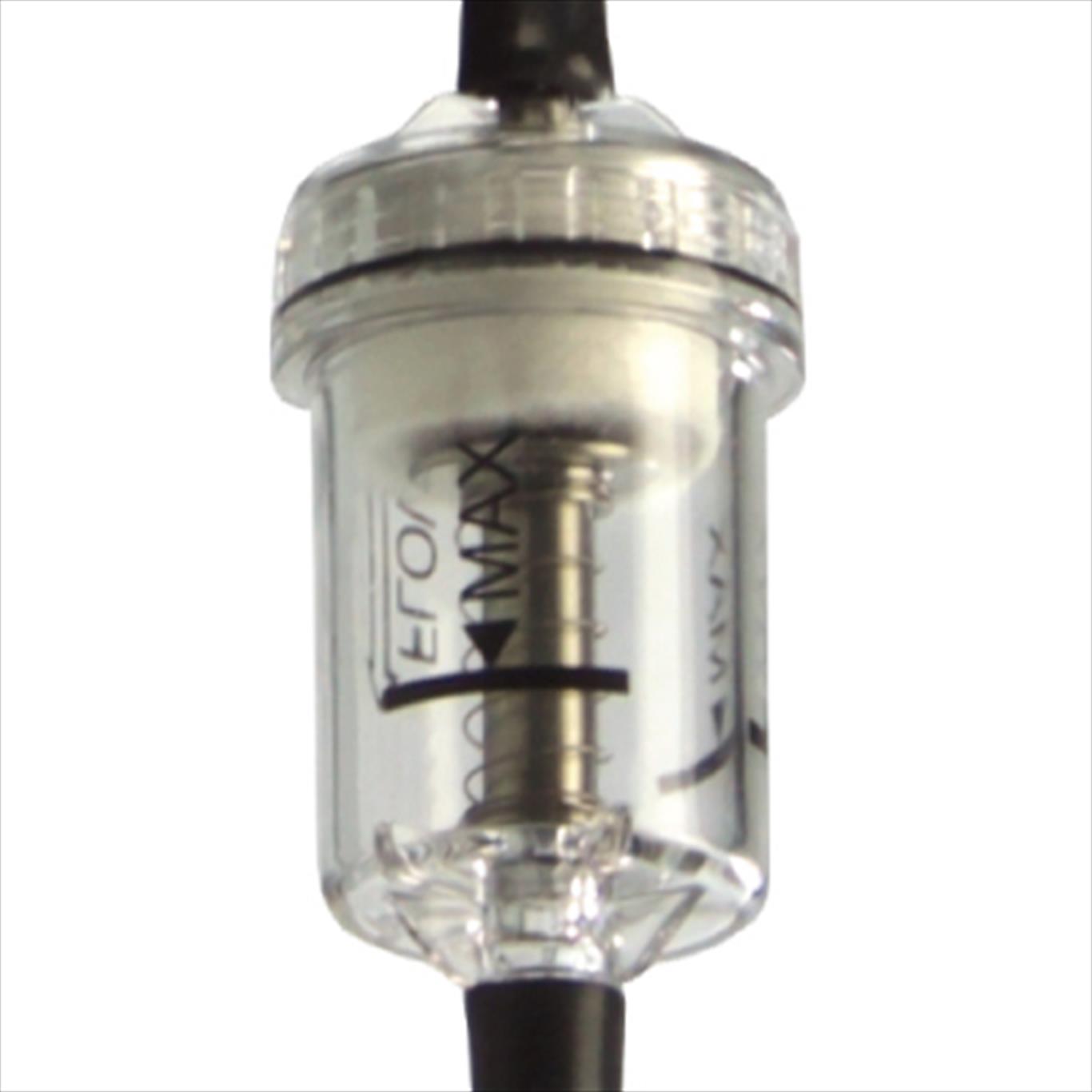

- Condensate trap or sample gas cooler plus electronic condensate monitoring (depending on which equipment variant is selected)
- integrated LiFePo4 high-performance battery thus long device runtime
- wireless data transfer (e.g. to a smartphone or tablet)

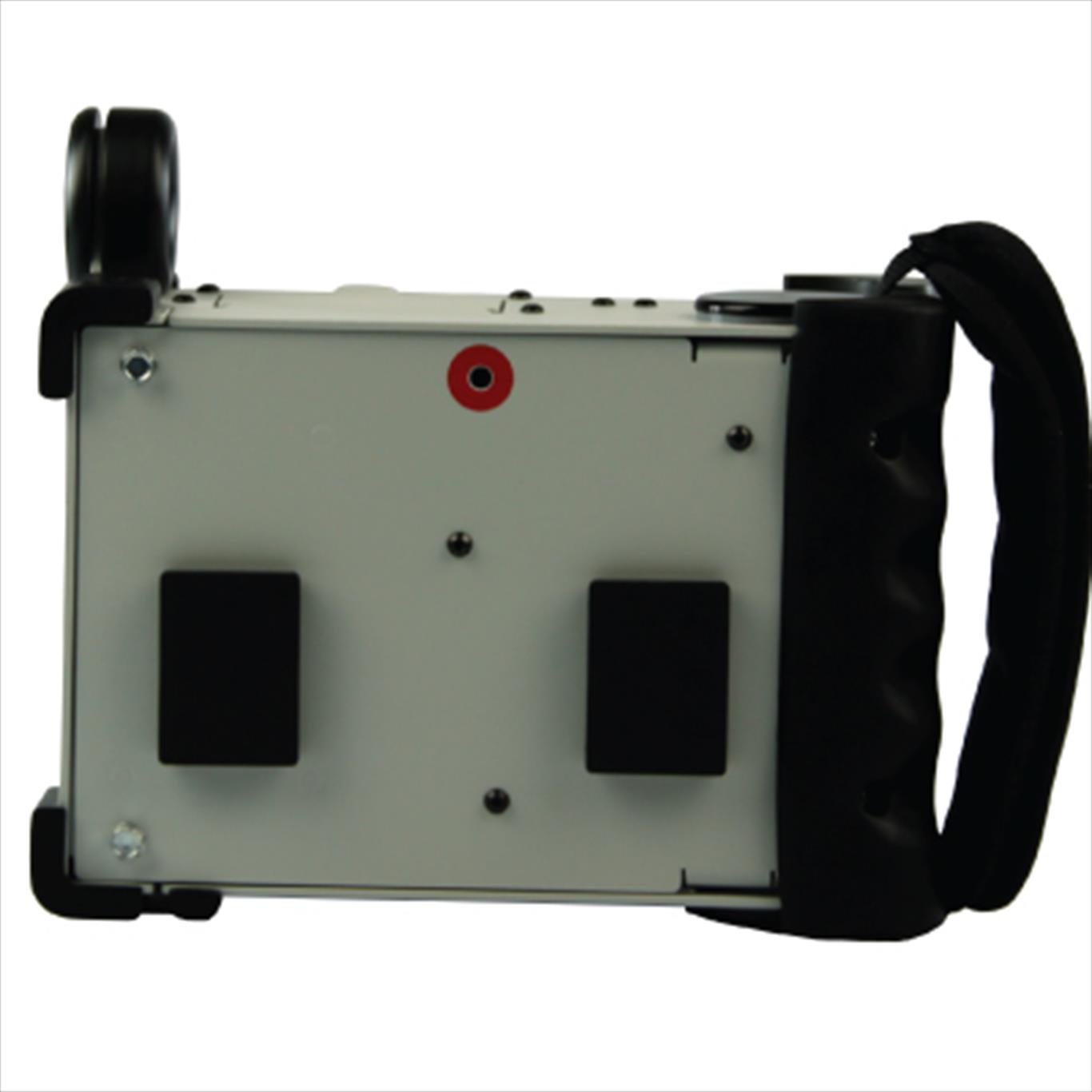

- strong magnets on the back of the case for attachment to metal surfaces
- complete with high-quality sampling probe including thermocouple, cone and high-quality hose
- T-room sensor or T-room stick (depending on your requirements or equipment variant)
- Operating instructions and calibration certificate - created after 100% - sensor calibration in the climate chamber
- ecom service package (including free PC software)
Dimensions
(W x H x D): 220 x 125 x 85 mm
Weight
approx. 2 kg (complete with probe and probe hose)
 |
 |
|
Testing according to DIN EN 50379-2 and 1. BImSchV. |
UKCA approved |
Biogas option package for raw gas analysis
(Extension for ENGINE variant)
- CH4 (NDIR) sensor, 0-100 %
- H2 S (EC) sensor, 0-5000 ppm
- Viton extraction hose, 3 m
- NO x calculation via NO measurement value or NO hoặc NO x ; measurement
- higher resolution and accuracy in the NO Low (0 - 300 ppm) or NO 2-Low (0 - 100 ppm) range
- additional sensor options (SO2 , H2 S, H 2 , CO%)
- CO2 - direct measurement and Cx Hy - measurement (calibrated to methane) with infrared measurement (NDIR measurement method)
- NOx hoses in lengths from 3.5 to 10 m
- interchangeable probe attachments in various lengths between 250 and 1500 mm (also in high-temperature and flexible versions)
- ecomFORT - Devices FULL Service
Biogas option package for raw gas analysis
(Extension for ENGINE variant)
- CH4 (NDIR) senso, 0-100 %
- H2 S (EC) senso, 0-5000 ppm
- Viton extraction hose, 3 m
- thermal printer module with IR interface
- transport bag
- various filter options – including for solid fuel measurement
- various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
