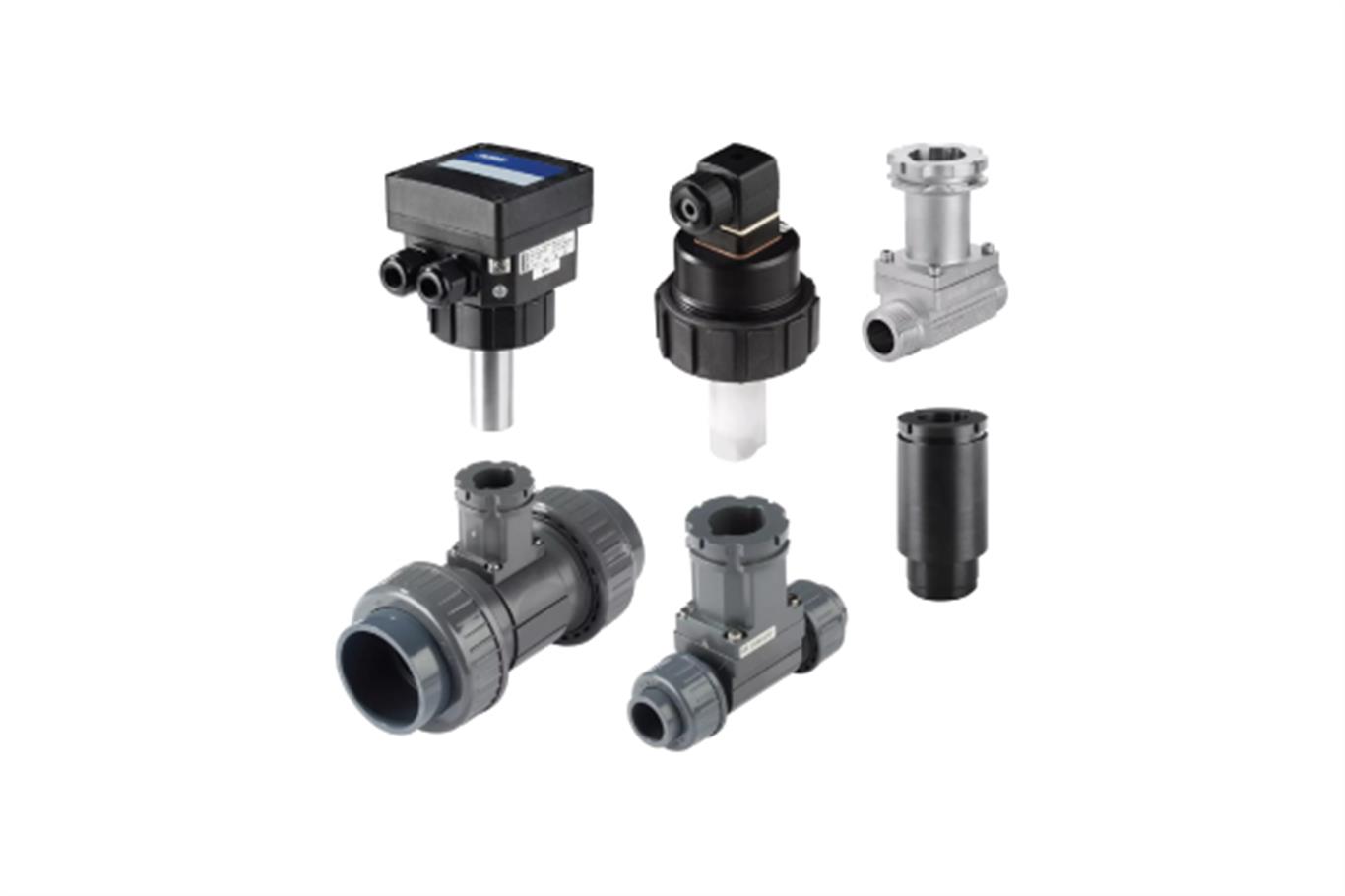

Fittings
For flow sensors
With the assistance of the fittings, the push-in devices MID flow transmitter (type 406010 & 406011) and the paddlewheel flow sensor (type 406020) are integrated into the pipe. In addition to the T-fittings for screw connection, welded sockets and pipe clamps are available.
 |
 |
 |
|
Process connections
DN 15 to DN 400 |
Choice between plastic
and stainless steel |
Minimal installation
effort |
GENERAL TECHNICAL DATA |
| Nominal widths, T-fitting (PVC or stainless steel) | DN 15 to DN 50 |
| Nominal widths, welded socket (PE) | DN 65 to DN 400 |
| Nominal widths, welded socket (stainless steel) | DN 50 to DN 350 |
| Nominal widths, connection clamp (PP) | DN 50 to DN 200 |
| Sealing material | FKM; EPDM |
Related products

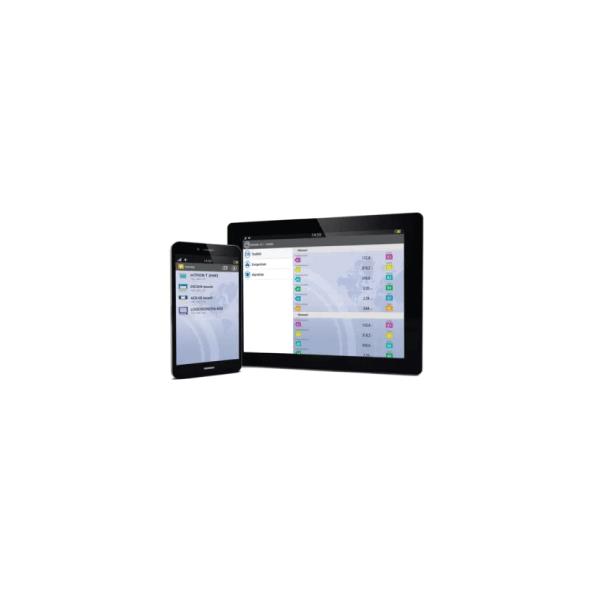

JUMO Device App
