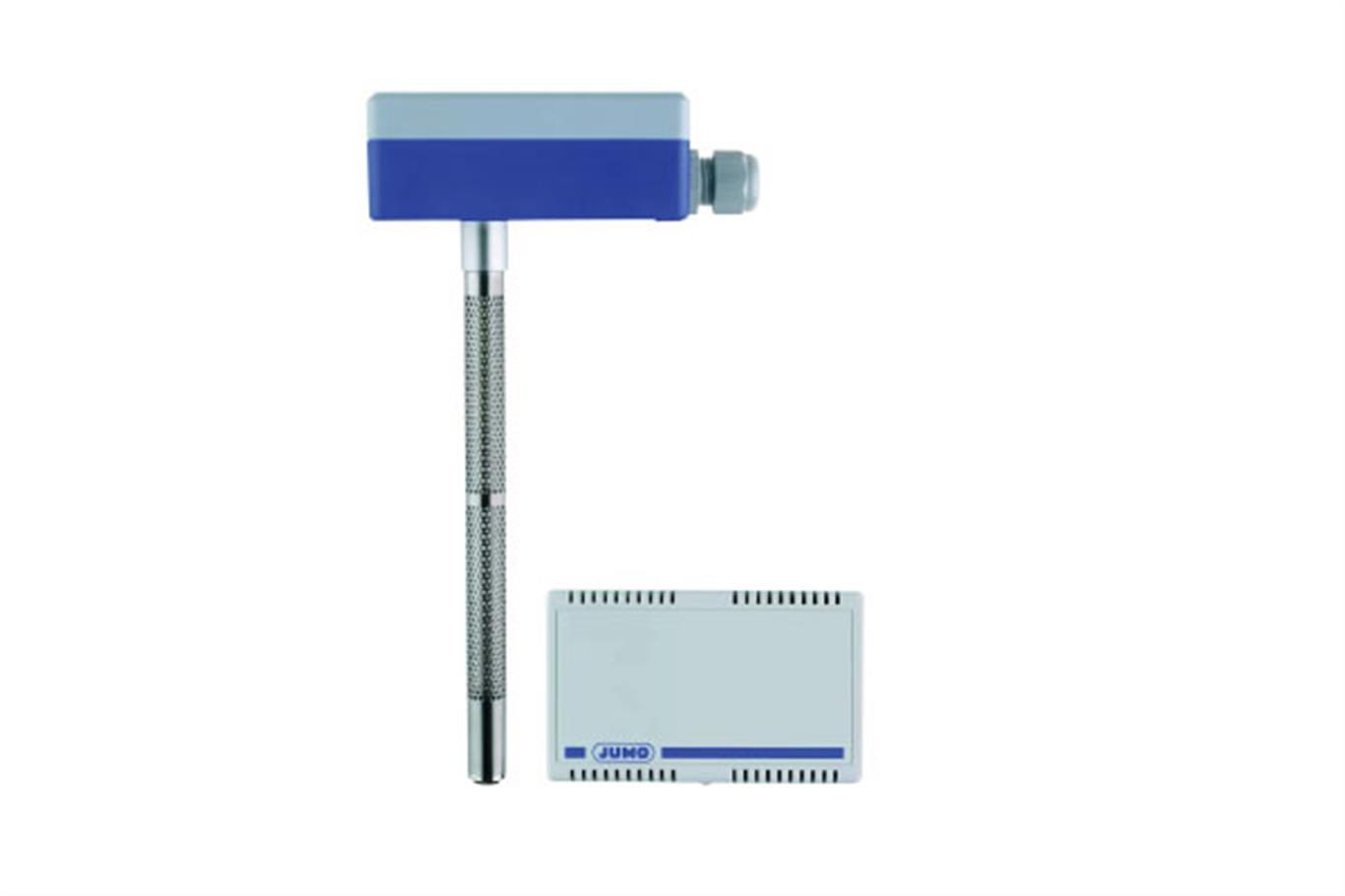

Hygrostats 907032
Hygrometric
Hygrostats are primarily used as simple two-state controllers to control the relative humidity in conditioning cabinets and air ducts as well as to control air humidifiers and dehumidifiers in the building technology industry.
 |
 |
 |
|
Cost-effective
|
Adjustment
protection |
Maintenance-free
|
GENERAL TECHNICAL DATA |
| Measurement medium | Air, pressureless (non-aggressive) |
| Outputs | Switching output, floating changeover contact max. AC 250 V/15 A, depending on the version, also with double contact. |
| Measuring range | RH = 30 to 100 % RH |
| Application | Humidifying and dehumidifying, storerooms, cold-storage rooms, greenhouses, control cabinets |
| Version | Indoor and duct version |
| Protection type | IP20 indoor version, IP64 duct version |
| Sensing element | Hygrometric (water-resistant element) |
| Special features | Indoor version also suitable for flush-mounted box assembly, duct version can be used permanently in high humidity, mains voltage not required, sensing element largely maintenance-free, adjustment protection |
| Accessories | Holders, sun and rain protection, filter tubes |
