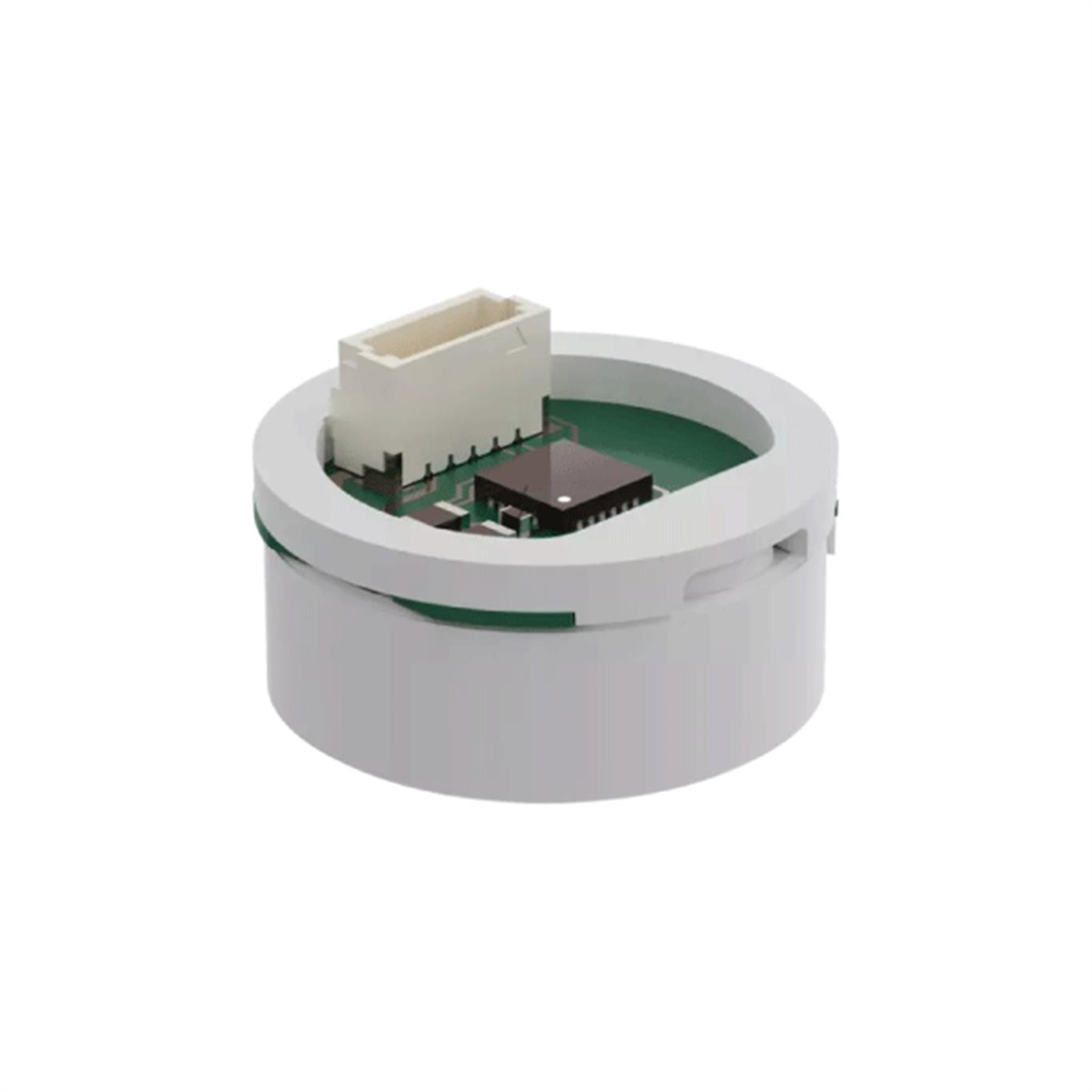

JUMO CEROS C02 M
Digital low-energy pressure measuring cell
You can rely on the digital pressure measuring cell for relative pressure due to high degree of measuring accuracy and long-term stability. In addition, it is characterized by low energy requirements and can therefore be operated with battery voltage. The active module is ready for immediate use and saves expensive calibration systems due to prior calibration and temperature compensation by JUMO.
 |
 |
 |
|
Low energy
requirements |
Calibrated and
temperature compensated |
Digital I²C
interface |
|
|
|
|
|
High accuracy and long-term stability
GENERAL TECHNICAL DATA |
| Sensor | Thick film ceramic sensor |
| Measuring principle | Relative pressure measurement |
| Measuring range | 100 mbar to 60 bar relative |
| Input voltage | U3.3 V |
| Output | I²C protocol |
| Signal resolution | 16 bit |
| Current consumption | < 1 mA (operating mode), < 50 nA (sleep mode) |
| Response time T90 | < 3 ms |
| Accuracy | < 0.4 % |
| Linearity | < 0.2 % |
| Temperature range | -40 to +120 °C |
| Housing material | Ceramic (Al₂O₃) |
| Features | Vibration and shock-resistant |
| Special features | Battery operation possible, fully calibrated and temperature compensated signal, subsequent zero point adjustment possible via setup program, customized solutions possible |

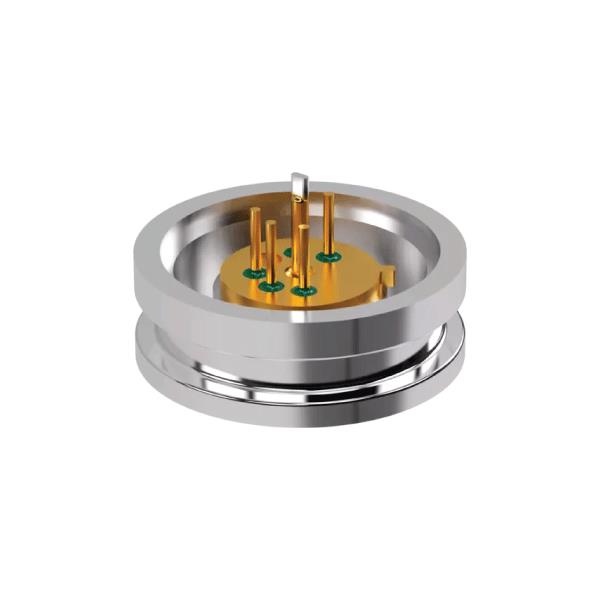

For OEM applications
The product records relative and absolute pressure between 0 to 350 mbar and 0 to 100 bar. The measuring principle is based on piezoresistive measurement technology with a silicon semiconductor thin-film strain gauge here. The measuring cells can be used within the entire OEM range.
 |
 |
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
Digital pressure measuring cell
The pressure measuring cell provides a temperature compensated and calibrated digital/analog output signal. The piezoresistive sensing element with integrated signal processing is hermetically encapsulated. It ensures stable, precise linearity and accuracy values even under adverse conditions.
 |
 |
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
