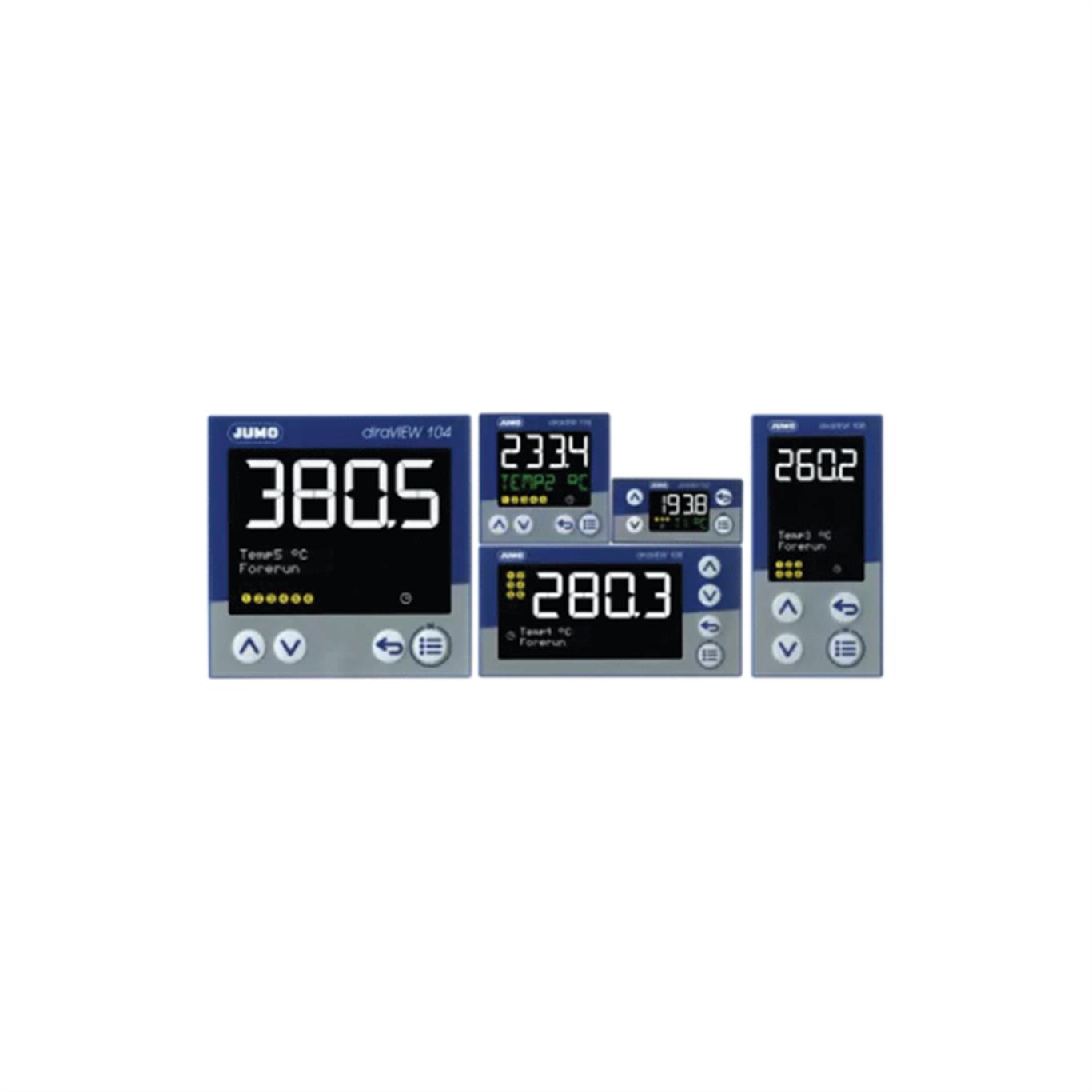

JUMO diraVIEW 104/108/116/132
Digital indicator
Devices that can be used universally in various DIN formats to display process variables. The basic version includes a min/max value function, a hold function, a taring function, limit value monitoring functions, digital control signals, timer functions, and a service counter.
 |
 |
 |
|
Creation of individual
ST code application |
Intuitive configuration
and operation |
Fast and simple
startup |
GENERAL TECHNICAL DATA |
| Display | 18-segment LCD display, display elements for switch position of the outputs and timer, pixel matrix LCD display (only type diraVIEW 108 and diraVIEW 104) |
| Inputs | 1 user configurable analog input for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage 0(2) to 10 V, resistance transmitters, resistance/potentiometers |
| Outputs | 701510: 1 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); 701511: 2 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); optionally: analog output, relay; 2 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); optionally: analog output, relay, PhotoMOS® relay |
| Digital inputs | 2 digital inputs for potential-free contacts (digital input 1 alternative to logic output) |
| Calibration accuracy | 0.1 %; 0.25 % |
| Galvanic isolation | 3000 V (measurement input for supply) |
| Special features | Math and logic functions, ST code programming, min/max value memory and display, hold function, service and operating hours counter, tare function for weighing applications |
| Formats | 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Installation | Panel cut-out or DIN rail adapter |
| Interfaces | Setup interface (USB powered), RS485 interface (optional) |
| Ambient temperature | -10 to +55 °C |
| Alarms | 4 × limit value monitoring function |
| Connections | Spring-cage terminals, PUSH IN terminal technologys |
| Protection type | IP65 |
| Voltage supply | AC/DC 20 to 30 V, AC 110 to 240 V |
Multifunction digital indicator with PLC function
The multifunctional digital controller impresses with the individual design of its user interface and hardware equipment. Analog and digital inputs and outputs, counting inputs, as well as interfaces can be flexibly added to display the required process variables. The indicator masters even complex applications with math and logic functions as well as the implementation of control functions via ST code.
 |
|
|
|
High degree of
interface connectivity |
Intuitive configuration
and operation |
Quick and simple
startup |
Temperature limiter/monitor
The JUMO safetyM TB/TW is a user programmable limiter/monitor. The universal measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.
 |
 |
|
|
Setup program
|
Universal measurement
input |
Alphanumeric
LCD display |
Safety temperature limiters and monitors according to DIN EN 14597 and ATEX approval
The compact and user configurable JUMO safetyM STB/STW Ex can enable early and reliable detection of risks in Ex areas which could potentially result in personal injuries, environmental damage, or destruction of the production facilities and production goods.
|
 |
 |
|
Setup program
|
Intrinsically safe
inputs [Ex ia] |
Ignition source
monitoring |
