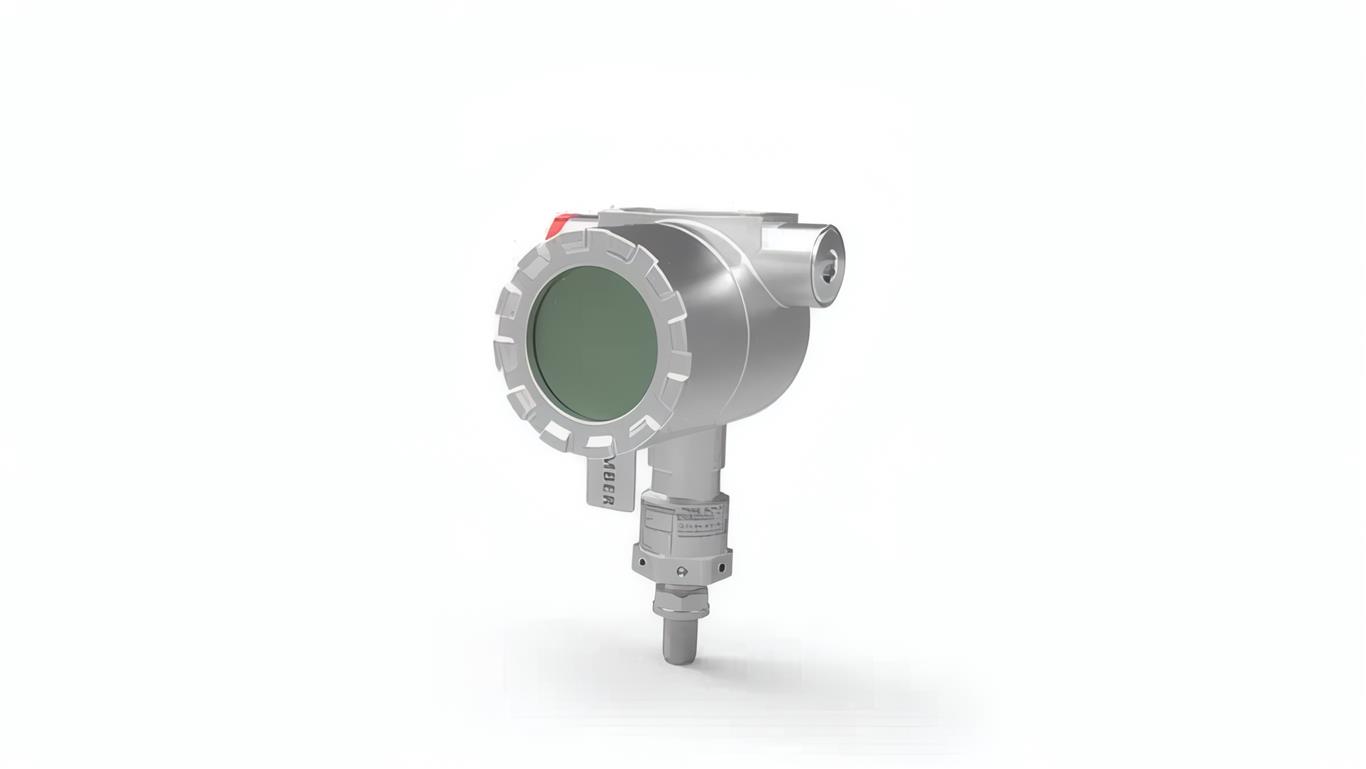

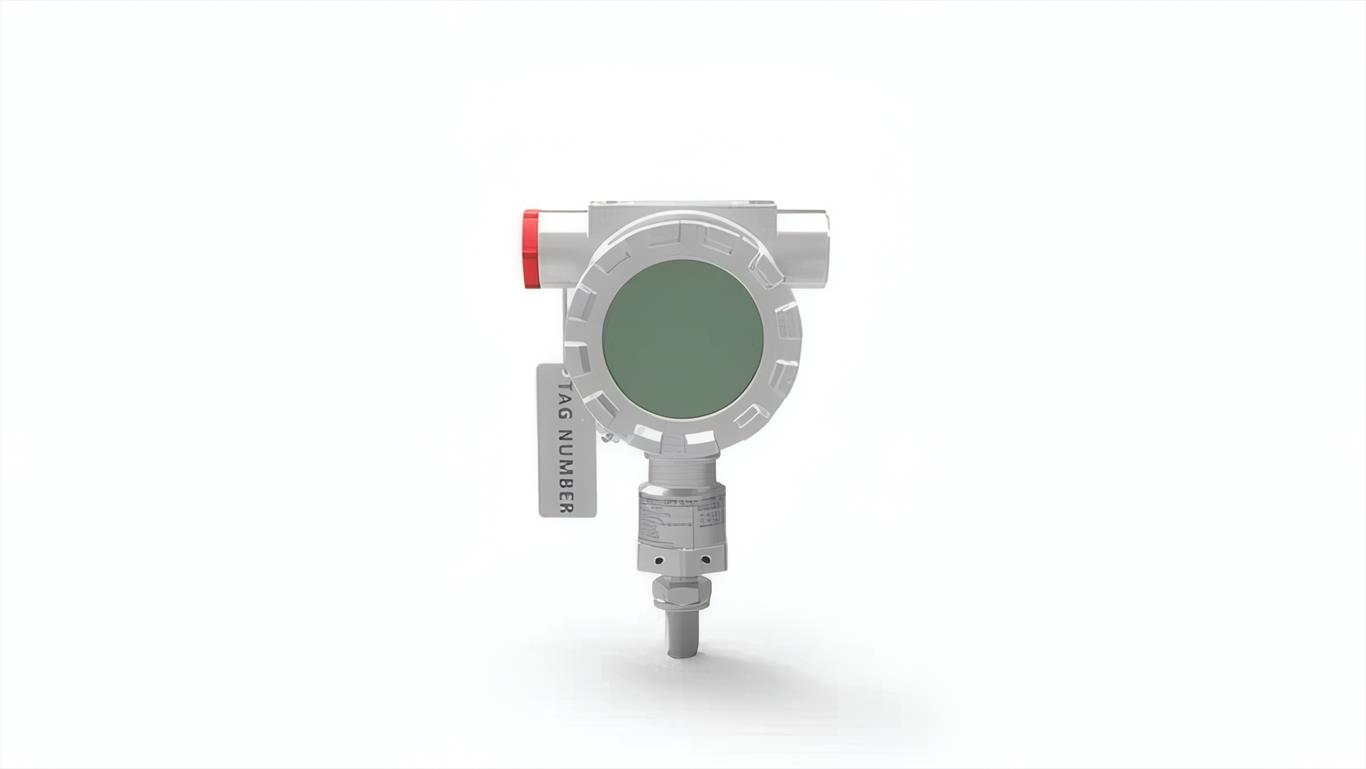

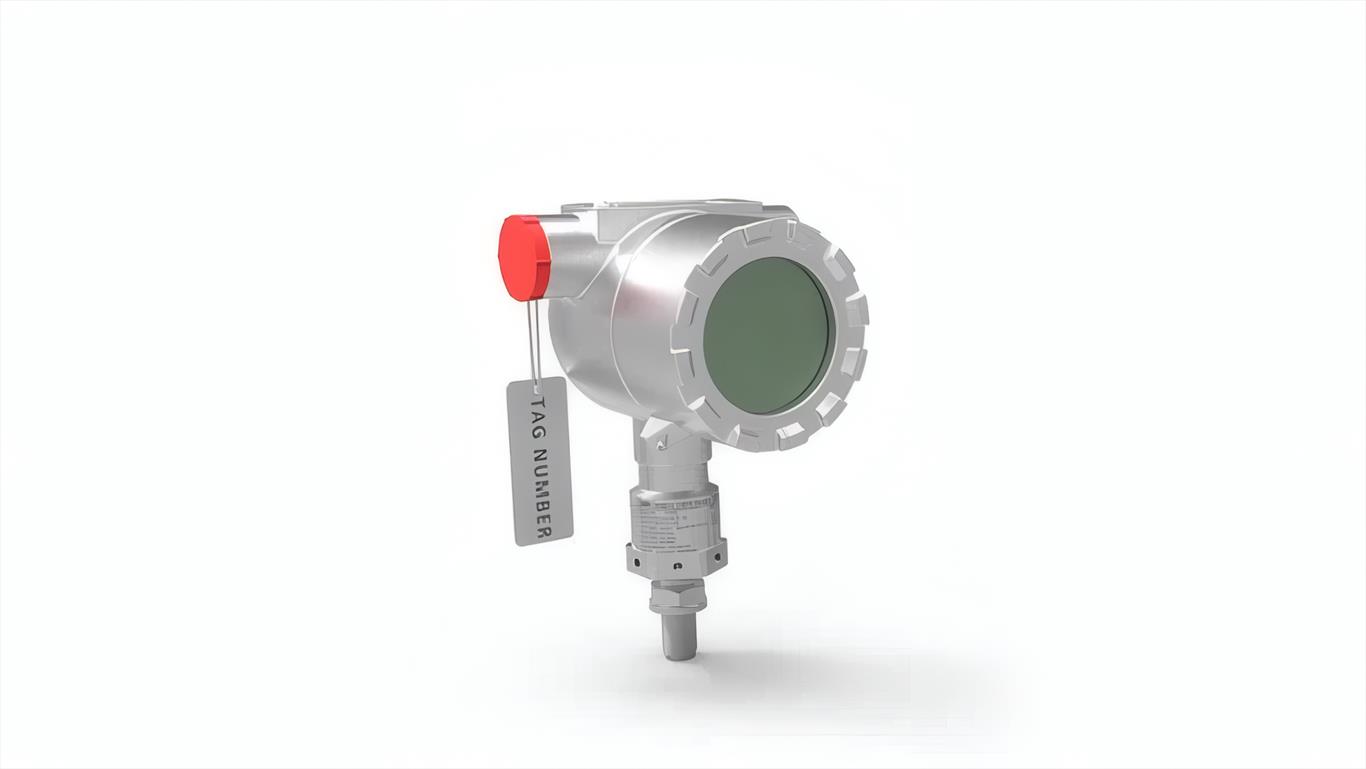

Local Display (FlowPod)
with HART and Exd certification
The FlowPod display analysis unit is a high-precision 2- or 4-wire 4 - 20 mA display. All devices of the series have a graphical interface, intuitive user guidance, an adjustable 4 - 20 mA output, a linearization option and a digital output for flow, limit and batch. Since K-factor and dimension are freely selectable, they can be adapted to each flow meter and for each application.
The FlowPod display also has a memory card interface that allows easy transfer of calibration data in the field without removing the FlowPod.
The display can either be direct mounted or remote mounted with a suitable armored signal cable. The standard specification includes the HART 7-protocol on a 2- or 4-wire 24 V DC powered system.
