Plug-in power supply AN003

Plug-in power supply AN003

Plug-in power supply 24 V DC / 1 A output, 100 – 240 V AC, 2 m cable length, M12-plug connector (screwed)

Request a quote
Introduction Technical Data

Plug-in power supply AN003

  • Plug-in power supply 24 V DC / 1 A output, 100 – 240 V AC, 2 m cable length, M12-plug connector (screwed)
  • For direct use with IL 30.0xx
  • SS 20.700 usable with "Adapter cable M12, 8/4-pole" (550885)
  • SS 20.400 usable with "Interface Splitter 4xx"
  • Art.-No. 571 630
  • SCHMIDT Technology – Simply a question of better measurement

Electrical data
Supply voltage 100 … 240 VAC; 50 … 60 Hz
Supply current < 0.8 A
Output voltage 100 … 240 VAC; 50 … 60 Hz
Output current Max. 1 A
Efficiency level VI (no-load power: < 0.1 W)


Operating temperature
Operating temperature 0 ... +40 °C
Storage temperature -20 ... +70 °C


General data
Output Short-circuit protected (switching)
Electrical connection Plug-in connector M12, female, A-coded, 5-pin, screwed
Cable length (output) 2 m
Humidity < 90 % RH
Protection type Enclosure: IP40
M12 connetion: IP67 (only with correctly attached connecting cable)
Protection class II
Weight 180 g
Material Enclosure: PPE
Cable sheath: PVC


Dowloads
Instructions for Use (571632, Rev. A) Dowload PDF
Related products

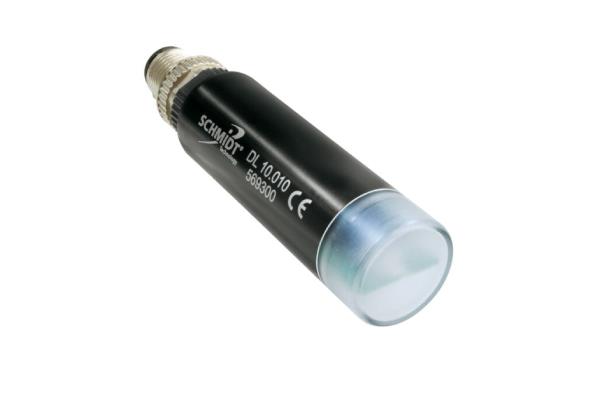

SCHMIDT® Data Logger DL 10.010
