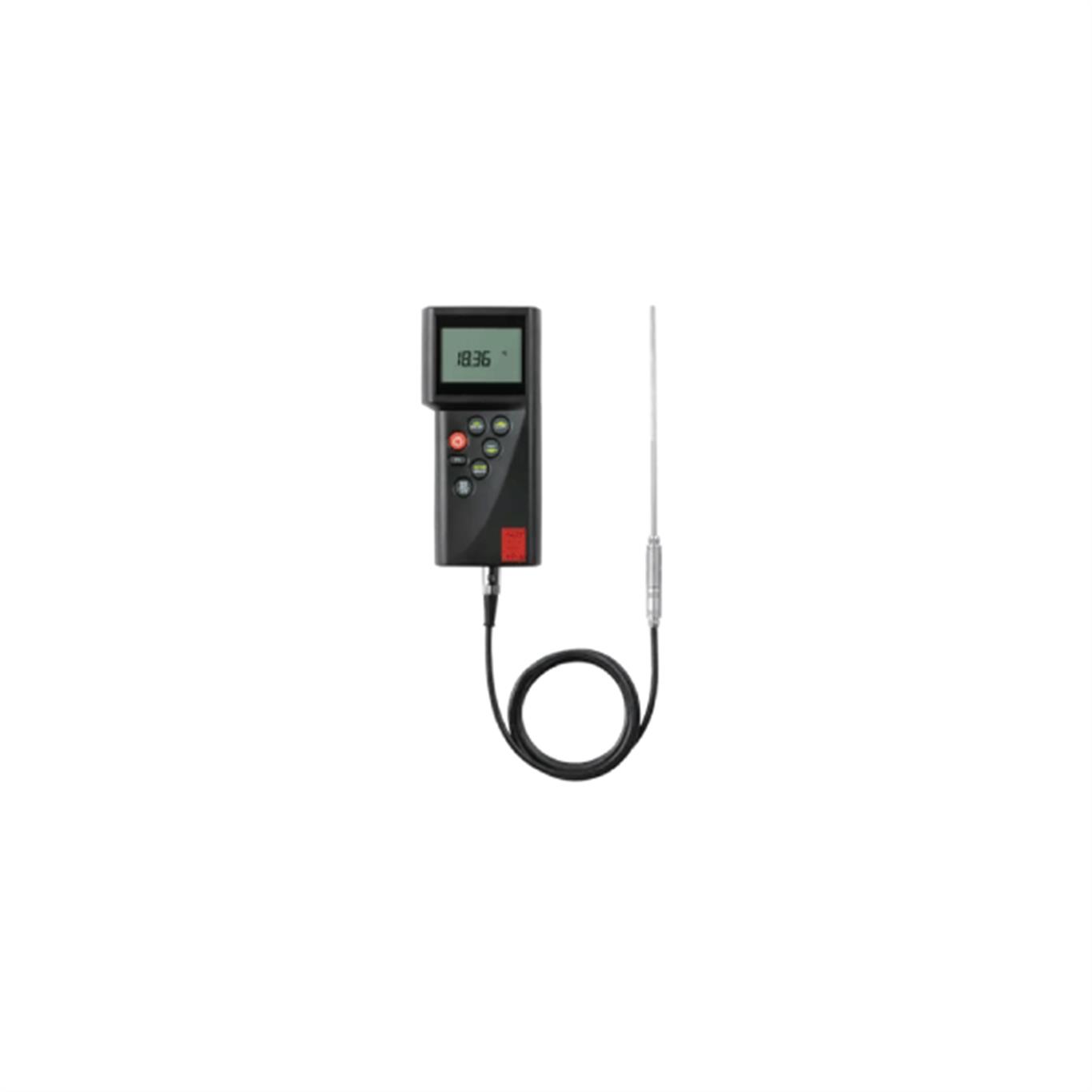

Precision indicating device
Test equipment for temperature and its traceability
The product is for monitoring all temperature measurement technology that is used for industrial applications, building technology, and quality assurance. It ensures that the measurement results can be traced back to the national standards.
 |
 |
 |
|
USB interface
|
Test equipment
calibrated by DAkkS (DKD – German calibration service) |
Pt100 precision
RTD temperature probe |
GENERAL TECHNICAL DATA |
| Special features | Test equipment calibrated by DAkkS (DKD – German calibration service), integrated calibration function for easy compensation of probe tolerances |
| Features | 1-point, 2-point, or 3-point calibration; saving of MAX, MIN, HOLD, and average values; switch between °C/°F; measuring channels configurable; mains operation possible |
| Interface | USB |
| Accessories | UWindows® evaluation software "DE-Graph" is available as an accessory |
| Display | Two-line LCD |
| Connection | Pt100 input in four-wire technology, thermocouple inputs according to DIN EN 60584 |
| Option | 2-channel devices with differential temperature display, Pt100, or thermocouple |
| Housing | ABS plastic |
| Dimensions (L × W × H) | 200 mm × 93 mm × 44 mm |
| Admissible operating temperature | 0 to 40 °C |
| Weight | Approx. 350 g |
| Temperature probe insertion length | 200 to 400 mm |
Multifunction digital indicator with PLC function
The multifunctional digital controller impresses with the individual design of its user interface and hardware equipment. Analog and digital inputs and outputs, counting inputs, as well as interfaces can be flexibly added to display the required process variables. The indicator masters even complex applications with math and logic functions as well as the implementation of control functions via ST code.
 |
 |
 |
|
High degree of
interface connectivity |
Intuitive configuration
and operation |
Quick and simple
startup |
Smart digital indicator with limit value monitoring function for panel mounting
The JUMO miroVIEW is a digital indicator with measurement inputs for RTD temperature probes or thermocouples and standard signals for panel mounting.
 |
|
|
|
Flexible in its
application |
Intuitive operation
in plain text |
Quick and simple
startup |
Smart digital indicator with limit value monitoring function for panel mounting
The JUMO miroVIEW is a digital indicator with measurement input for RTD temperature probes for panel mounting. In the 60 mm and 80 mm round installation format, the JUMO miroVIEW offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
|
|
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
