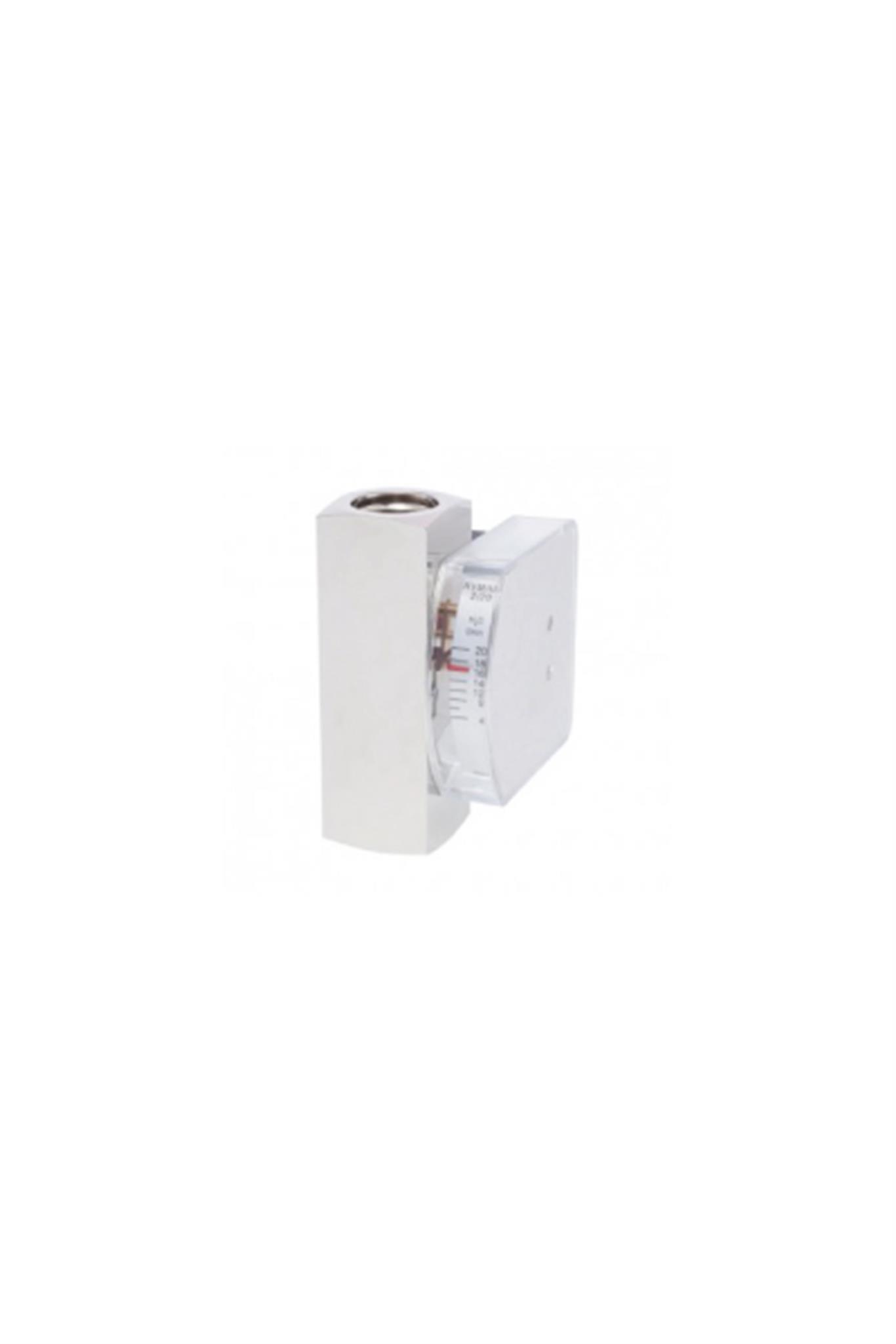

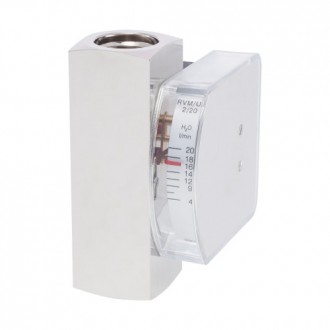

RVM/UA-2
Flow monitor and indicator for liquids
| CAN BE COMBINED WITH OUR SENSORS SIGNAL 4.0 AND SIGNAL 4.0 IO PRO | |||
 |
> small physical size > sturdy construction > installation in any orientation |
SPECIFICATIONS | |
|---|---|---|---|
|
|
For fluids (0,02 - 5 l/min) |
||
|
|
max . operating pressure PN 300 bar (MS) / PN 350 bar (VA) |
||
|
Operation The flow monitors type RVM/UA-2 operate with the float measuring principle. |
|
Operating temperature: from -20°C to 100°C (optional -20°C to 160°C) |
|
|
DOCUMENTS (Click on the name to download directly) |
|
DATASHEET |
|
|
MANUAL BASIC |
|
| Manual BASICS Switching contact 15x50 | |
| Manual BASICS Switching contact 30x70 | |
|
MANUAL ATEX |
|
| Manual ATEX Switching contact 15x50 | |
| Manual ATEX Switching contact 30x70 | |
|
DIRECTIVES |
|
| EMC-DIRECTIVE 2014/30/EU | |
| LOW VOLTAGE DIRECTIVE 2014/35/EU | |
|
EU DECLARATION OF CONFORMITY 2014/34/EU |
|
| 2014/34/EU ATEX 15x50 DoC 1 | |
| 2014/34/EU ATEX 15x50 DoC 2 | |
| 2014/34/EU ATEX 30x70 DoC 1 | |
| 2014/34/EU ATEX 30x70 DoC 2 |
