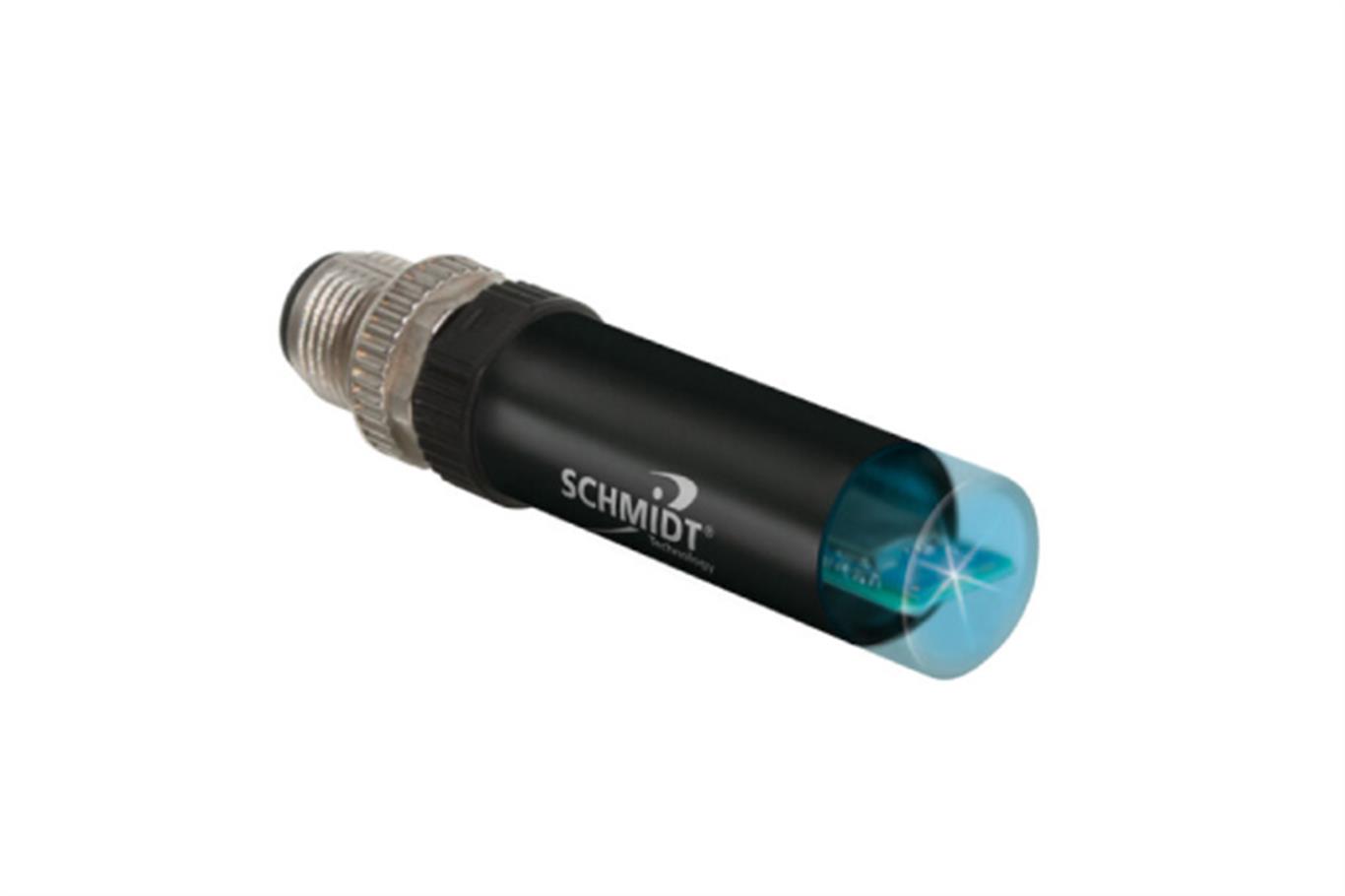

SCHMIDT® Bluetooth® Module BT 10.010

SCHMIDT® Bluetooth® Module BT 10.010

Sensor values wireless, any time and everywhere

• Radio module featuring Bluetooth^® wireless technology for remote transmission of standard volume flow V_N and medium temperature T_M

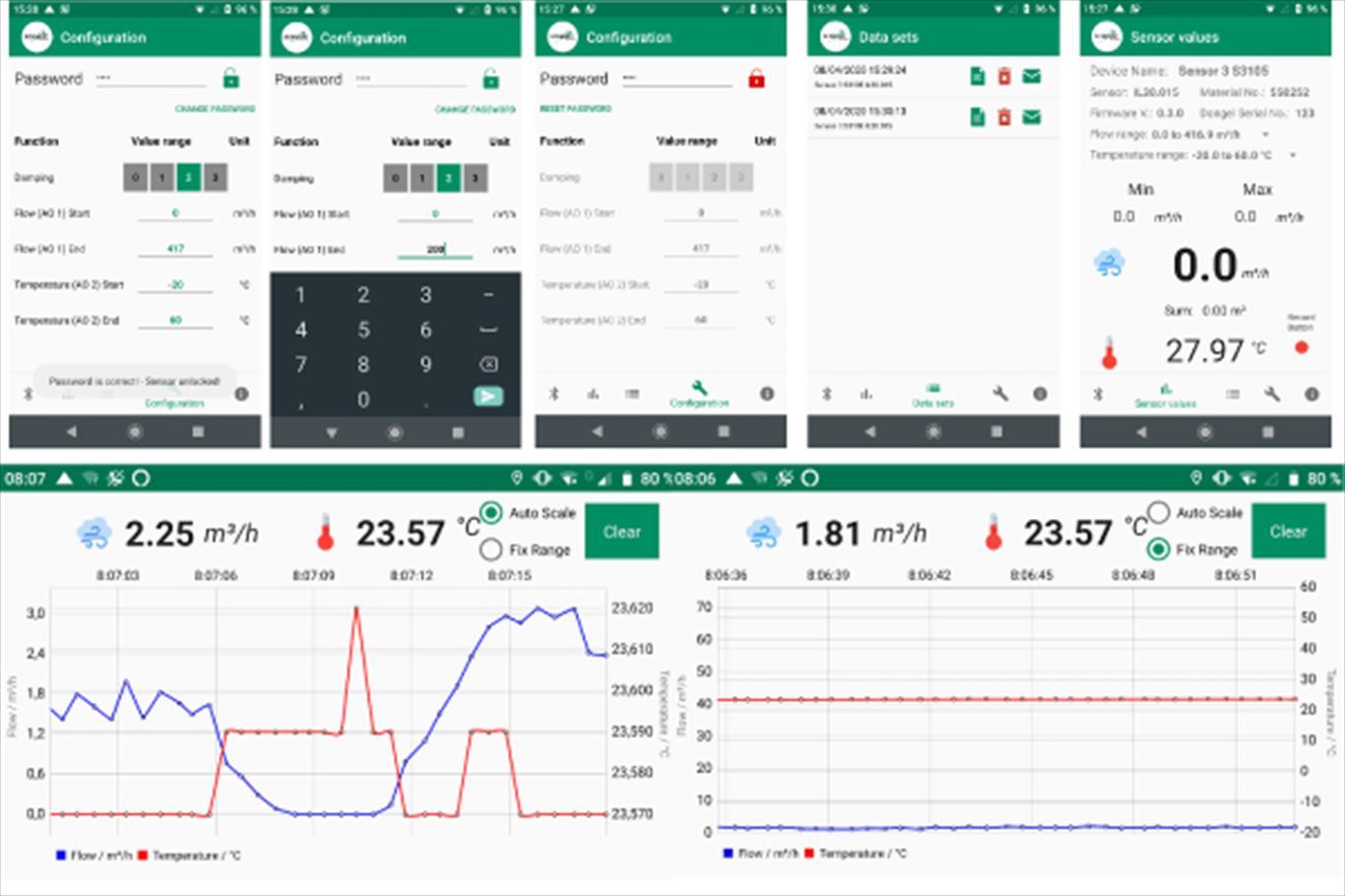

• Display and real-time recording of measuring values via free-of-charge SCHMIDT^® Sensor App on a mobile Android device – wireless, any time and everywhere
• Processing of recorded data
• Plug-and-Play

In many installations, displays built into the flow sensor either cannot be seen or due to the mounting position of the sensor simply cannot be read. Nevertheless, there is a need from time to time to display the measured values of the sensors on site.

Now this can be realised with the SCHMIDT^® Bluetooth^® Module BT 10.010 in a very easy and simple way: Any SCHMIDT^® Mass Flow Sensor can be equipped with a Bluetooth^® radio module, being linked to the module connector of the sensor. The plant operator can now select one sensor after another with the SCHMIDT^® Sensor App installed on his mobile Android device and display real-time measurements graphically on a smartphone or tablet and even record the values (datalogger function). The recorded data can be saved as a CSV-file and processed afterwards.

The following parameters can be set:

• Sensor name
• Analogue outputs (scaling)
• Damping
• Units of measurement (flow + temperature)

Android App V2 for free download under tab "Downloads"

Art.-No. 560 500

SCHMIDT Technology – Simply a question of better measurement
