SCHMIDT® Bluetooth® Verification Probe SS 20.450

Verify flow sensors on site

  • Simple, fast and safe verification of installed sensors – mobile on site
  • Easy-Clamp-On installation
  • Plug-and-Play
  • No additional power supply required
  • Radio module with Bluetooth® technology for transmission of the standard flow rate wN
  • Display and real-time recording of the measured values via free SCHMIDT® Sensor App on a mobile Android end device – wireless, anytime and anywhere
  • Probe length 150 mm
  • Measuring ranges 0 … 1 m/s to 0 … 20 m/s
  • Cleanroom sensor

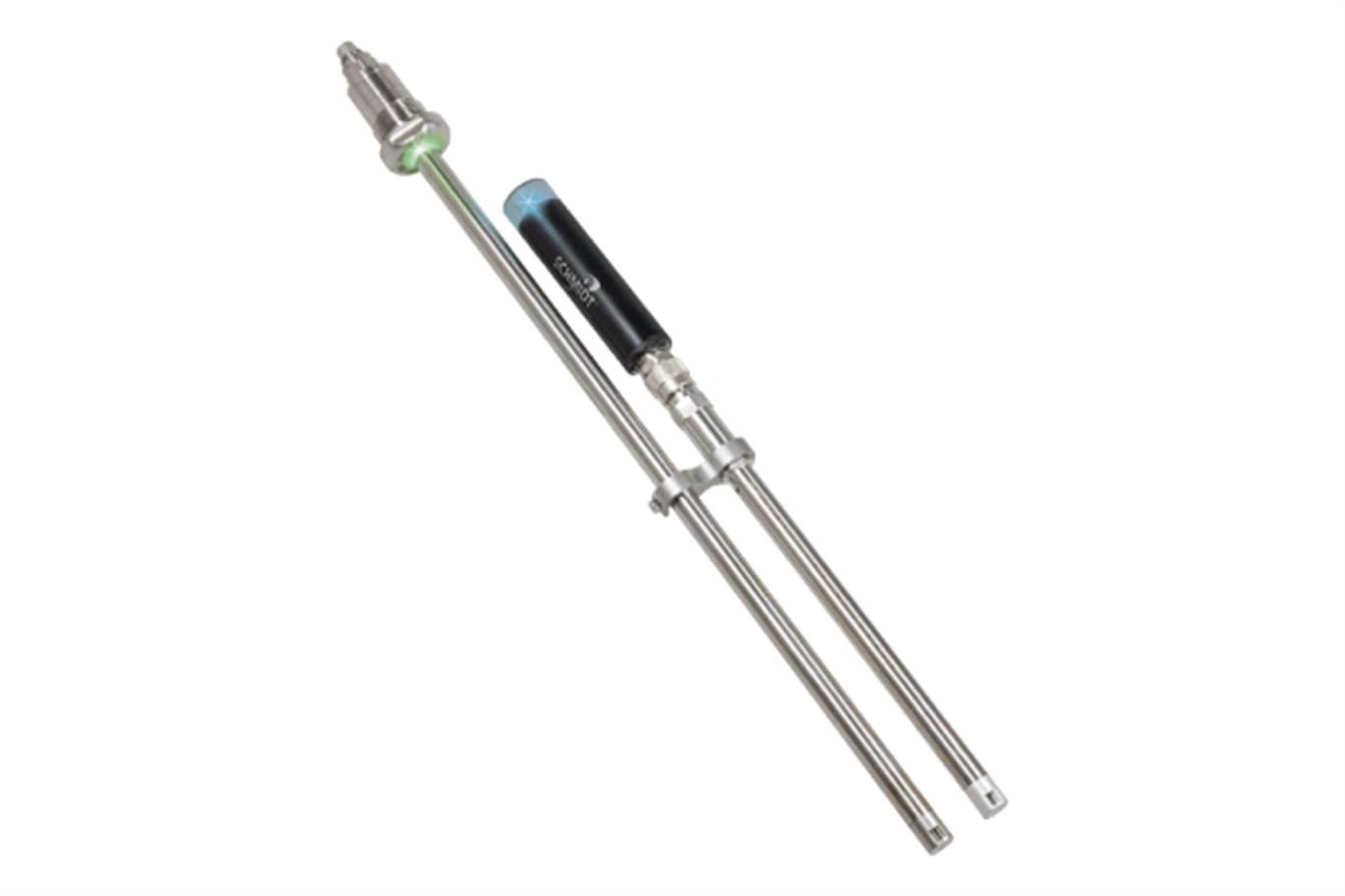

Particularly in cleanrooms or in clean processes, installed flow sensors should be verified on site from time to time. This can now be realised in the simplest way with the SCHMIDT® Bluetooth® Verification Probe SS 20.450.

The installed SCHMIDT® flow sensor remains in place while the Verification Probe is simply attached to it using the metal clip supplied. The Verification Probe has a self-sufficient power supply and can therefore be operated completely wirelessly for up to 8 hours.

This makes it possible to check the sensor without having to remove it from the clean area and then clean it at great expense. The system operator can now verify the sensor with his SCHMIDT® Sensor App installed on the mobile Android device, which displaysthe real-time measurements graphically on the smartphone or tablet and record the values (data logger function).

SCHMIDT® smart solutions mit Bluetooth® Technologie

Scope of delivery:

  • SCHMIDT® Bluetooth® Verification Probe SS 20.450
  • SCHMIDT® Bluetooth® Modul BT 10.450
  • Easy-Clamp-On clip (made of stainless steel)
  • Batteries LR44
  • Instruction manual
  • Calibration certificate
  • Certificate of compliance
  • Storage case



SCHMIDT Technology – Simply a question of better measurement

Technical data
Additional necessary device

Mobile device, e. g. smartphone or tablet

System requirements:

  • Android® version 7.0 or higher
  • Bluetooth® version LE (4.0) or higher

To use the full functionality of the SCHMIDT® Sensor App for Android, an active internet connection is required.
Bluetooth® Range Max. 50 m (free field; less in buildings)
Display and recording Standard flow velocity wN via free-of-charge SCHMIDT® Sensor App
Measuring quantity Standard flow velocity wN of air based on standard conditions
Measured medium Clean air
Measuring range wN 0 … 1 / 5 / 10 / 20 m/s
Lower detection limit wN 0.05 m/s


Measuring accuracy
Measuring accuracy at wN range of 1 m/s ±(1 % of measured value + 0.025 m/s)
Measuring accuracy at wN range of 5/10/20 m/s ±(2 % of measured value + 0.8 % of fmr)
Response time (t90) wN 5 s


General data
Humidity Measuring mode: Non-condensing (< 95 % RH)
Operating pressure Atmospheric (700 … 1,300 hPa)
Power supply Integrated batteries (3 x LR44, changeable)
Protection type IP65
Funkmodul: L = 90 mm; Ø 18 mm
Protection class III (SELV) or PELV (EN 50178)
Dimensions Sensor: L = 150/193 mm; Ø 9/12 mm
BT-module: L = 93 mm; Ø 18 mm
Weight 84 g (completed probe, incl. mounting bracket and batteries)


Material
Sensor head PMMA, POM
Sensor tube Stainless steel 1.4404
Plug connector, nut screw Stainless steel 1.4404
Sealing NBR


Operating temperature
Sensor 0 … +60 °C
Storage temperature -25 … +80 °C


Dowloads
Instructions for Use SS 20.450 Verification Probe (562709.02B) Dowload PDF
Product brochure SS 20.450 Verification Probe (05/2020) Dowload PDF
Instructions for Use SCHMIDT Sensor App V1 (05/2020) Dowload PDF
SCHMIDT® Sensor App V1, Version 1.0.1 Android-App for SS 20.450 Verification Probe Dowload App
