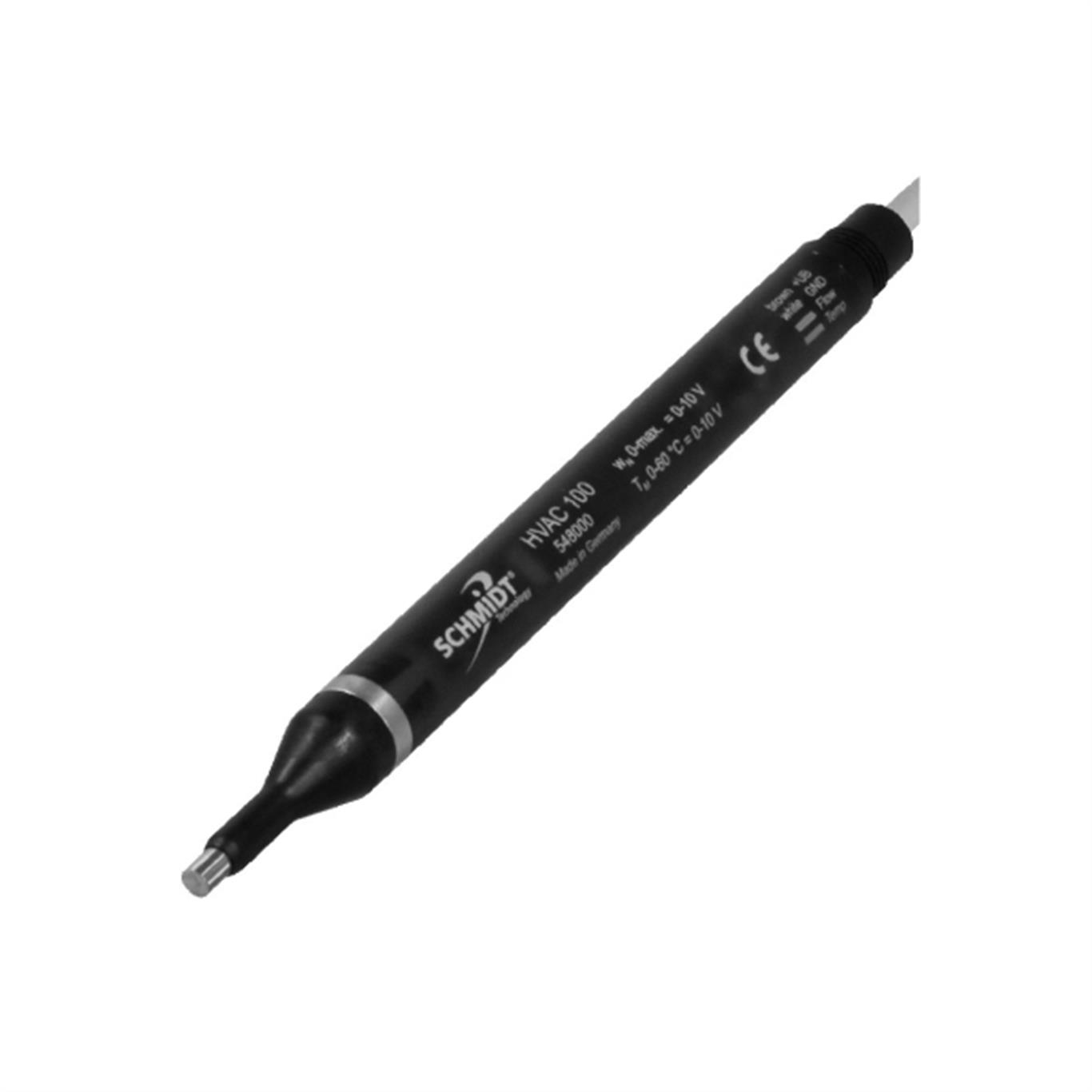

SCHMIDT® Flow Sensor HVAC 100

  • Cylindrical sensor head (largely independent from flow direction, easy to clean)
  • Flow and temperature signal
  • Probe length 144 mm (optional extendable)
  • Measuring ranges 0 … 2.5 m/s to 0 … 20 m/s

At many applications like ventilation, exhaust and air-conditioning systems, it is necessary to measure flow velocity, mass flow as well as the temperature of the medium to ensure an energy efficient operation of the unit.

The measuring ranges of this sensor have been tailored for the HVAC industry but also for other applications.

Easy-to-install: The HVAC 100 with its 360° measuring head does not have to be aligned to the flow direction and can be extended by additional tubes (variable immersion depth). Furthermore this sensor is maintenance-free, robust, long-term stable and easy-to-clean and therefore fulfills the main requirements for an efficient installation process.

The operating status display via LED enables safe operation at a glance and due to the fully integrated evaluation electronics in the sensor tube there are no further transmitters required.

  • Ventilation, exhaust and air-conditioning systems
  • Control of supply air and exhaust air in fume chambers
  • Filter monitoring
  • Supply and exhaust air control in digestories

SCHMIDT Technology – Simply a question of better measurement

Technical data
Measuring quantity

Standard flow velocity wN based on standard conditions 1)
Medium temperature TM
Measured medium Clean air or nitrogen
Measuring range wN 0 ... 2.5 / 10 / 20 m/s
Measuring range TM 0 … +60 °C
Lower detection limit wN 0.2 m/s


Measuring accuracy
Flow wN 0 ... 2.5 m/s: ±(4 % of measured value + 0.05 m/s)
0 ... 10 m/s: ±(4 % of measured value + 0.2 m/s)
0 ... 20 m/s: ±(4 % of measured value + 0.4 m/s)
Response time (t90) wN Approx. 10 s (jump of wN from 0 to 5 m/s)
Temperature gradient wN < 1,5 K/min at 5 m/s
Temperature TM
(wN > 2 m/s)		 ±1 K (10 … 30 °C); ±2 K (remaining interval)


Operating temperature
Operating temperature 0 … +60 °C


General data
Humidity Measuring mode: Non-condensing (< 95 % RH)
Operating pressure (max.) Atmospheric (700 … 1,300 hPa)
Supply voltage 24 V DC ± 10 %
Current consumption Typ. < 35 mA (max. 80 mA)
Analog outputs for wN and TM 2 x 0 … 10 V (RL ≥ 10 kΩ; CL ≤ 1 nF)
Electrical connection Non-detachable cable, pigtail, 4 x 0,25 mm2, length 2 m, PVC
Maximum cable length 15 m
Type of protection IP40
Protection class III (SELV)
Minimum immersion depth 35 mm
Dimensions ø 12 mm, probe length 144 mm, extension tube 97 mm (extending length 85 mm)
Weight 50 g (probe)
Delivery content Probe, mounting clamp, 1 pc. extension tube, manual


Material
Sensor PC, ABS, Brass nickel plated, PVC (cable sheath)
Extension tube ABS

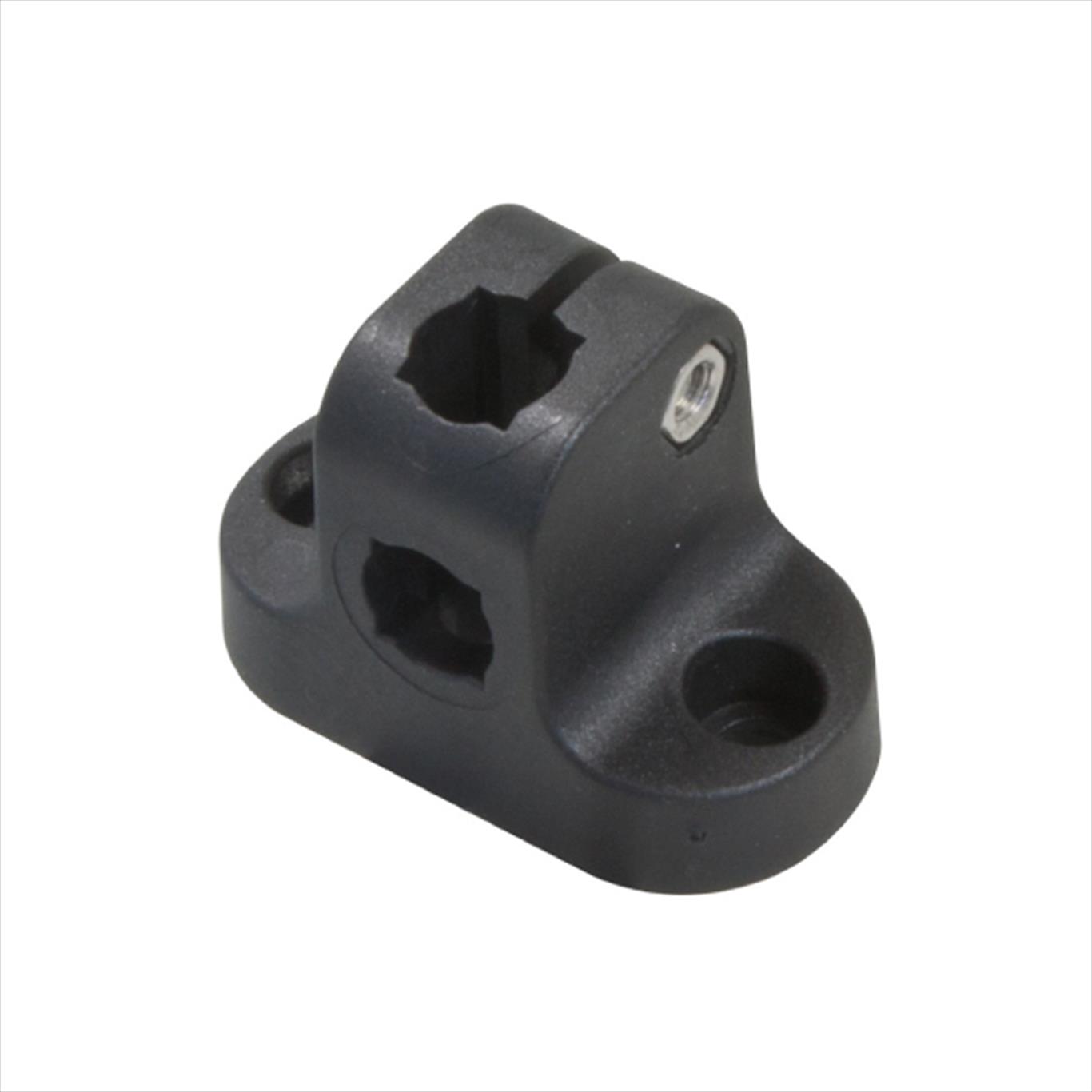

Mounting clamp PA-GF
