SCHMIDT® Flow Sensor SS 20.415 LED
Thermal flow sensor for uni- or bidirectional measurement of air and gases with simultaneous detection of flow direction.
SCHMIDT® Flow Sensor SS 20.415 LED
Thermal flow sensor for uni- or bidirectional measurement of air and gases with simultaneous detection of flow direction.
- Thermopile head (very fast response time)
- Flow velocity and switching signals
- Probe length straight version:
- Default: 300 mm
- Special length (option): > 300 … 1,000 mm (step: 10 mm)

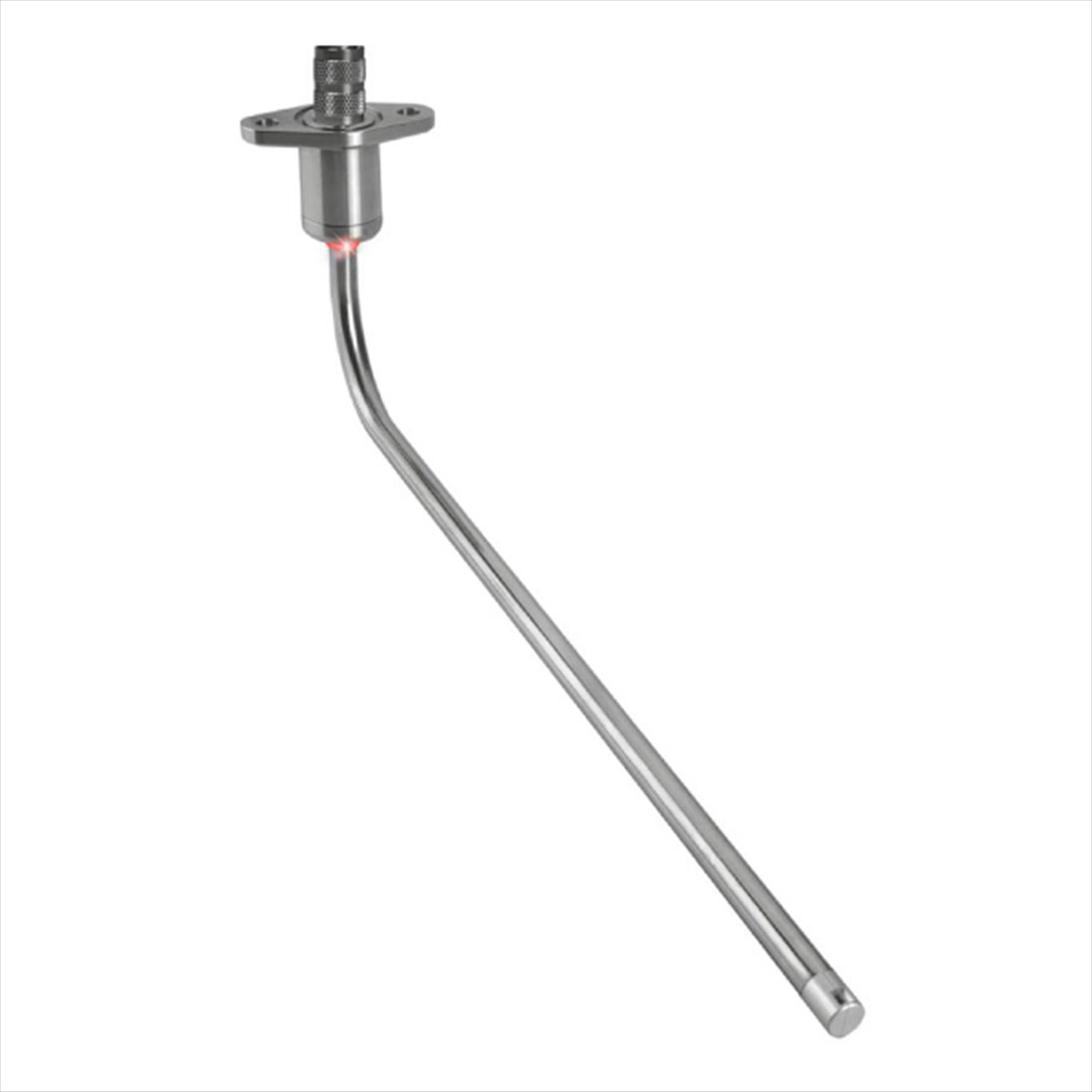

- Probe length of angled version: 150 / 270 mm x 300 mm
- Measuring ranges 0 … 1 / 2.5 / 10 m/s
- Bidirectional measurement (optional)
- Optimized adjustment for LF-applications (optional)

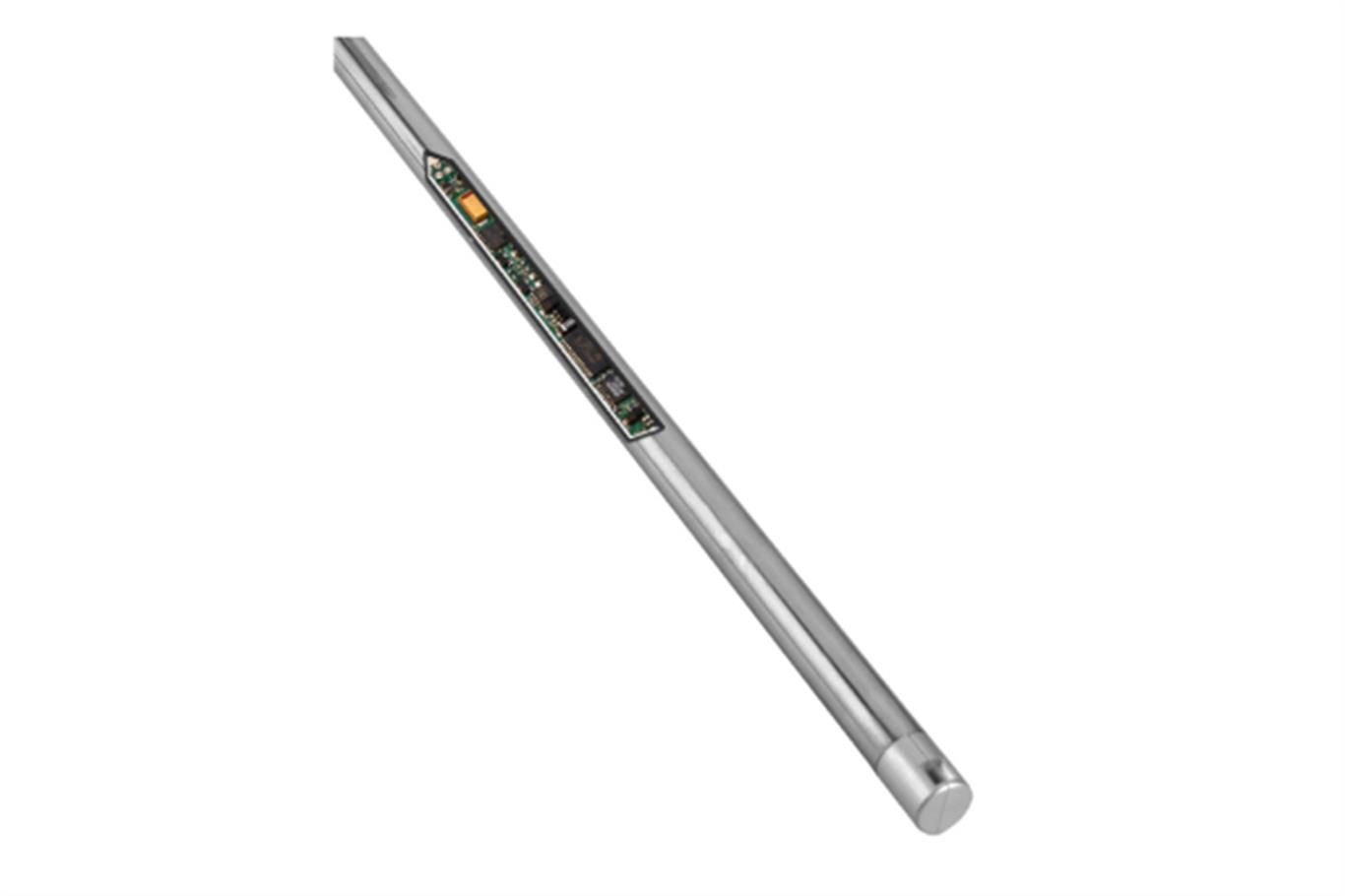

- Extremely compact (electronics are integrated in probe tube)
- Sensor element protected against mechanical stress
- Linear analog output for measured flow velocity
- Two switching outputs to signal flow direction and threshold
- Operating status indication and serial number are visible, even when sensor is installed
- Special version for laminar-flow monitoring in cleanrooms with quick-mounting system for simple installation beneath ceilings or at walls
Option: Monitoring of admissible speed interval (prescribed by official standards) of 0.45 m/s ± 20 % with optical signaling at the sensor (LF status indicator)

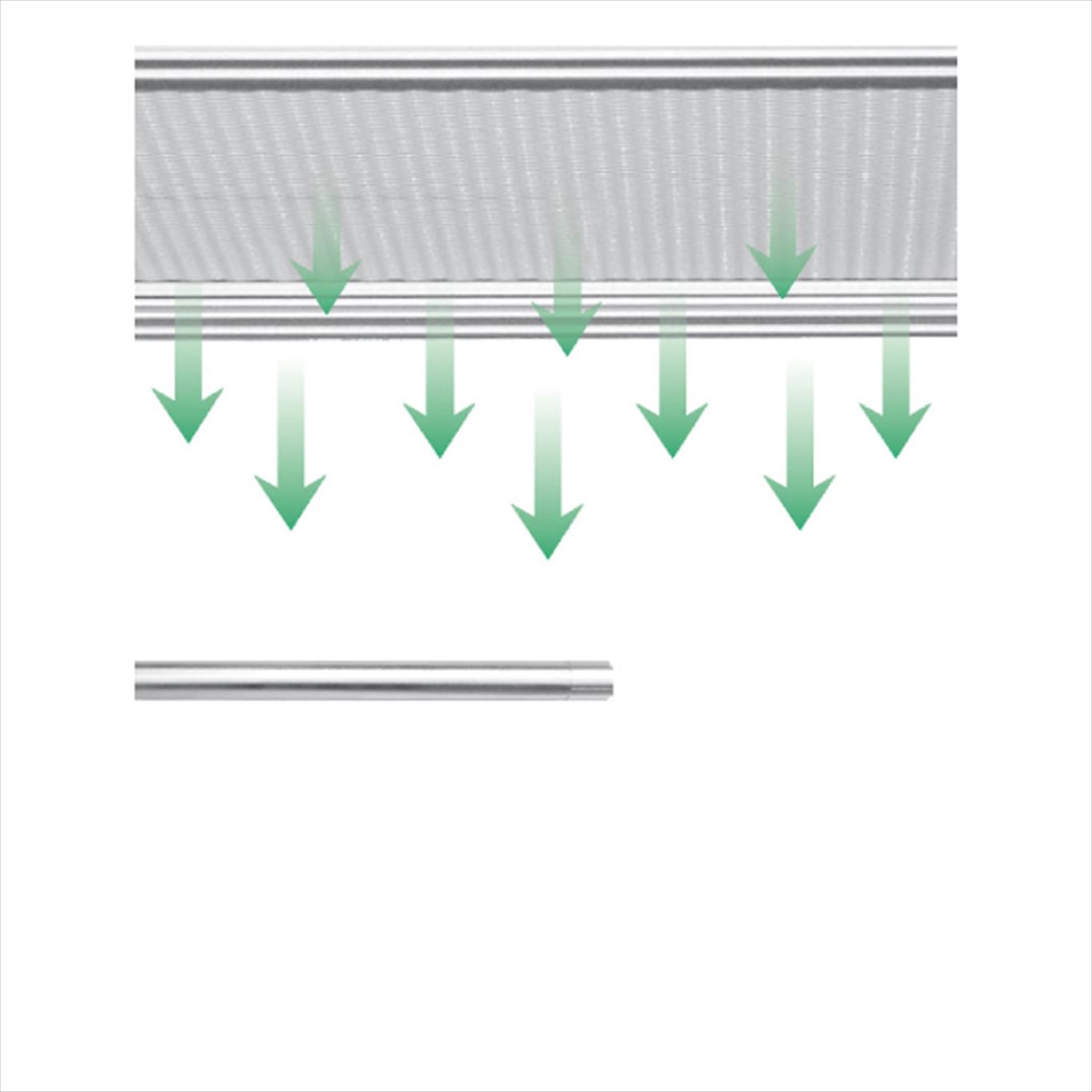

- Laminar flow monitoring in cleanrooms
- Flow monitoring in pharmaceutical production, semiconductor manufacturing, food production, LCD manufacturing and optical industry
- Integration into insulators, FFUs and flow boxes
