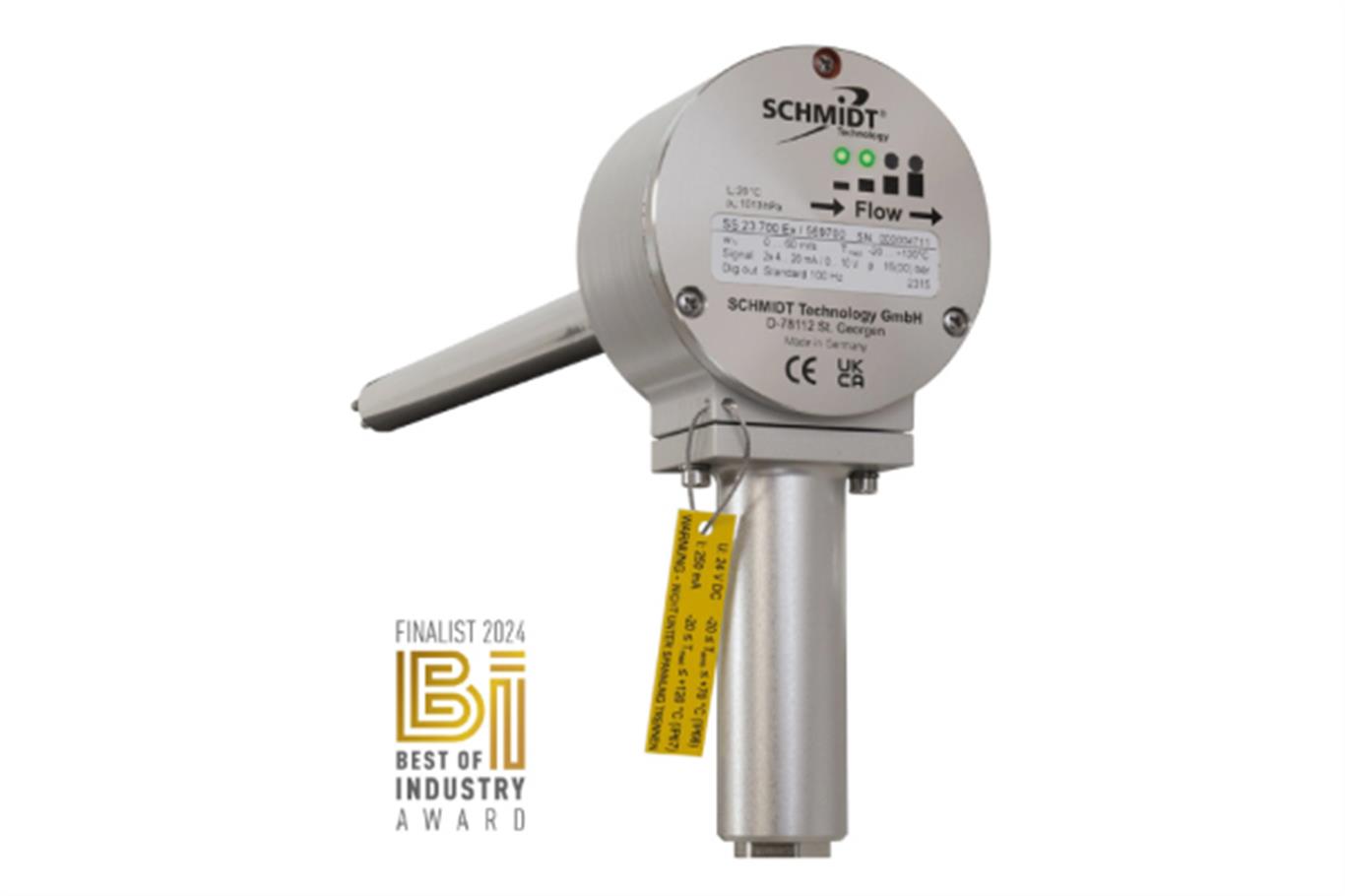

SCHMIDT® Flow Sensor SS 23.700 Ex
Flow rates of gases – an important measurement in industrial processes.
SCHMIDT® Flow Sensor SS 23.700 Ex
Flow rates of gases – an important measurement in industrial processes.
- "Heavy-Duty applications"
- Double-pin sensor head, sensor elements completely encapsulated in stainless steel
- For air and other gases in applications with harsh conditions (medium with aggressive components, contamination, high humidity)
- Flow and temperature signal
- Probe length of 250 or 600 mm
- Remote sensor (optional)
- Measuring ranges 0 … 10 m/s up to 0 … 220 m/s, special measuring range
- Special gas adjustment for different gases (optional)
- Pulse output
- PWIS-conform (optional)
- Pressure resistant up to 16 bar
- Temperature range from -20 °C up to +120 °C
- ATEX (optional):
- Gases, zone 2: II 3G Ex ec ic IIC T4 Gc
- Dust, zone 22: II 3D Ex ic tc IIIC T135°C Dc
The SCHMIDT® Flow Sensor SS 23.700 Ex is the perfect solution for extremely demanding industrial applications. It can be used for a diverse range of applications, such as compressed air monitoring, gas monitoring on process burners, consumption recording of gases and a great deal more.
The order option "PWIS-conform" provides the required safety for applications with corresponding requirements.
The double-pin sensor head has been designed especially to meet the needs of so-called „heavy-duty applications“. Thanks to the sensor elements being completely encapsulated in stainless steel these are ideally suited for extremely demanding applications. The sensor is also resistant against aggressive media.
The SS 23.700 Ex records flow velocity as well as media temperatures from -20 °C up to +120 °C. It can be used in small tubes from DN40 upwards and can involve a sensor length of up to 600 mm to measure the volumetric flow rate in large channels and ducts. The sensor can be used in overpressure up to 16 bar.
This sensor is very easy to install: screw in the sensor using the compression fitting included, align the sensor in the gas flow and centrally in the pipe, connect it electrically – and job done!
The SS 23.700 Ex operates without any moving parts and due to the measuring principle drifting or ageing do not play a role. This reduces the maintenance required for the sensor to an absolute minimum. Should cleaning nevertheless be necessary, it can be carried out very easily and in a variety of ways - simply the spirit of „heavy-duty“.
- Heavy-Duty applications
- Compressed air consumption measurement
- Inert gas flow measurement
- Flow rate control
- Compressor control
- Exhaust air monitoring
- Control of the combustion air at block heating plants and fuel cells
- Air mass flow measurement in burners and combustion engines
For calculations of measuring range with our flow calculator, please use settings for SS 20.600.
