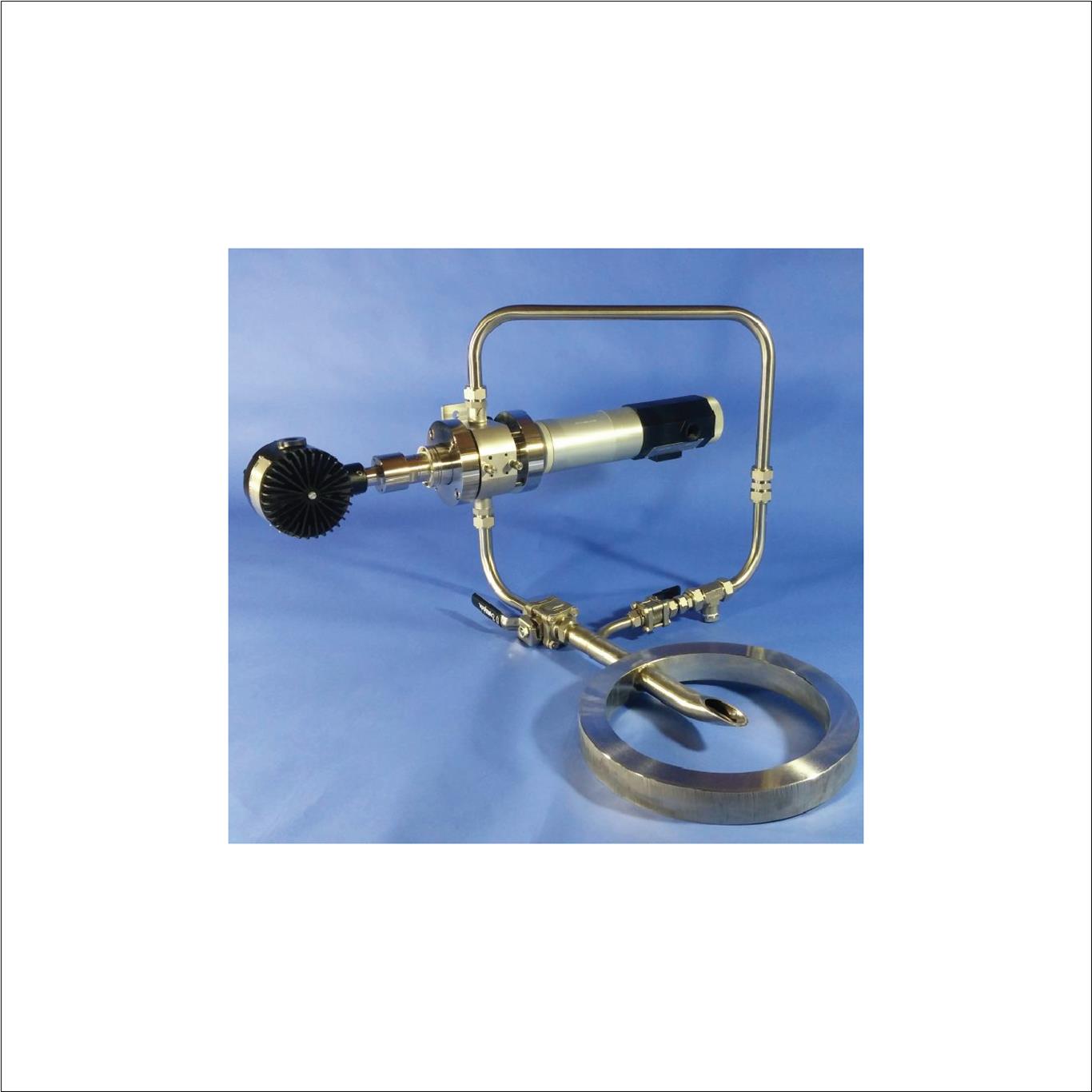

SHORT LOOP SAMPLER – (JET FUEL) ANALYZER
The SHORT LOOP SAMPLER™ JET FUEL Analyzer combining sampling point and the INFLOW™ Process Particle Analyzer, provides real time concentration and particle size analysis. The SHORT LOOP SAMPLER™ allows operators and skid manufacturers to test multiple point in their line using only one analyzer and verify the results by using the sample point to verify reading in the lab. Models measure 0.7 micron – 20,000 micron particles under process conditions. By continuously measuring the fuel (WATER / SOLIDS / GAS) independently concentration and size is output 30 frames a second. This allows the user to see the impact of any change to the process system. By using a vision based system CANTY can easily detect all phases and separate them to give PPM/PPB distribution as well as SIZE distribution of all particulates. The system is designed to continuously sample from the center of the process stream and input the entire sample back into the stream so there is no loss of product when analyzing for concentration or particle size.
Turbidity analysis using a high resolution CCD/CMOS image sensor that detects turbidity changes in fluids by measuring the transmittance of light. Using advanced software algorithms the system automatically removes gas bubbles from the analysis resulting in highly accurate and repeatable data outputs. This system is designed for inline use with varying pressures, temperatures, and pipe diameters.
