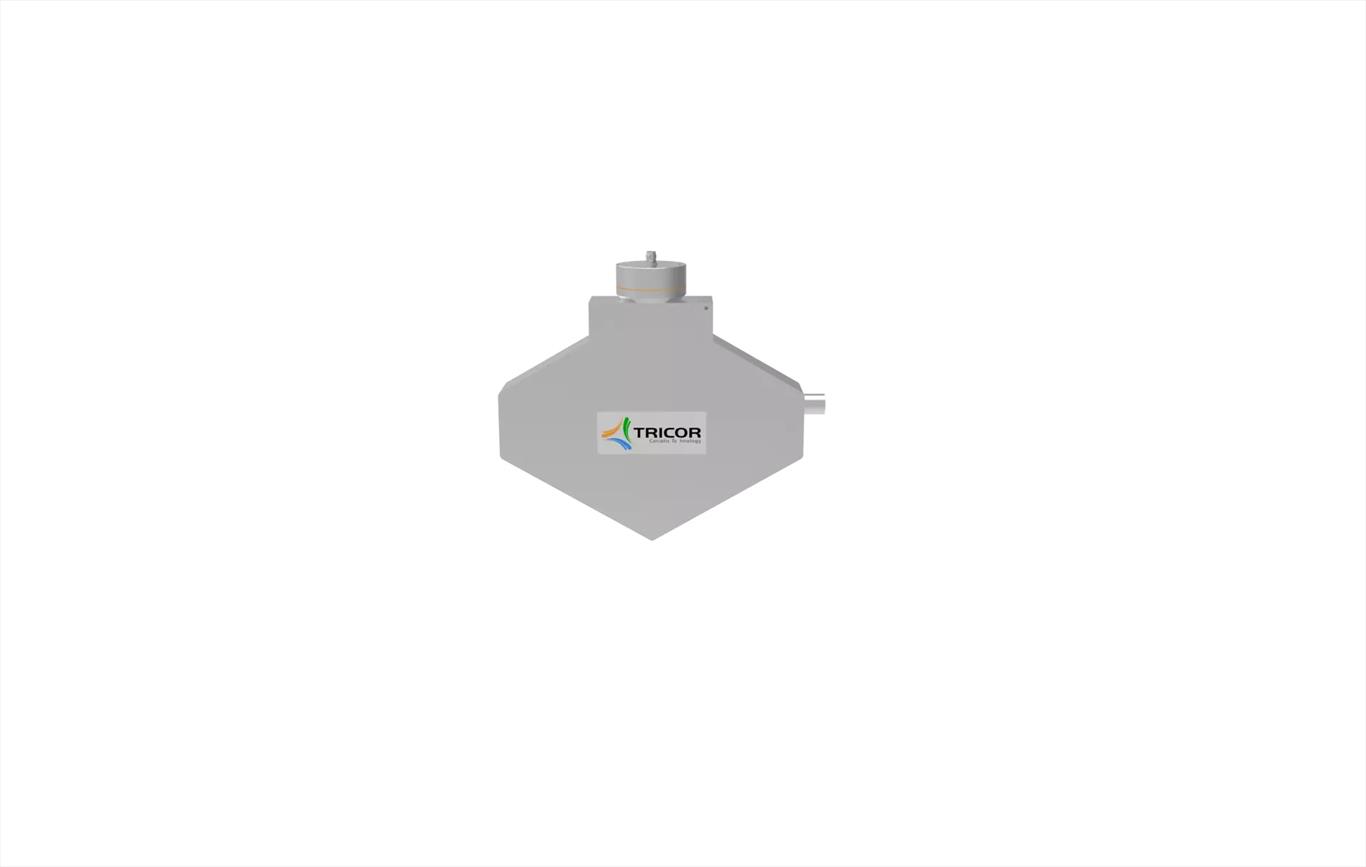

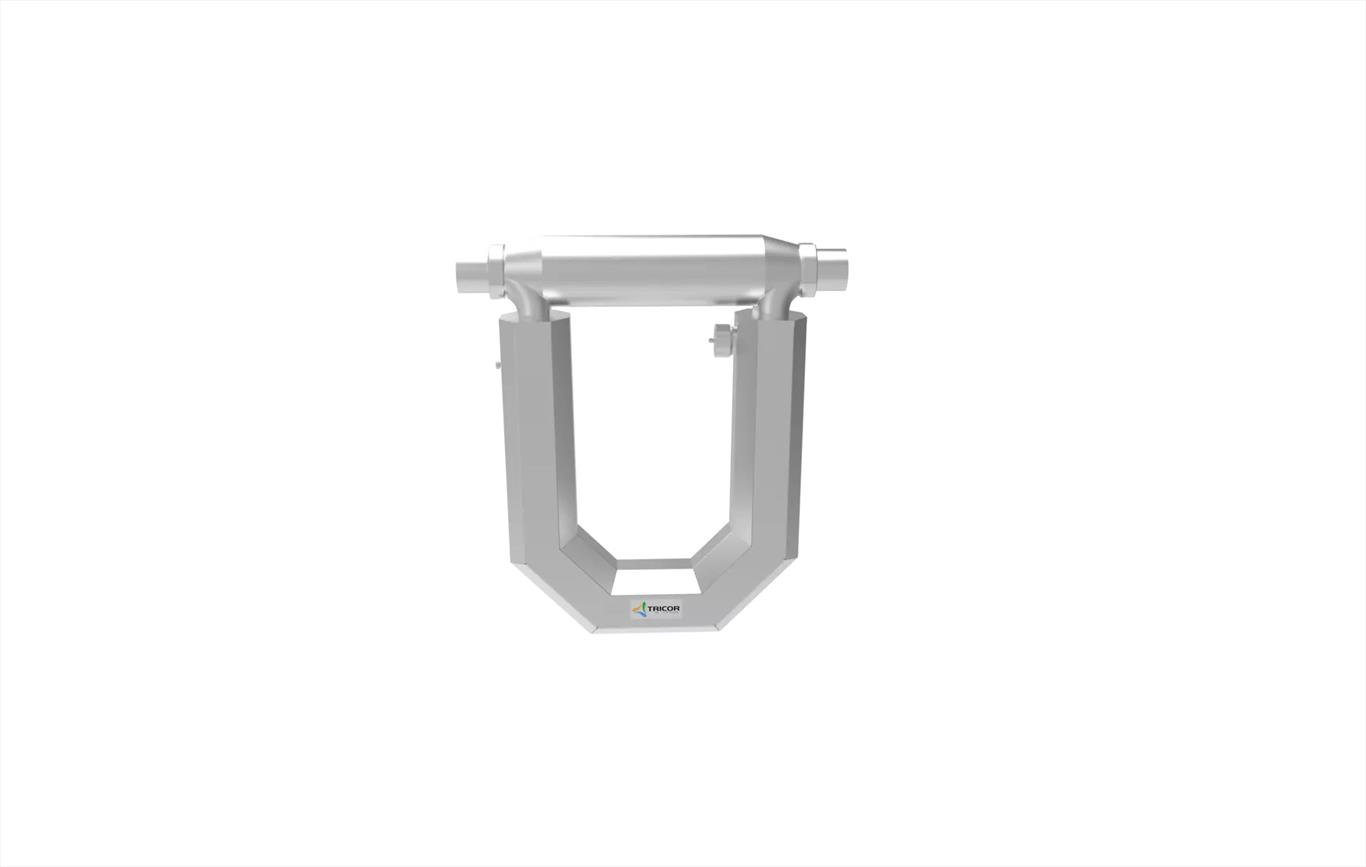

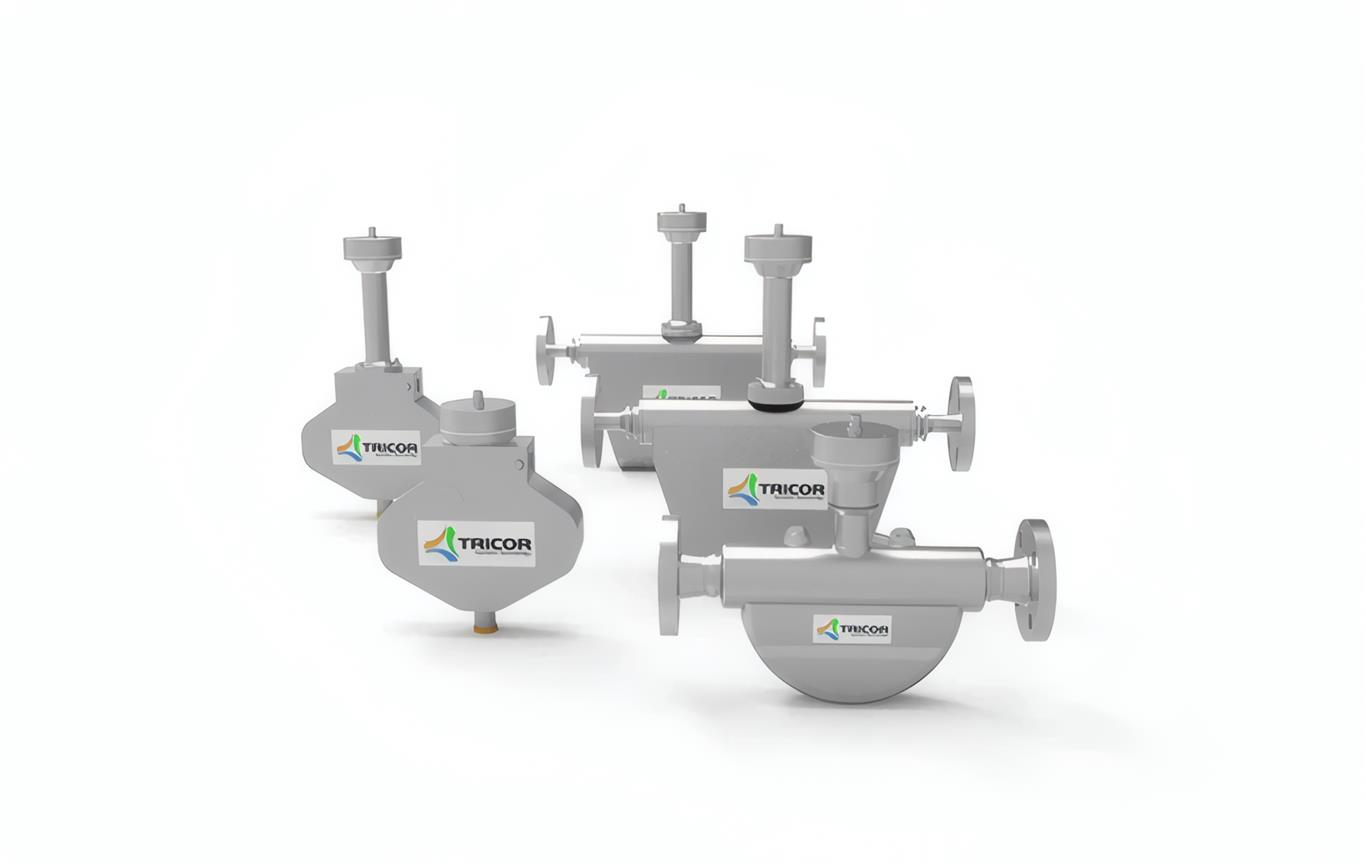

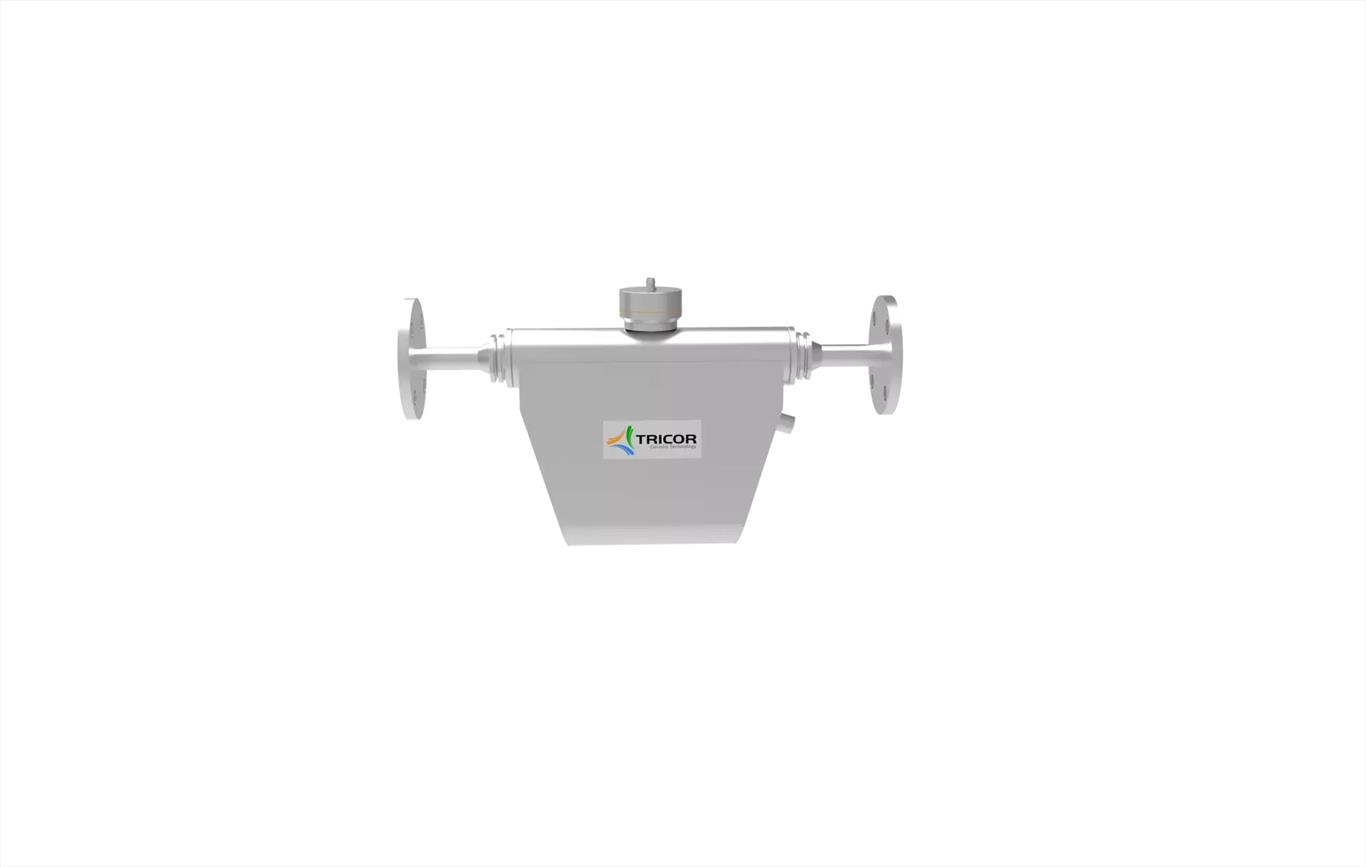

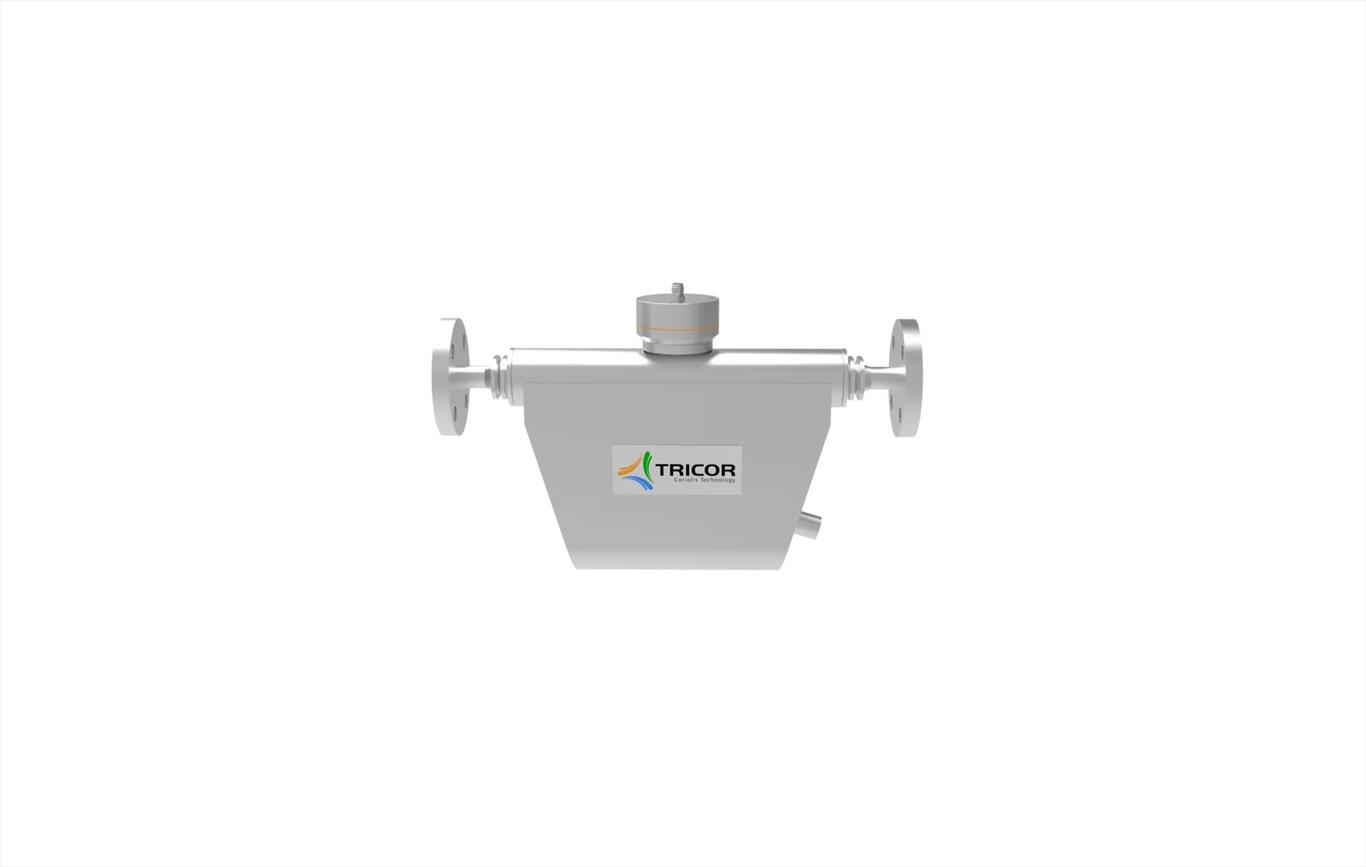

TCA 1000 Transmitter

Coriolis Evaluation Electronics

CLASSIC Series

Coriolis

TCA 1000 Transmitter - Your solution for precise visual feedback and lightning-fast performance!

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

Maximum efficiency, unsurpassed accuracy - the TCA 1000 sets new standards in flow measurement! With state-of-the-art technology, robust design and first-class performance, it optimizes your processes at the highest level. Rely on precision that makes the difference.

Features & Benefits

RS485 RTU (Modbus)
Stainless Steel housing material
Excellent repeatability
Small-Size Design
Permanent visual status feedback of metering conditions
Ideal for dynamic applications
Plug and Play for Transmitter adaption
Exchangeability of Transmitter in the field

Flow Rate	Mass Flow Rate (max.): 7 device sizes up to 28,000 kg/h
Pressure Rating	100 bar [1,450 psi] TCM 5500 - TCM 028k 200 bar [2,900 psi] TCM 0325 - TCM 3100
Accuracy (liquids)	Basic Accuracy (Mass Flow): ±0.1 % of flow rate Repeatability (Mass Flow): ±0.05 % of flow rate Zero Stability: ±0.01 % of full scale
Accuracy (gases)	Basic Accuracy (Mass Flow): ±0.5 % of flow rate Repeatability (Mass Flow): ±0.25 % of flow rate
Density	Density Range: up to 2,500 kg/m³ [2.5 g/cm³] Density Accuracy: ±1.0 kg/m³ [±0.001 g/cm³] Density Repeatability: ±0.5 kg/m³ [±0.0005 g/cm³]
Temperature	Process Temperature Range: Compact: -40 °C ... +80 °C [-40 °F ... +176 °F] Standard temperature: -40 °C ... +150 °C [-40 °F ... +302 °F] High temperature: -40 °C ... +200 °C [-40 °F ... +392 °F] Ambient temperature: -40 °C ... +60 °C [-40 °F ... +140 °F] Storage temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]
Electronics	Power Supply: 24 V DC Interfaces: RS485 RTU (Modbus) Connector: M12 5 Pol
Visual status feedback	Green: Normal Operation Orange: Startup or Indication of worse operational conditions Red: Critical system Error
