TCM 028K

CLASSIC Series

Coriolis

Coriolis mass flow meters for liquids and gases

28.000 kg/h [1.029 lb/min]
DN25 [1”]

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

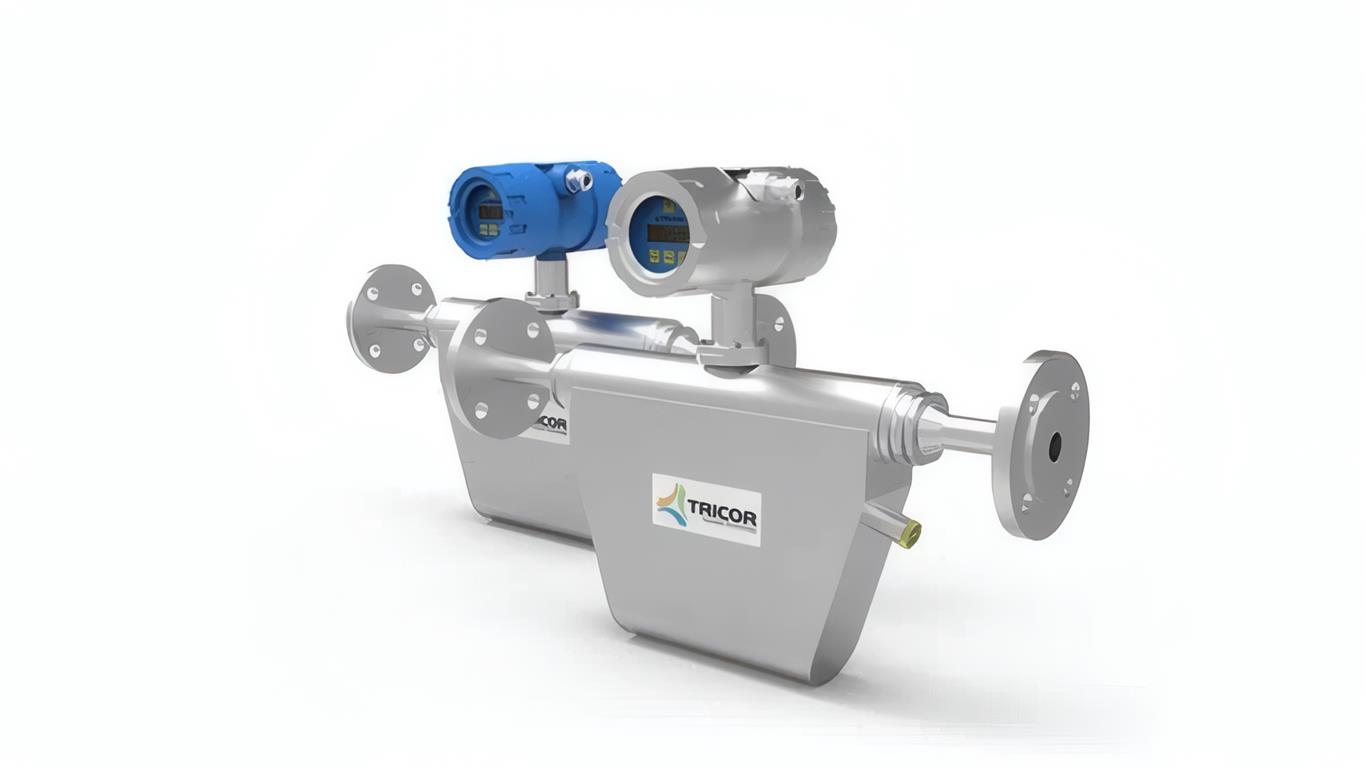

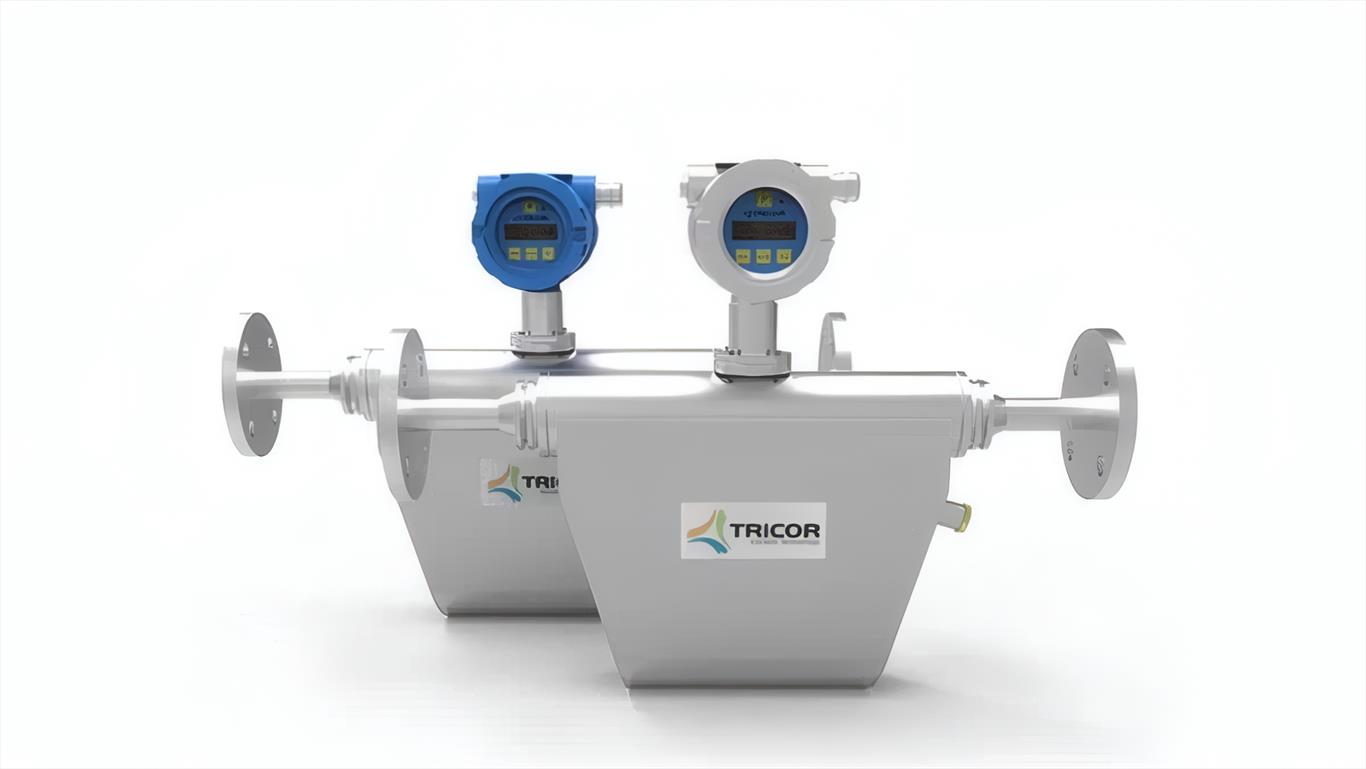

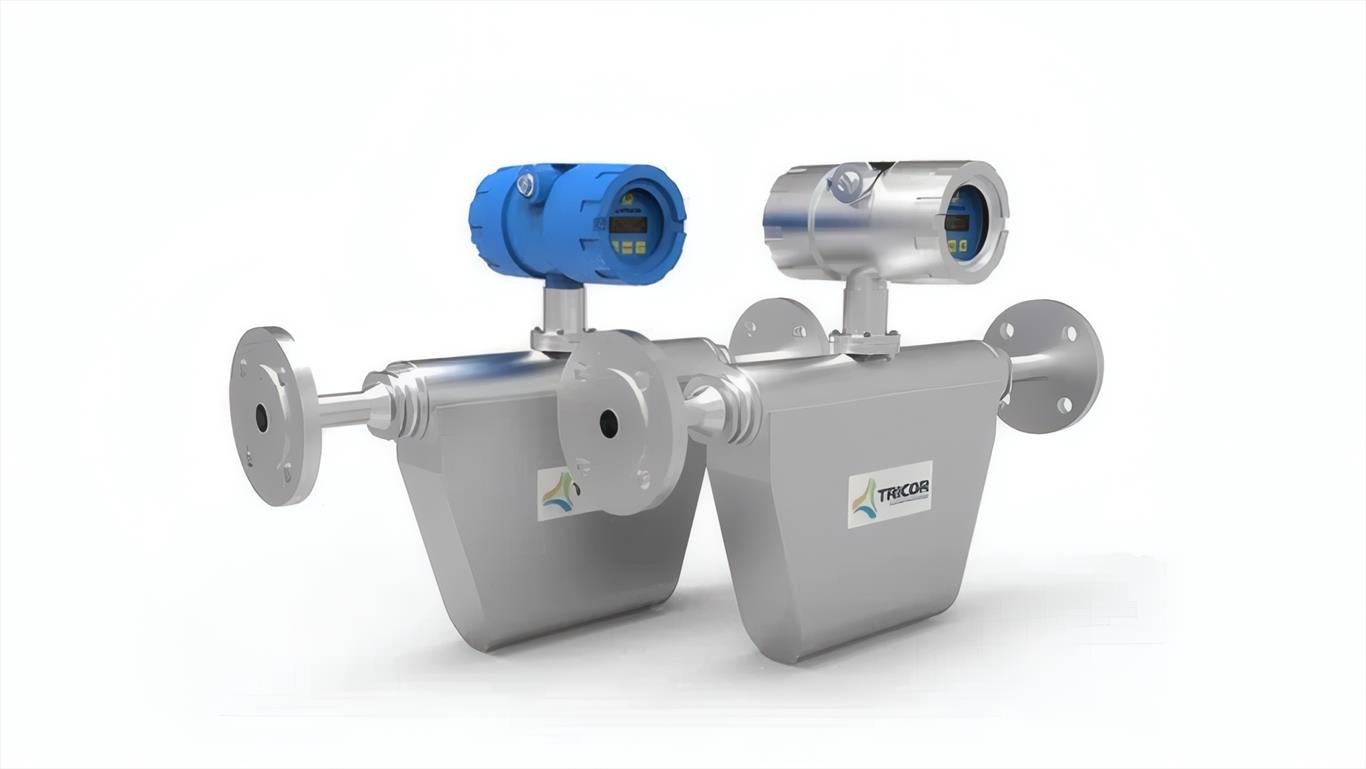

The Coriolis PRO TCMP 028K Coriolis Mass Flow Meter has a maximum mass flow rate of 28,000 kg/hr (1029 lb/min) or 4227 bbl/day and nominal size of DN25 (1”). This meter has an accuracy of 0.1% and withstands pressures up to 100 bar (1450 psi). The transmitter with Digital Signal Processing provides a modern HMI interface, strong logging functionality, and advanced diagnostics. Each Coriolis meter is mechanically balanced to ensure the best in class density measurement and overall performance.

Features & Benefits

Robust, no moving parts
Customized installation length
Excellent repeatability (better than ±0.05 %), accuracy (±0.1 %)
Advanced transmitter technology Upgrade/modernize in place
Increased productivity
Considerable cost savings for installation
Increased product quality
Optimized lifecycle management

Flow Rate	Mass Flow Rate (max.): 28,000 kg/h [1,029 lb/min] Volumetric Flow Rate (max.): 28,000 l/h [123.3 gpm, 4,227 oil bbl/d (US)] Nominal Meter Size: DN25 [1”]
Pressure Rating	100 bar [1,450 psi]
Accuracy (Liquids)	Basic Accuracy (Mass Flow): ±0.1 % of flow rate Repeatability (Mass Flow): better than ±0.05 % of flow rate Basic Accuracy (Volume Flow): ±0.15 % of flow rate Repeatability (Volume Flow): better than ±0.05 % of flow rate Zero Stability: ±0.01 % of full scale
Accuracy (Gases)	Basic Accuracy (Mass Flow): ±0.5 % of flow rate Repeatability (Mass Flow): ±0.25 % of flow rate
Density	Density Range: up to 2,500 kg/m³ [2.5 g/cm³] Density Accuracy: ±1.0 kg/m³ [±0.001 g/cm³] Density Repeatability: ±0.5 kg/m³ [±0.0005 g/cm³]
Temperature	Process Temperature Range: -60 °C ... +200 °C [-76 °F ... +392 °F] Temperature Accuracy: ±1 °C ±0.5 % of reading [±1.8 °F ±0.5 % of reading] Temperature Repeatability: ±0.2 °C [±0.36 °F]
Materials (Wetted Parts)	Tubes: 1.4404 [AISI 316L] Case: 1.4404 [AISI 316L] Flow Splitter: CF3M [AISI 316L] Brazing Alloy: BNi-2
