TCM 230K

CLASSIC Series

Coriolis

Coriolis mass flow meters for liquids and gases

230.000 kg/h [8.450 lb/min]
DN80 [3”]

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

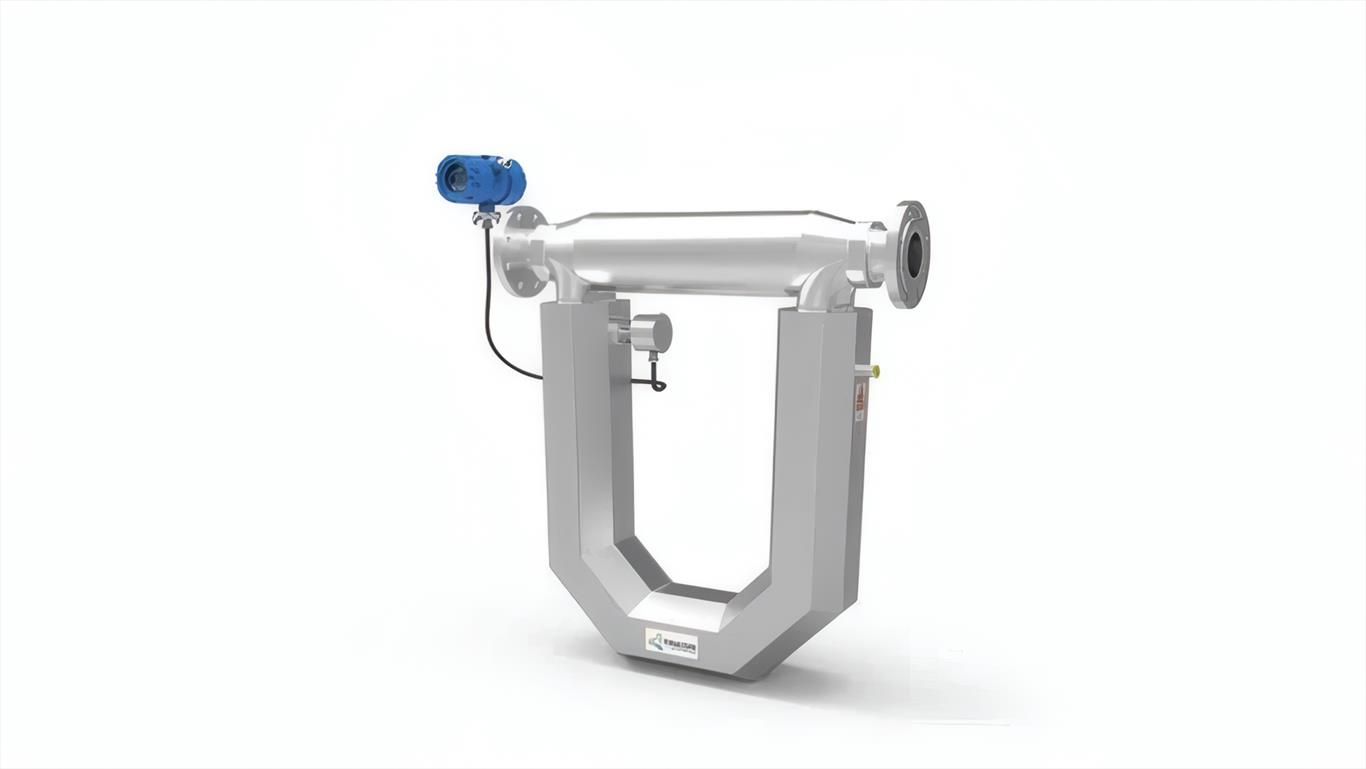

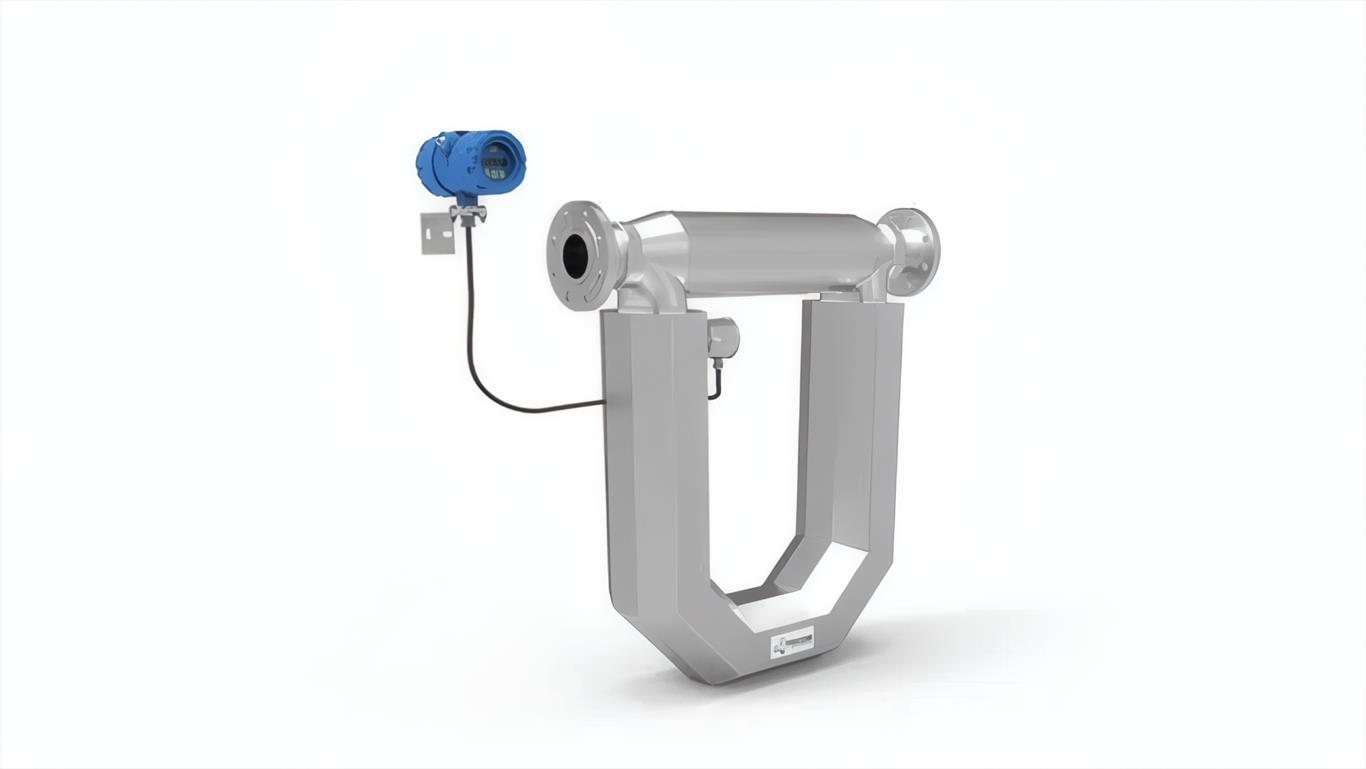

The Coriolis CLASSIC Series TCM 230K Coriolis Mass Flow Meter has a maximum mass flow rate of 230,000 kg/hr (8450 lb/min) or 34,720 bbl/day and nominal size of DN80 (3”), and is rated for process pressures up to 100 bar (1450 psi). Standard accuracy for the TCM 230K is 0.3%, but with a custom calibration, 0.1% accuracy is possible. These meters have good overall accuracy, zero stability, and pressure drop. The simple self-draining U-shape tube design provides for easy cleaning/flushing.

Features & Benefits

Robust, no moving parts for long life
Custom flow connectors & installation lengths
Excellent repeatability (±0.05 % of flow rate)
Optional Net Oil functionality
Increased productivity, less maintenance
Lower installation cost
Increased product quality
Simpler whole solution for Net Oil without PLC/RTU

Flow Rate	Mass Flow Rate (max.): 230,000 kg/h [8,450 lb/min] Volumetric Flow Rate (max.): 230,000 l/h [1,013 gpm, 34,720 oil bbl/d (US)] Nominal Meter Size: DN80 [3”]
Pressure Rating	100 bar [1,450 psi]
Accuracy (Liquids)	Basic Accuracy (Mass Flow): ±0.3 % (option: up to ±0.15 %) of flow rate Repeatability (Mass Flow): ±0.05 % of flow rate Basic Accuracy (Volume Flow): ±0.3 % (option: up to ±0.2 %) of flow rate Repeatability (Volume Flow): ±0.05 % of flow rate Zero Stability: ±0.015 % of full scale
Accuracy (Gases)	Basic Accuracy (Mass Flow): ±1 % (option: up to ±0.5 %) of flow rate Repeatability (Mass Flow): ±0.25 % of flow rate
Density	Density Range: up to 2,500 kg/m³ [2.5 g/cm³] Density Accuracy: ±1.0 kg/m³ [±0.001 g/cm³] Density Repeatability: ±0.5 kg/m³ [±0.0005 g/cm³]
Temperature	Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F] Option: -60 °C ... +200 °C [-76 °F ... +392 °F ] Temperature Accuracy: ±1 °C ±0.5 % of reading [±1.8 °F ±0.5 % of reading] Temperature Repeatability: ±0.2 °C [±0.36 °F]
Materials (Wetted Parts)	Tubes: 1.4404 [AISI 316L] Case: 1.4404 [AISI 316L] Flow Splitter: CF3M [1.4409] Option: NACE MR 0175/0103 compliant

Coriolis Mass Flow Meters – CLASSIC Series – Datasheet	Dowload PDF
Coriolis Mass Flow Meters – CLASSIC Series – Manual	Dowload PDF
