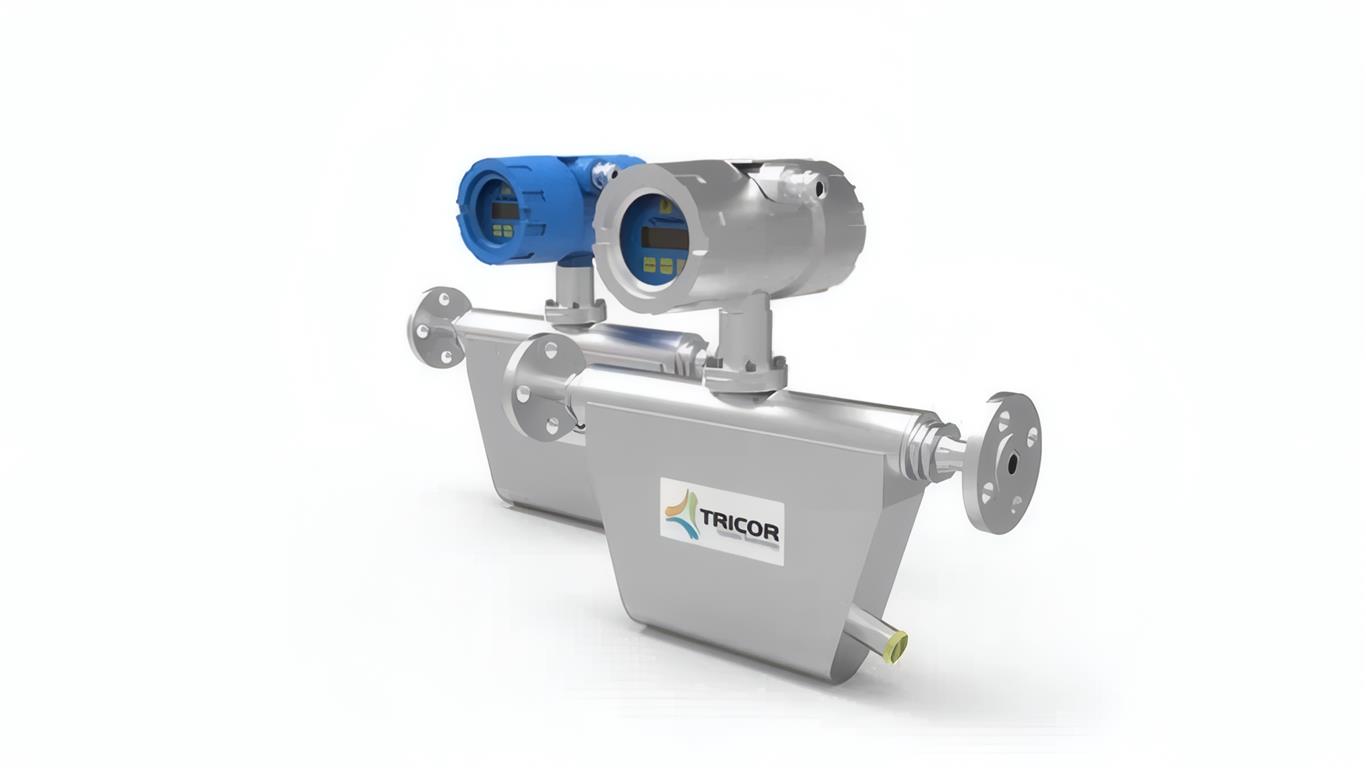

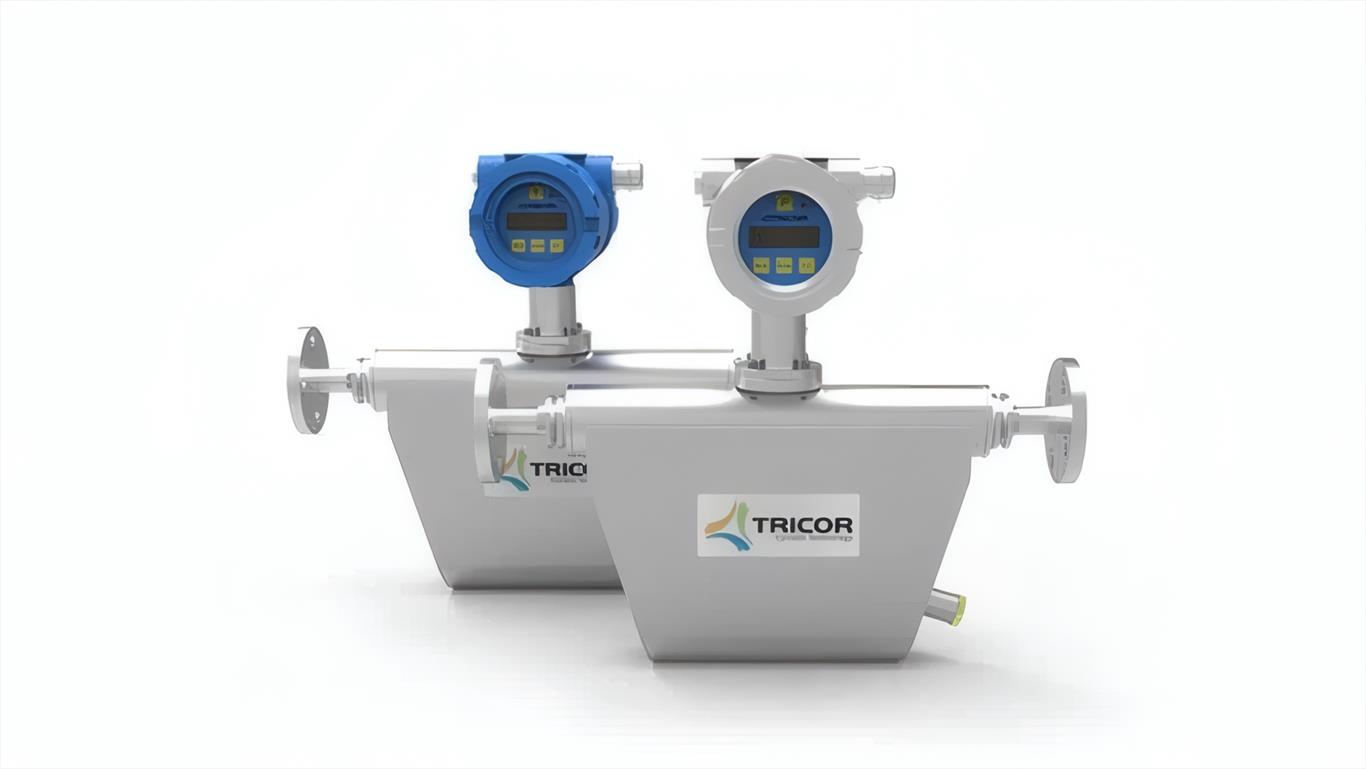

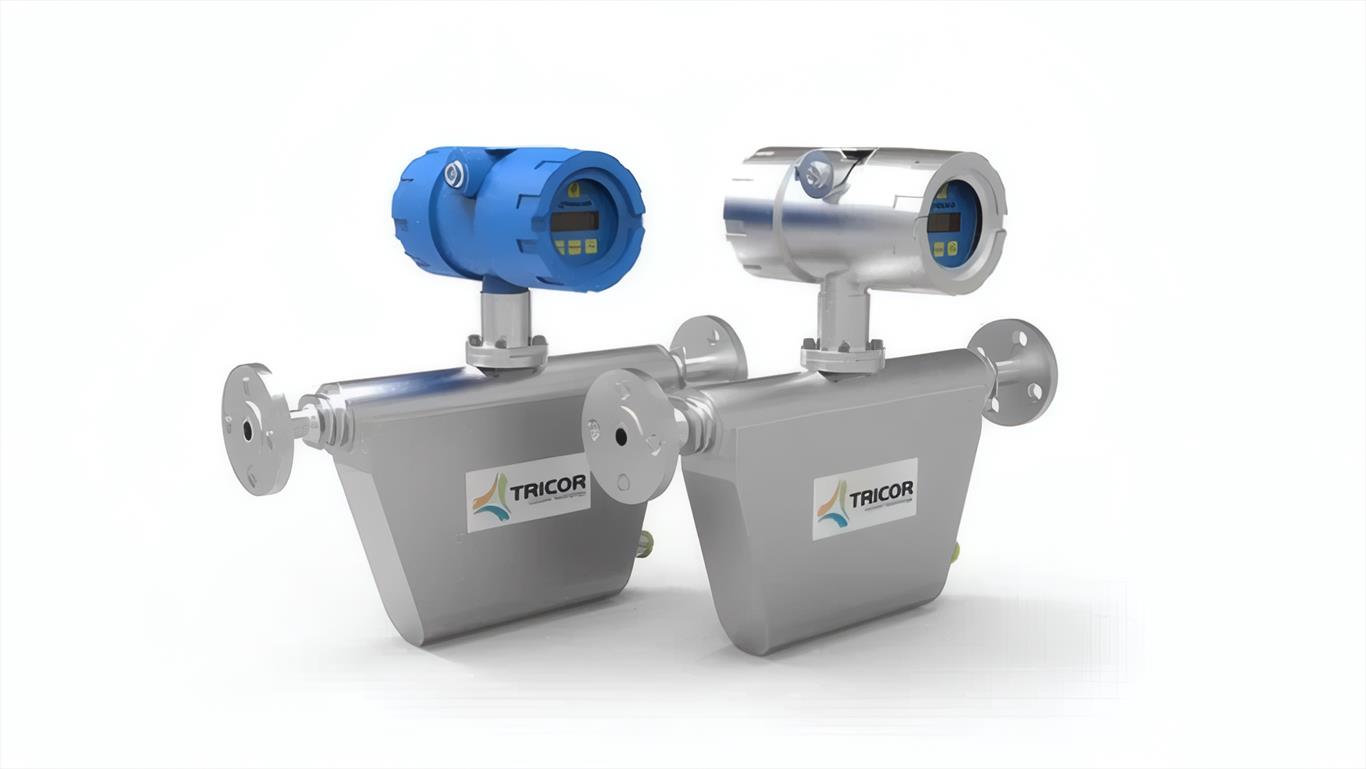

TCM 5500

CLASSIC Series

Coriolis

Coriolis mass flow meters for liquids and gases

5.500 kg/h [202 lb/min]
DN15 [1/2”]

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

The Coriolis CLASSIC Series TCM 3100 Coriolis Mass Flow Meter has a maximum mass flow rate of 3100 kg/hr (114 lb/min) or 468 bbl/day and nominal size of DN6 (1/4”), and is rated for process pressures up to 200 bar (2900 psi). Standard accuracy for the TCM 3100 is 0.1 %. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.

Features & Benefits

Robust, no moving parts for long life
Custom flow connectors & installation lengths
Excellent repeatability (±0.05 % of flow rate)
High pressure rating: 345 bar [5,000 psi]
Increased productivity, lower maintenance
Lower installation cost
Increased product quality
Broad applications: dosing, paint, chemical injection

Flow Rate	Mass Flow Rate (max.): 5,500 kg/h [202 lb/min] Volumetric Flow Rate (max.): 5,500 l/h [24.22 gpm, 830 oil bbl/d (US)] Nominal Meter Size: DN15 [1/2”]
Pressure Rating	345 bar [5,000 psi]
Accuracy (Liquids)	Basic Accuracy (Mass Flow): ±0.1 % of flow rate Repeatability (Mass Flow): ±0.05 % of flow rate Basic Accuracy (Volume Flow): ±0.15 % of flow rate Repeatability (Volume Flow): ±0.05 % of flow rate Zero Stability: ±0.01 % of full scale
Accuracy (Gases)	Basic Accuracy (Mass Flow): ±0.5 % of flow rate Repeatability (Mass Flow): ±0.25 % of flow rate
Density	Density Range: up to 2,500 kg/m³ [2.5 g/cm³] Density Accuracy: ±1.0 kg/m³[±0.001 g/cm³] Density Repeatability: ±0.5 kg/m³ [±0.0005 g/cm³]
Temperature	Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F] Option: -60 °C ... +200 °C [-76 °F ... +392 °F] Temperature Accuracy: ±1 °C ±0.5 % of reading [±1.8 °F ±0.5 % of reading] Temperature Repeatability: ±0.2 °C [±0.36 °F]
Materials (Wetted Parts)	Tubes: 1.4404 [AISI 316L] Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L] Brazing Alloy: BNi-2
