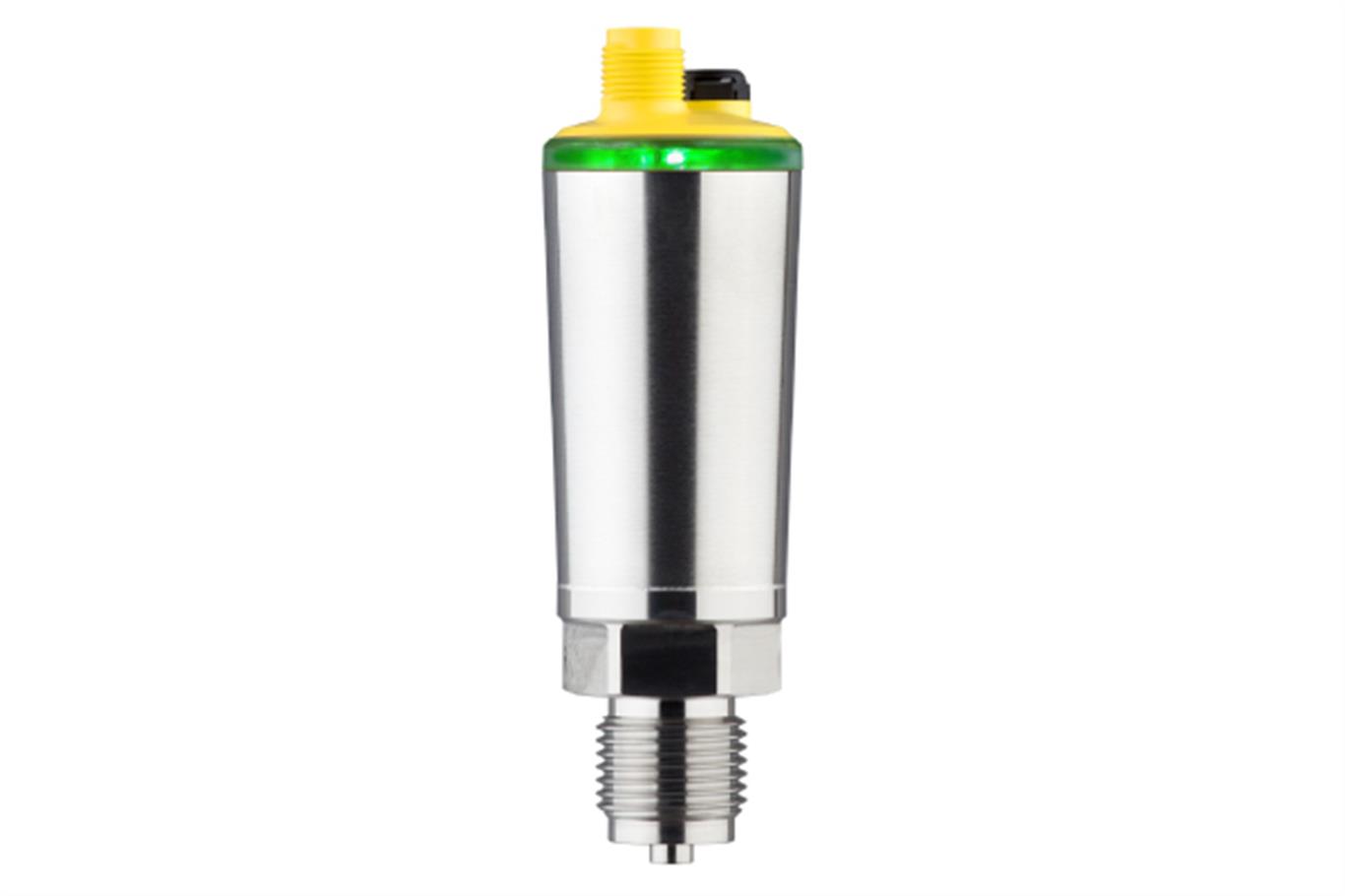

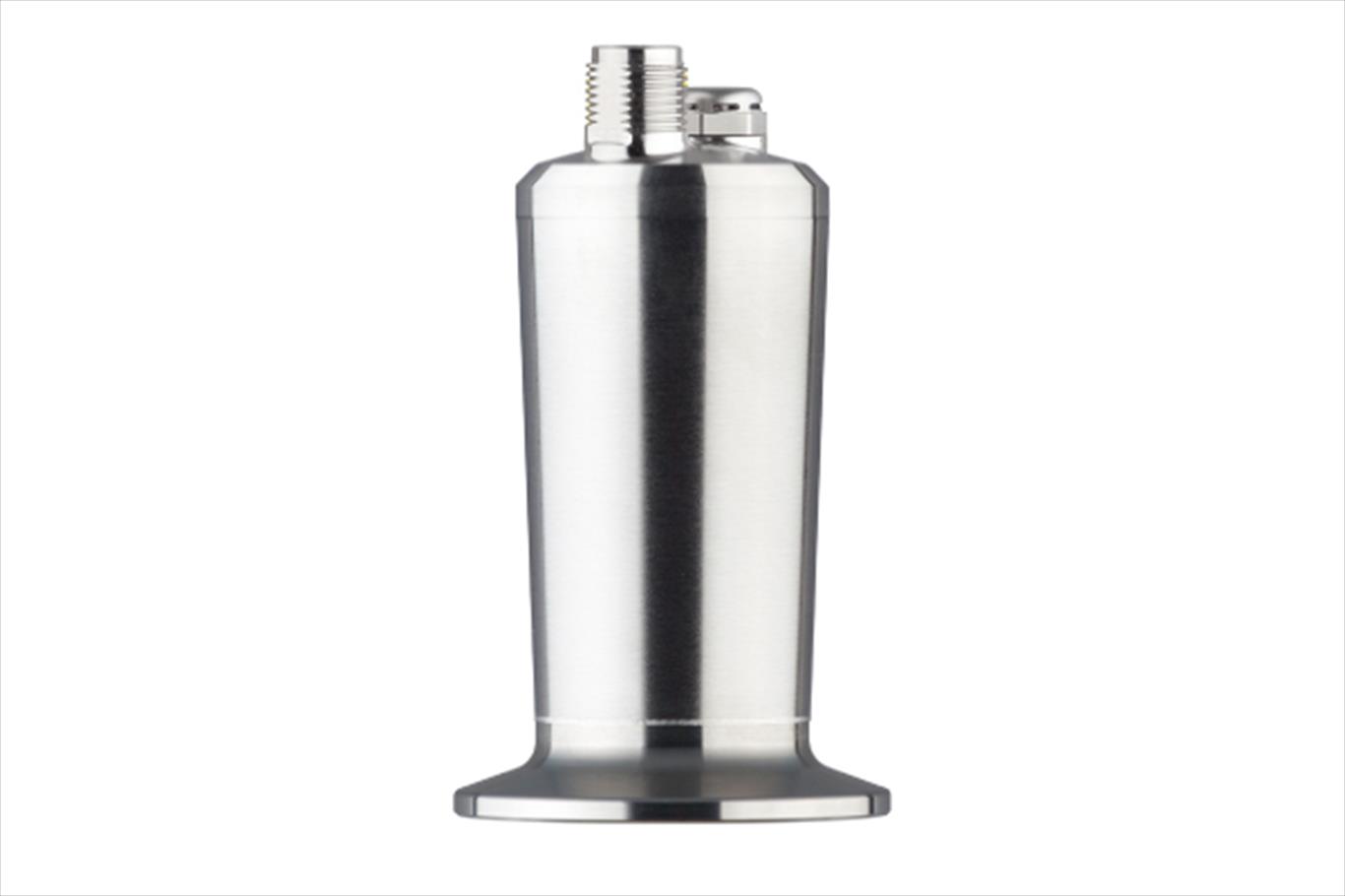

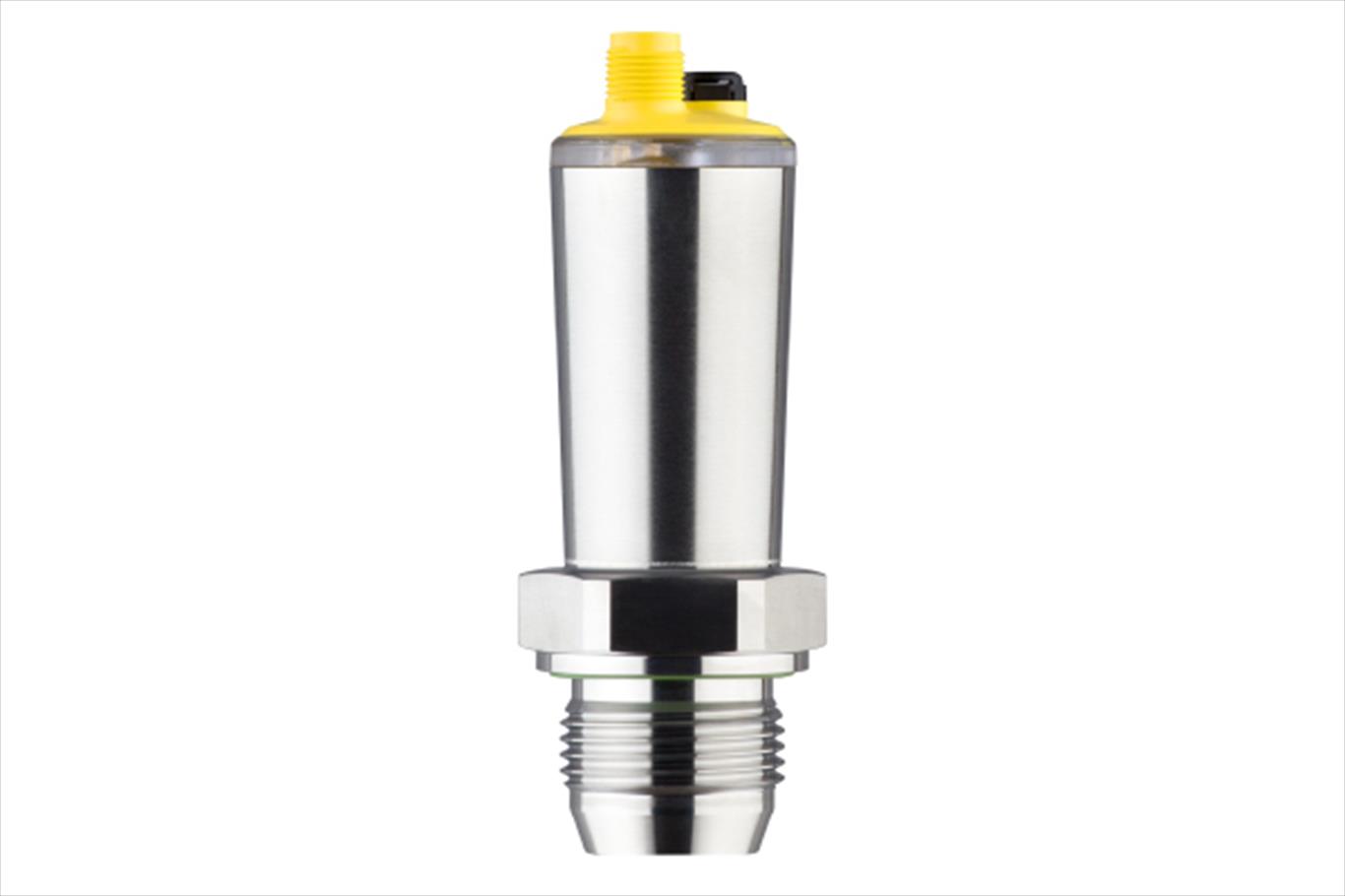

VEGABAR 28

Pressure sensor with switching function

With ceramic measuring cell

Request a quote

Introduction Application Technical specifications Documentation

Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display

VEGABAR 28 is a universal pressure transmitter with ceramic measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.

Your benefit

Convenient wireless setup and diagnostics with smartphone
Coloured 360° status display, adjustable
Easy integration into control systems through IO-Link communication

Other applications

Measuring range - Pressure	-1 ... 60 bar [Bar - kPa - psi]
Process temperature	-40 ... 130 °C [°C - °F]
Accuracy	0.3 %
Materials, wetted parts	PVDF Duplex (1.4462) Ceramic 316/316L
Threaded connection	≥ G¼, ≥ ¼ NPT
Hygenic fittings	Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25
Housing material	EPDM FKM FFKM
Protection rating	IP65 IP68 (0,5 bar)/IP69
Output	4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link
Ambient temperature	-40 ... 70 °C

Scope	ATEX / Europe CSA / Canada FM / USA IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCOE / India KTL Korea TIIS / Japan IA c-UL-us UKEX
Explosion protection	Intrinsic safety "i" Dust ignition protection "t" Increased safety "e"
Foodstuffs/Pharma	FDA Drinking water EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA
