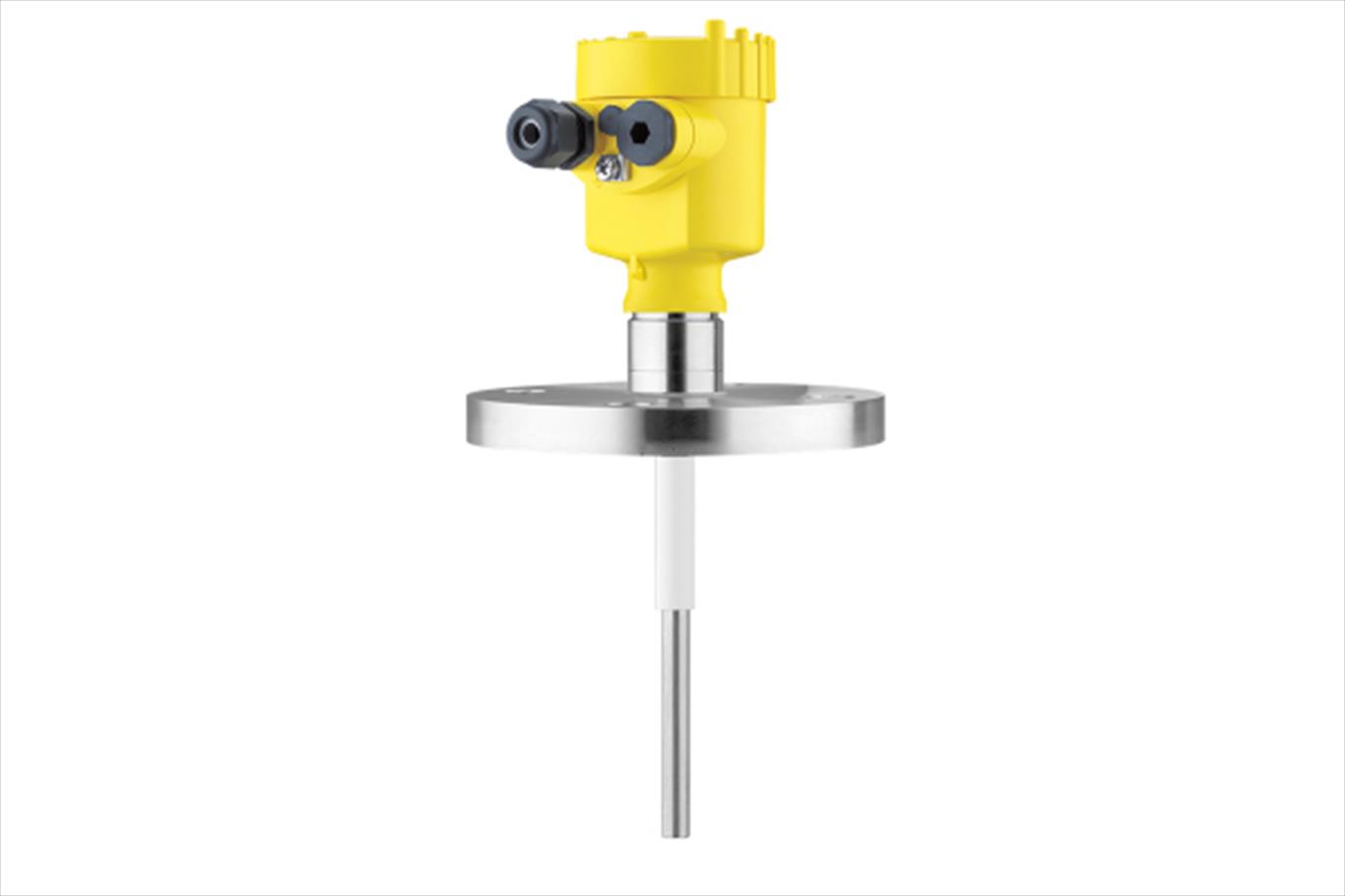

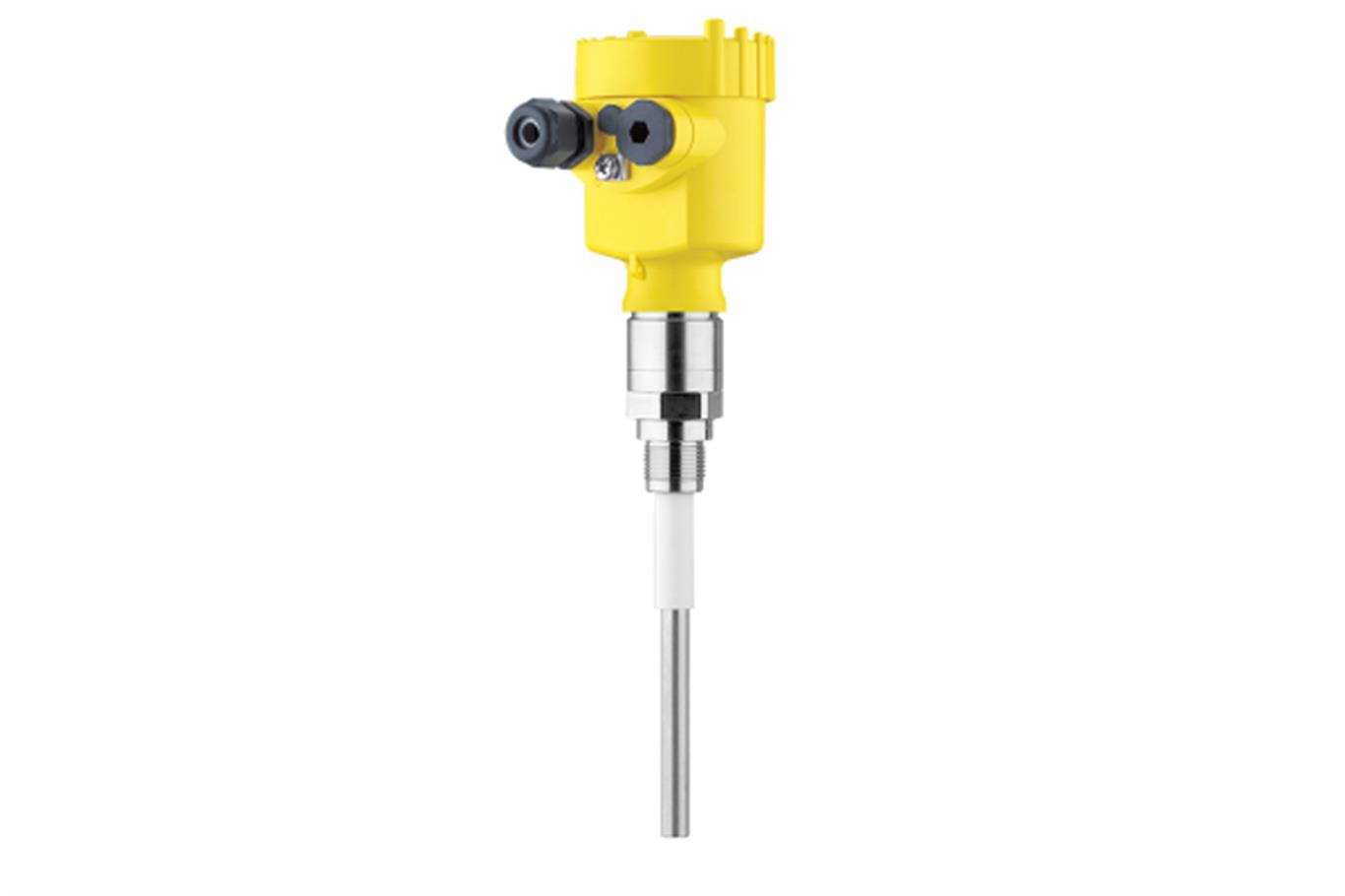

VEGACAL 62

Capacitive rod probe for continuous level measurement

Rod probe, partly PTFE insulated

Request a quote

Introduction Technical specifications Documentation

Application area

For measurement of bulk solids and non-conductive liquids such as oil. A full/empty adjustment is necessary for setup.

The VEGACAL 62 is a level sensor for continuous level measurement in all industries. The partly insulated probe is designed for measurement of bulk solids and can be also used in non-conductive liquids such as e.g. oil. The proven construction offers high functional safety.

Your benefit

High flexibility through shortenable probe
Long lifetime and low maintenance requirement through robust mechanical construction
Maximum utilization of the vessel because measurement over the complete probe length

Measuring range - Distance	6 m [Meter - Foot]
Process temperature	-50 ... 200 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Version	with screening tube PN1 with concentric tube Standard
Materials, wetted parts	PTFE 316L Alloy 400 (2.4360) PEEK Steel C22.8
Threaded connection	≥ G½, ≥ ½ NPT
Flange connection	≥ DN25, ≥ 1"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil
Explosion protection	Intrinsic safety "i" Dust ignition protection "t"
Foodstuffs/Pharma	FDA
Ship approval	ABS BV CCS DNV GL LR RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
