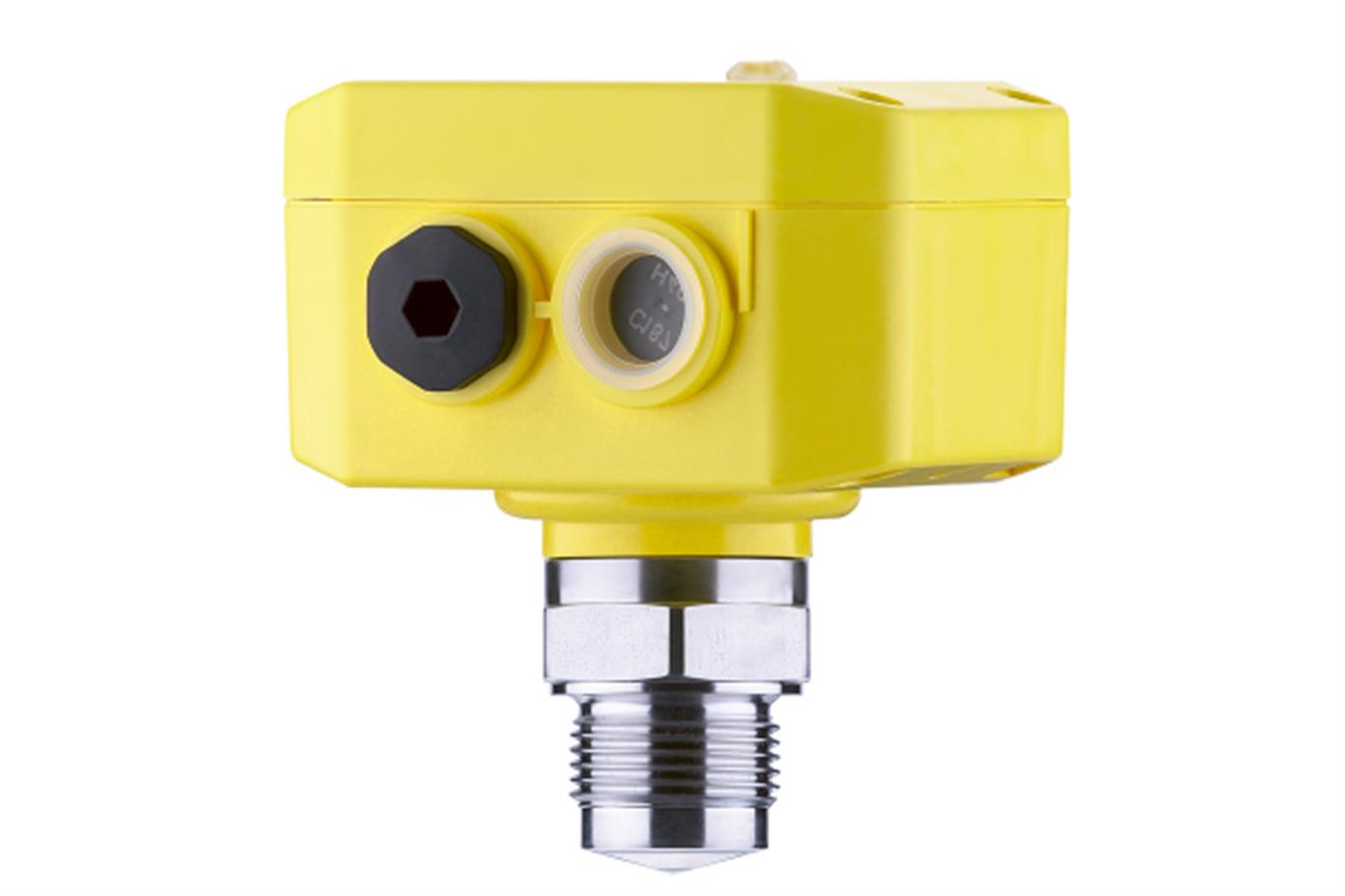

VEGAKON 61

Conductive limit switch for liquids for front-flush mounting

Compact level switch with partial PTFE insulation

Application area

For front-flush installation. The instrument is ideally suited as full or empty detector in pipelines.
The VEGAKON 61 is a condcutive limit switch for conductive liquids. The instrument is best suited as full and empty detector in pipelines.


Your benefit

  • Optimum cleanability through front-flush mounting
  • Maintenance-free operation through probe insensitive to buildup
  • Time and cost-saving setup without adjustment with medium

Measuring range - Distance
  • - m [Meter - Foot]
Process temperature
  • -40 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 25 bar [Bar - kPa - psi]
Version
  • Compact version
Materials, wetted parts
  • PTFE
  • 316L
Threaded connection
  • G1
Seal material
  • no media contact
Housing material
  • Plastic
Protection rating
  • IP66
Output
  • Relay (DPDT)
  • Transistor (NPN/PNP)
Ambient temperature
  • -40 ... 70 °C

Product catalog

Conductive

Product information

VEGAKON 61, VEGAKON 66, EL 1, 3, 4, 6, 8

Operating instructions

VEGAKON 61
Relay (DPDT)

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all dowloads
Related products
VEGAKON 66
VEGAKON 66

Conductive multiple rod limit switch for liquids

Multiple rod level switch with PP insulation

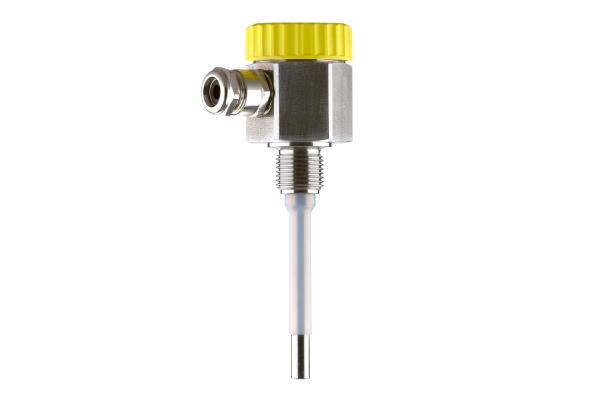

EL 1
