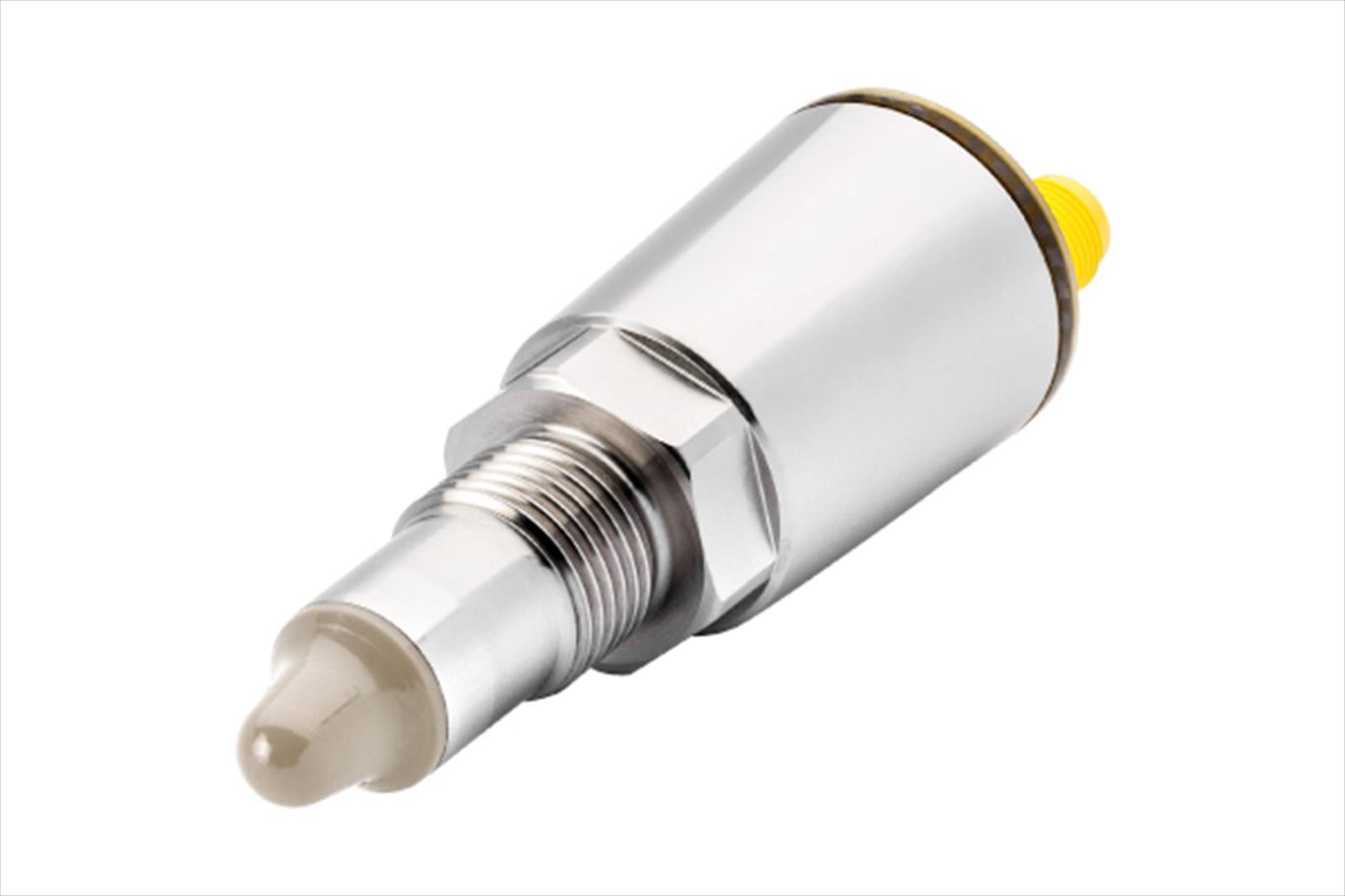

VEGAPOINT 21

Compact capacitive limit switch

For the detection of water-based liquids

Request a quote

Introduction Application Technical specifications Documentation

Application area

From DK > 1.5, from thread ½", universal connection G1" for hygiene adapter, M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals

VEGAPOINT 21 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. With IO-Link, it offers continuous digital data transmission.

Your benefit

Coloured 360° status display, adjustable
Easy integration into control systems through IO-Link communication
Low-cost limit switch with smallest installation dimensions

Other applications

Measuring range - Distance	- m [Meter - Foot]
Process temperature	-40 ... 115 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Materials, wetted parts	316L PEEK
Threaded connection	≥ G½, ≥ ½ NPT
Hygenic fittings	Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 - DIN 11851 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851
Seal material	EPDM FKM
Protection rating	IP66/IP67 IP69
Output	Transistor (NPN/PNP) IO-Link
Ambient temperature	-40 ... 70 °C

Scope	ATEX / Europe IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil KTL Korea CSA / USA and Canada CCC IA UKEX
Explosion protection	Dust ignition protection "t" Increased safety "e"
Foodstuffs/Pharma	3A EHEDG FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR RINA
Overfill protection	WHG VLAREM II
