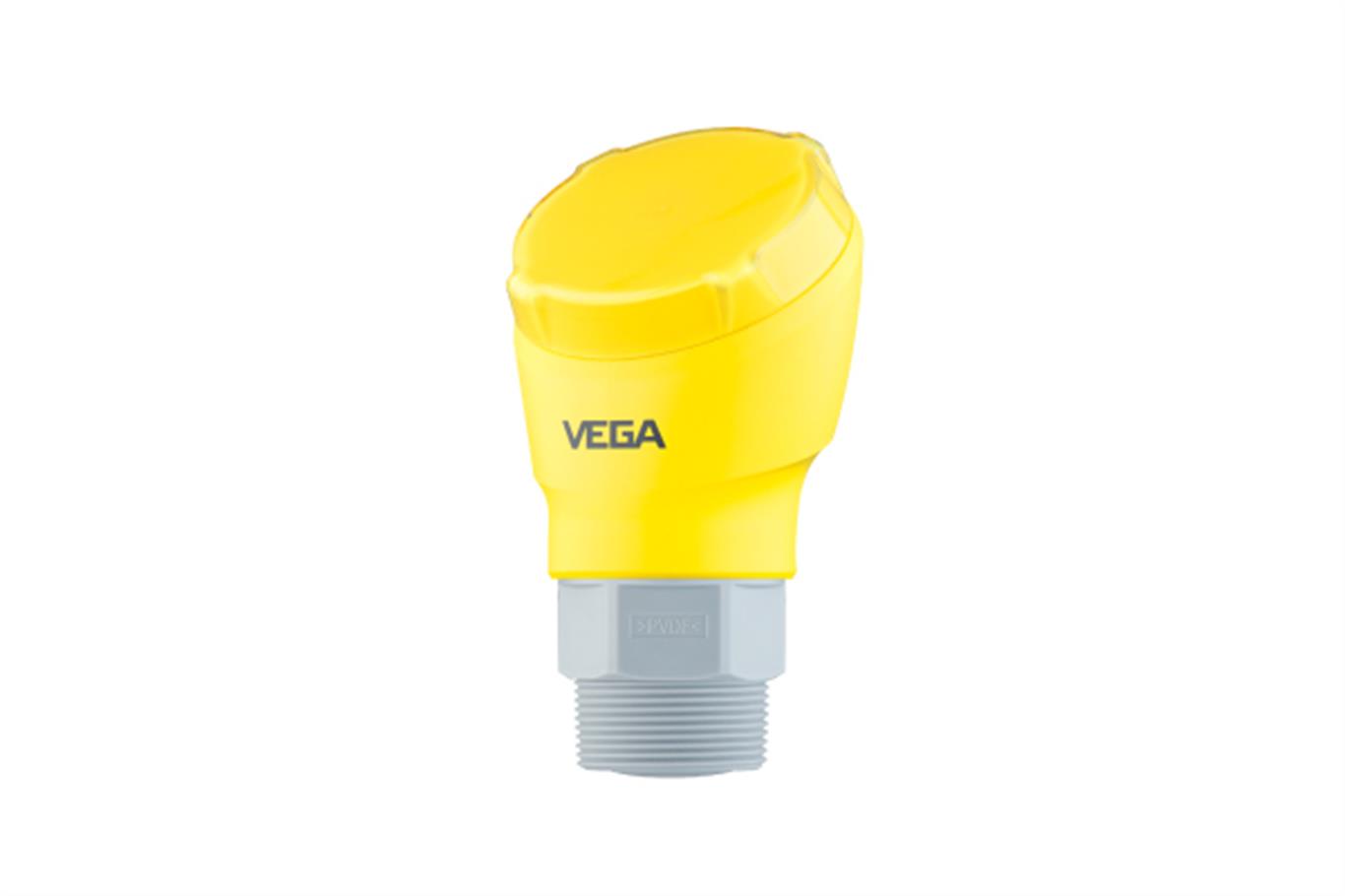

VEGAPULS 11

Compact radar sensor for continuous level measurement

For simple measuring tasks, plastic housing IP66/IP67, Type 4X

Introduction Application Technical specifications Documentation

Application area

4 ... 20 mA output, measuring range up to 10 m, accuracy ±5 mm

VEGAPULS 11 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

High plant availability through non-contact measurement
Exact measurement results independent of medium properties and process conditions
Maintenance-free operation due to non-contact 80 GHz radar technology

Other applications

Gravel bed filter

Differential pressure and level measurement in a gravel filter
To the application

Process water tank

Level measurement in the process water tank
To the application

Measuring range - Distance	10 m [Meter - Foot]
Process temperature	-40 ... 60 °C [°C - °F]
Process pressure	-1 ... 3 bar [Bar - kPa - psi]
Accuracy	± 5 mm / ± 0.2"
Frequency	80 GHz
Beam angle	8°
Materials, wetted parts	PVDF
Threaded connection	G1½, 1½ NPT, R1½
Seal material	FKM
Housing material	Plastic
Protection rating	IP66/IP67, Type 4X
Output	4 … 20 mA
Ambient temperature	-40 ... 60 °C
