VEGAPULS 42

Compact radar sensor for continuous level measurement

For simple to moderate measurement tasks in factory automation

Request a quote

Introduction Application Technical specifications Documentation

Application area

From ¾" thread, universal connection G1" for hygiene adapter, three-wire: IO-Link, PNP/NPN, 4 ... 20 mA (active), hygiene approval, coloured 360° status display

VEGAPULS 42 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple to moderate applications. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock-keeping and perfectly fulfils the requirements for hygienic processes in the food, beverage and pharmaceutical industries. With IO-Link, it offers continuous digital data transmission.

Your benefit

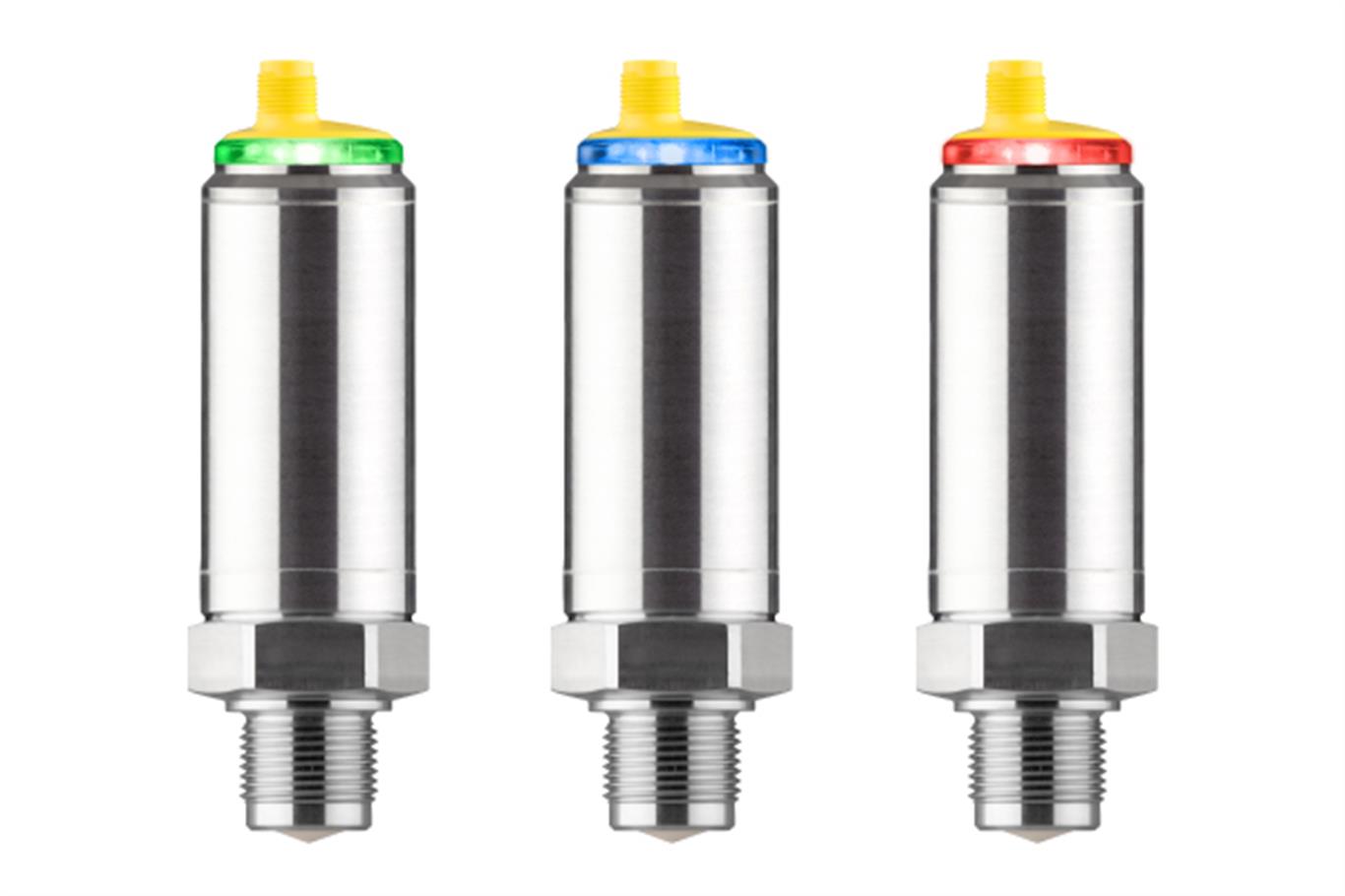

Coloured 360° status display, adjustable
Easy integration into control systems through IO-Link communication
Maintenance-free operation due to non-contact 80 GHz radar technology

Other applications

Measuring range - Distance	15 m [Meter - Foot]
Process temperature	-40 ... 130 °C [°C - °F]
Process pressure	-1 ... 16 bar [Bar - kPa - psi]
Accuracy	± 2 mm
Frequency	80 GHz
Beam angle	≥ 12°
Materials, wetted parts	PTFE 316L PEEK
Threaded connection	≥ G¾, ≥ ¾ NPT
Flange connection	≥ DN20, ≥ ¾" NPT

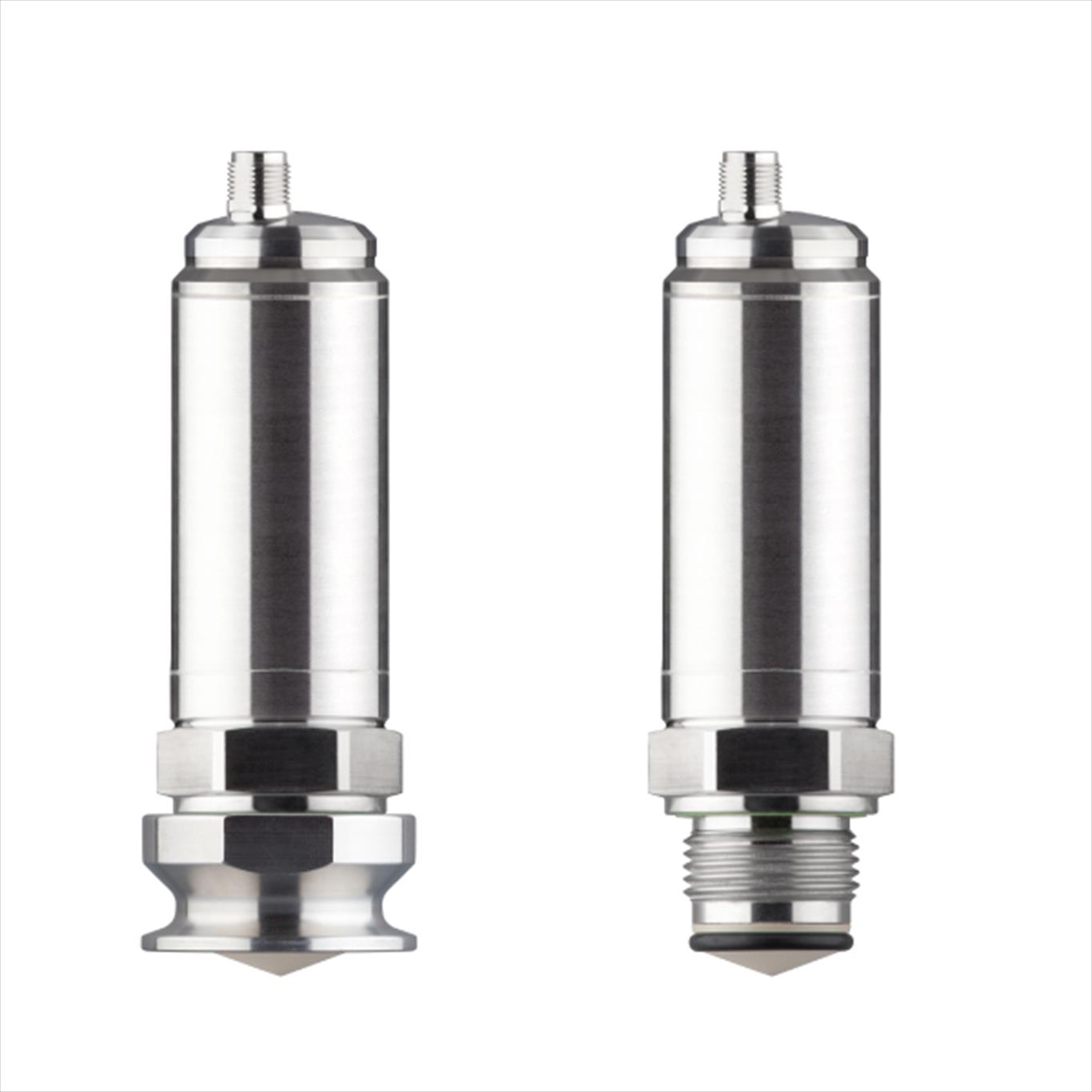

Hygenic fittings	Universal connection G1" for hygiene adapter
Seal material	EPDM FKM
Housing material	Plastic Stainless steel
Protection rating	IP66/IP67 IP66/IP67/IP69
Output	Three-wire (PNP/NPN, 4 … 20 mA) IO-Link
Ambient temperature	-40 ... 70 °C

Foodstuffs/Pharma

3A
EHEDG
FDA

Adjustment	Smartphone / Tablet / PC via Bluetooth PC, PACTware and DTM, IODD

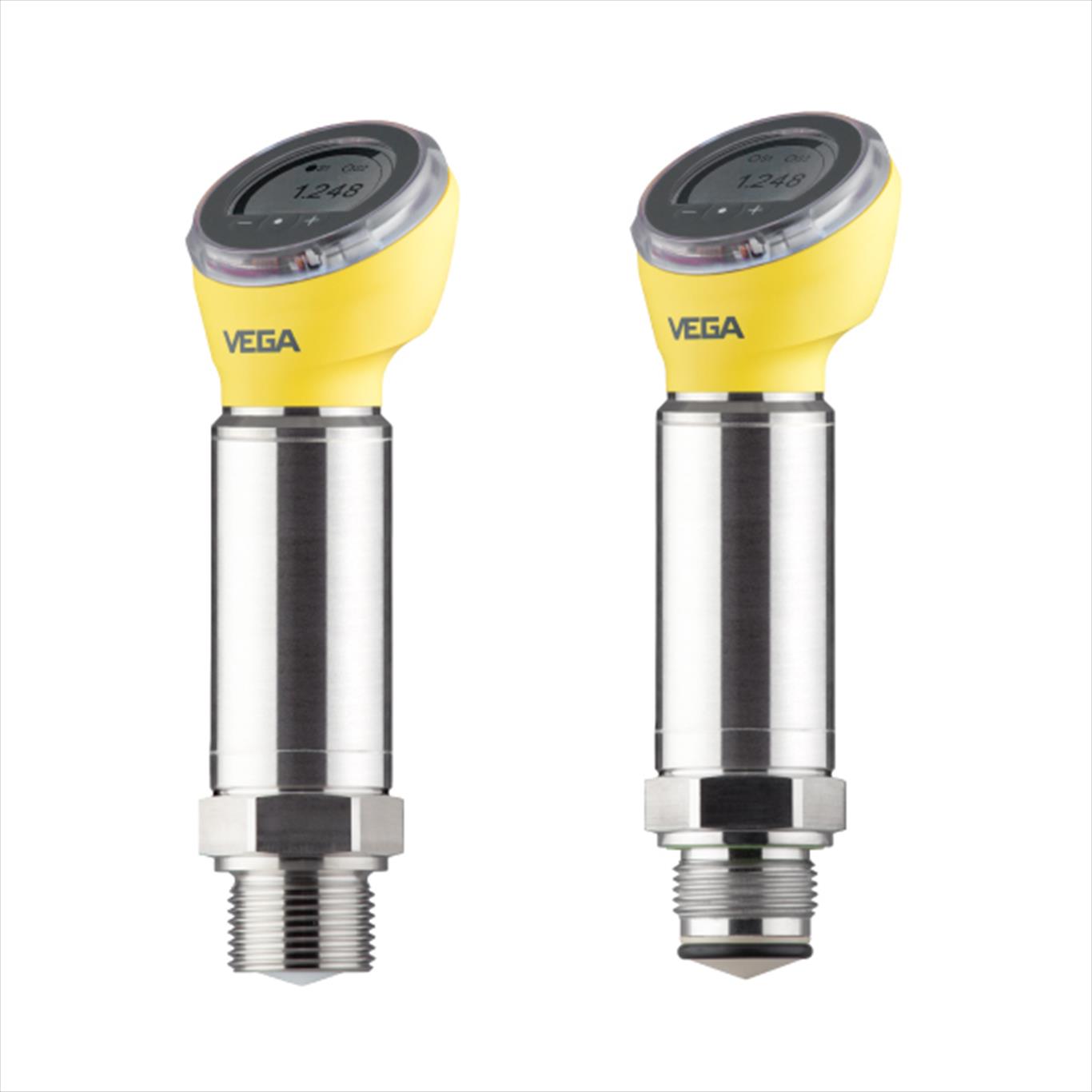

Indication	Graphic-capable clear text indication with background lighting 360° status display
